Veeder-Root TLS-4 Series Console Hardware Replacement

Replacing the Power Supply (P/N 330020-623) Before Turning Off Power
10
5. Remove the three #8 taptite screws in the AC Input module (item 1 in Figure 7).
6. Lift the Power Supply shield up to disengage the two retention snap pins in its right side flange and remove it
from the console (item 2 in Figure 7).
7. Grasp the AC Input module handle (see item 3 in Figure 7) and slowly pull up and away from the power
supply until the AC Input module disconnects from the power supply. Lift the AC Input module out of the
console.

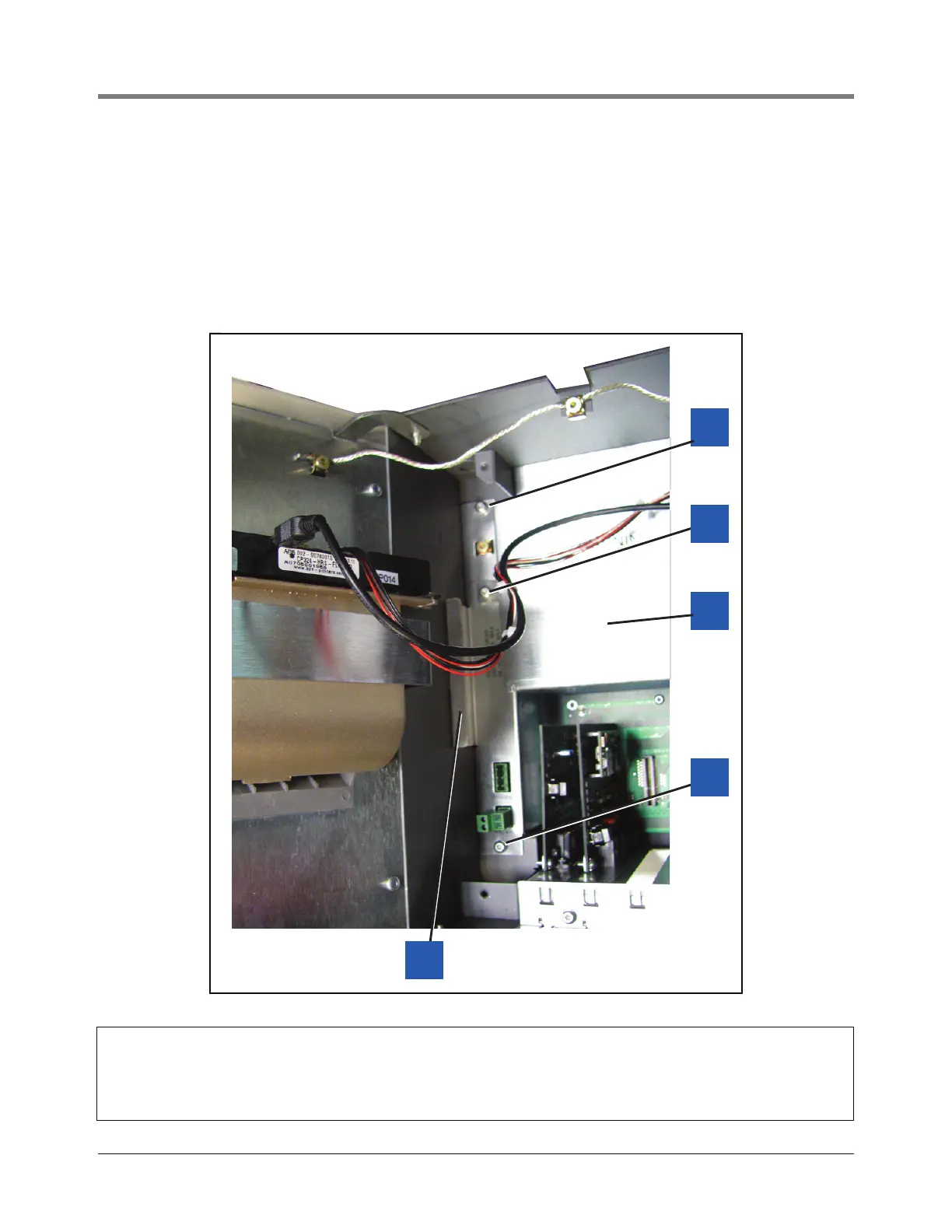

Figure 7. Removing AC Input module
Legend for numbered boxes in Figure 7
956-5.eps
1
3
1
1
2
1. #8 taptite screws (the middle one also secures the Power
Supply shield)
2. Power Supply shield
3. AC Input module handle
