3 Product description
VEGAMET 861 • 4 … 20 mA/HART
58866-EN-200401
2
3
5
4
1

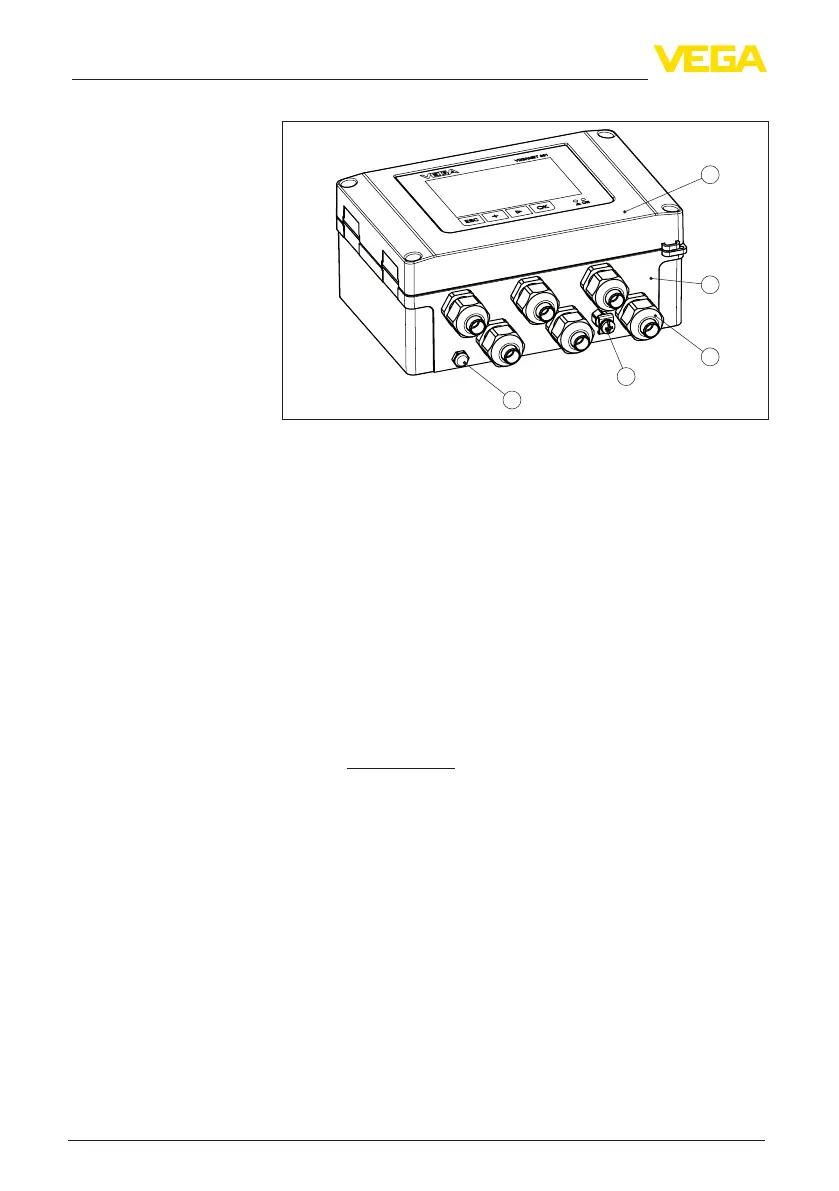

Fig. 1: VEGAMET 861
1 Display and adjustment unit
2 Housing with cable glands and connection compartment
3 Mounting plate
4 Ventilation/pressure compensation
5 Ground terminal for cable screening
Thetypelabelcontainsthemostimportantdataforidenticationand
use of the instrument:
•
Instrument type
•
Information about approvals
•
Technical data
•
Serial number of the instrument
•
QR code for device documentation
•
Number code for Bluetooth access
•
Manufacturer information
Move to "www.vega.com"andenterinthesearcheldtheserial
number of your instrument.
Thereyoucanndthefollowinginformationabouttheinstrument:
•
Order data
•
Documentation
•
Software
Alternatively,youcanndallviayoursmartphone:
•
Scan the QR-code on the type label of the device or
•
Enter serial number manually in the VEGA Tools app (available
free of charge in the respective stores)
3.2 Principle of operation
Measured value visualisation, limit value monitoring for storage tanks
andpumpingstations,owmeasurementatopenchannelsand
weirs,stormwateroverowbasin.
Constituent parts
Type label
Documents and software
Application area
