5.2 Connections

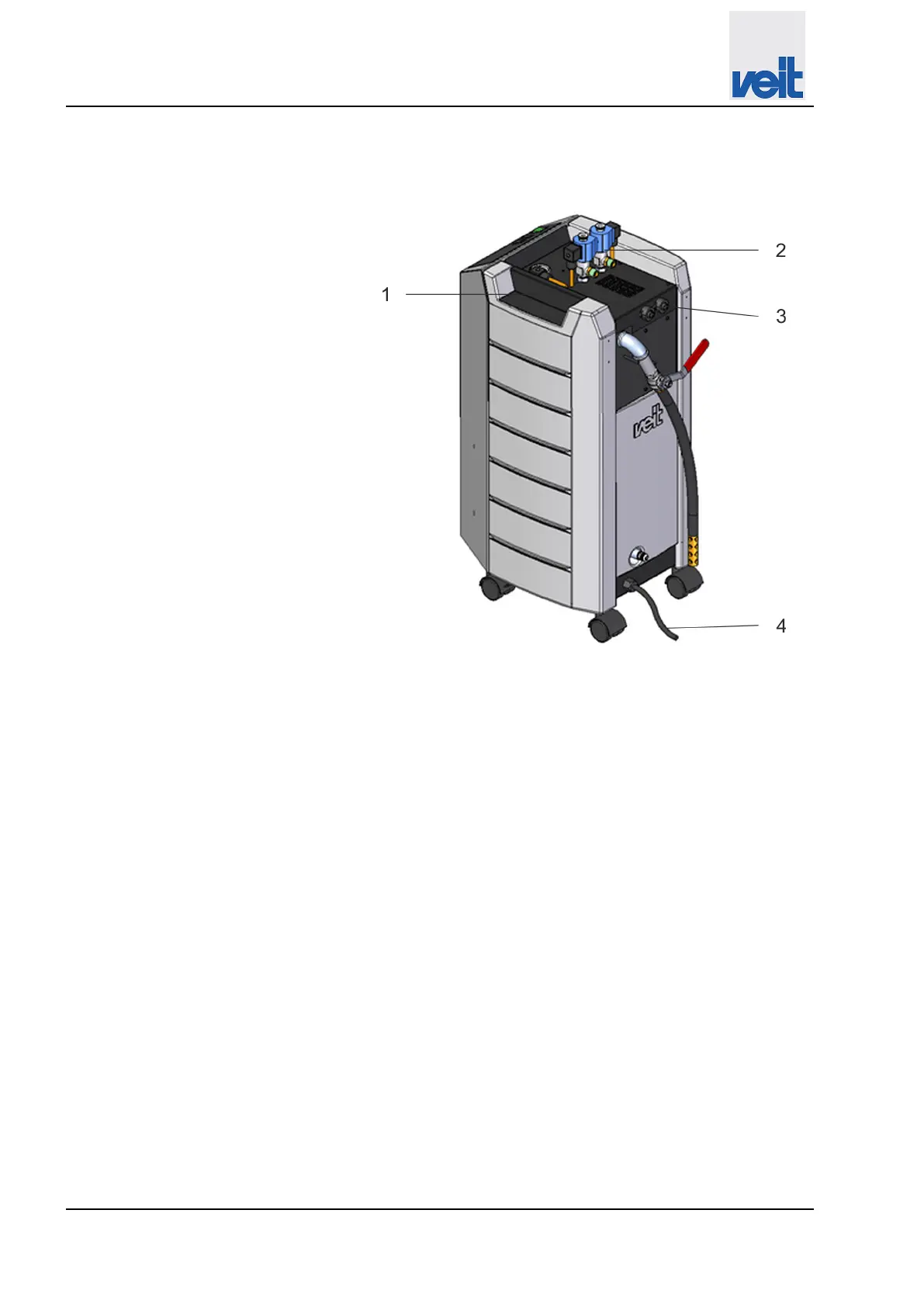

Fig. 9: Connections
1 Water filling opening
2 Steam connection for iron
3 Special small socket for iron
4 Power cable
Connect the iron steam hoses with screw connections (3/8’’) at the
outputs of steam connection of iron (2). Connect the special small
connector of the HD steam iron to special small socket of iron (3).
Electrically heated irons
Installation
Connections
30.09.2022
