Veit SG67 - Maintenance of the Feedwater Tank; Emptying the Feedwater Tank

8.5 Maintenance of the feedwater tank
8.5.1 Emptying the feedwater tank

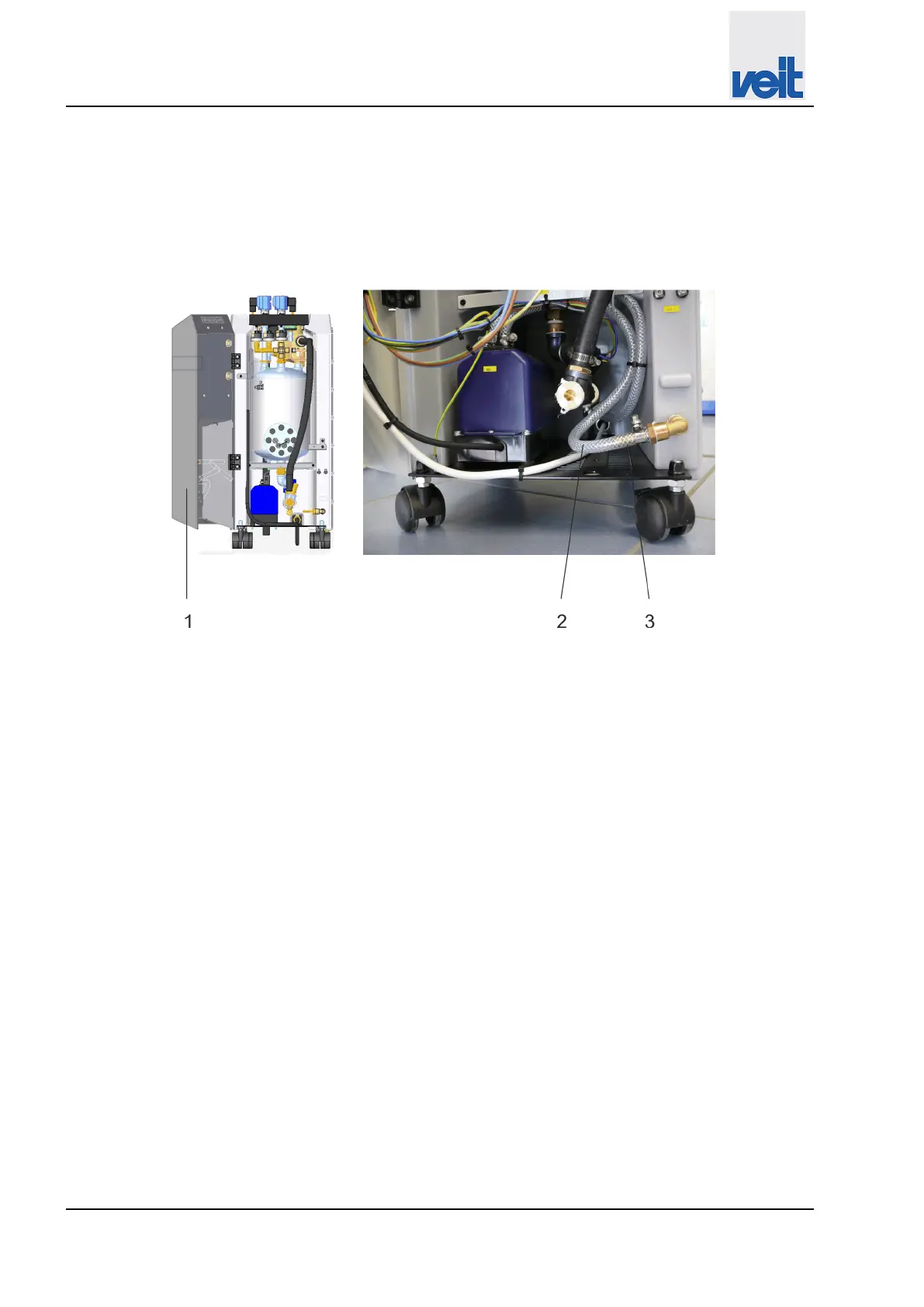

Fig. 15: Emptying the feedwater tank
1 Door
2 Hose
3 Hose nozzle
To empty the feedwater tank, proceed as follows:
n Open the door (1).
n Place a suitable container below the hose nozzle (3) of the
feedwater tank.
n Remove the hose (2).
n Allow the feedwater tank to be emptied.
n Tilt the steam generator to also drain the feedwater from the
opposite chamber.
n If the feedwater tank is empty replace the hose (2) on the hose
nozzle (3).
n Close and lock the door (1).
Maintenance and cleaning
Maintenance of the feedwater tank > Emptying the feedwater tank
30.09.2022
Steam generator VEIT SG67
50
