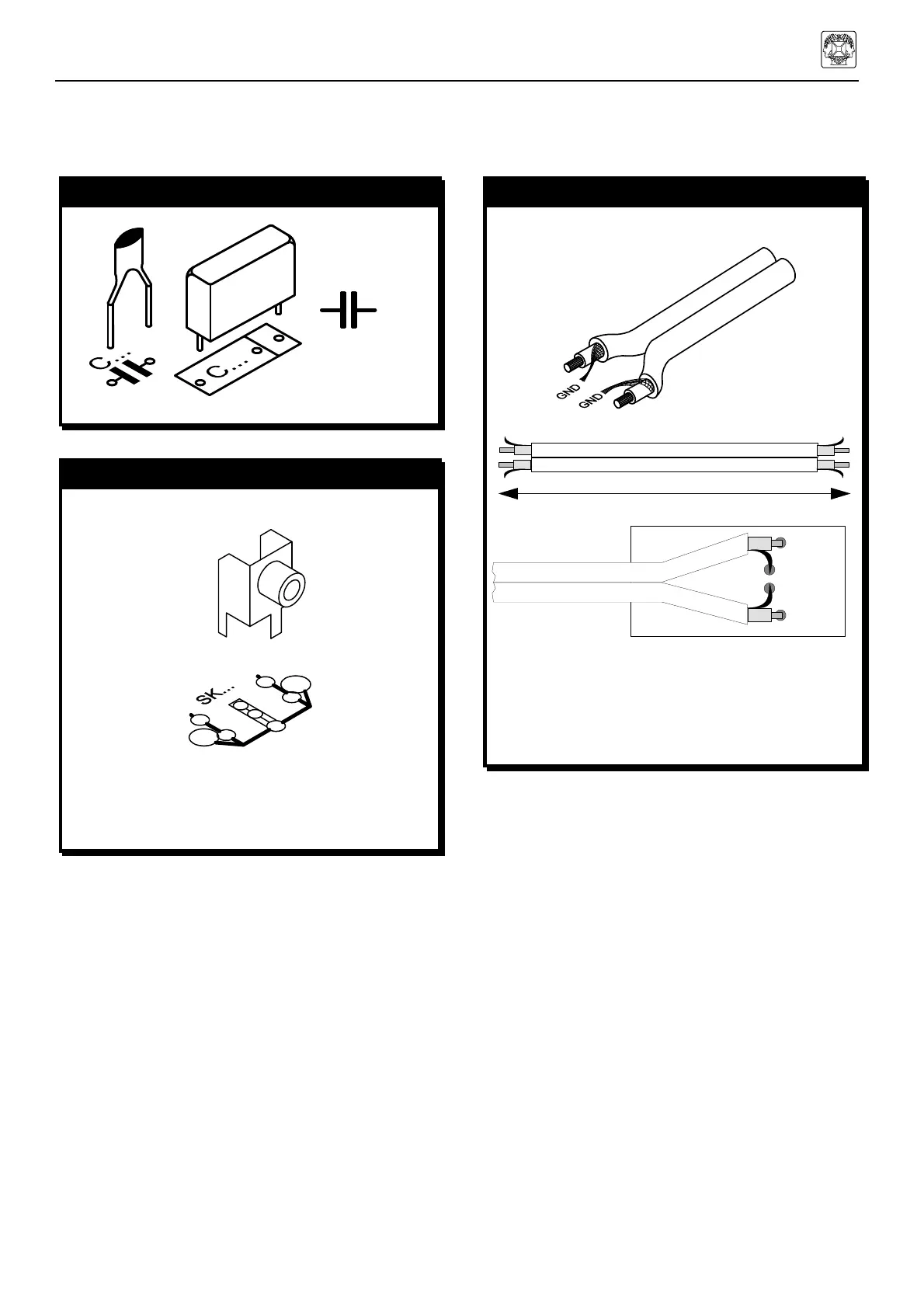

Assembly of the small input PCB P4040i:
This PCB is used to connect the input signal (via two RCA sockets) via two holes at the rear of the cabi-
net.
1. CAPACITORS
C...
q C1: 47nF (473, 0.047)
2. CINCH / RCA CONNECTOR
Mount them as straight and square as possible
against the PCB
q SK1: CINCH
q SK2: CINCH
3. SHIELDED WIRE CONNECTION
Carefully strip the screened cable supplied and
make the connection as shown in the figure
15cm
LEFT
RIGHT
GND
GND
P4040i
q L
q R
q GND
q GND
