*The pictures may differ depending on the type of PersonalScope
24
TROUBLESHOOTING
The screen remains blank or there is no signal:
• No power supply
• Batteries are discharged
• Contrast adjustment is incorrect
• Press RESET for at least 10 seconds
REMARK: Temporarily remove both batteries and adapter in case RESET is not helping.
RMS readout is incorrect:
• Make sure that at least 1 and preferably even 2 periods are displayed.
• The batteries are discharged.
No signal on the oscilloscope display:
• Time/div setting is in the wrong position. Try 1ms or choose auto-setup mode.
• The unit is in the Hold position
• Trigger function is set in the “once” position
• The programmed trigger level is not reached (choose “run” mode)
• Y position is wrong or need calibration, see page 11
• The input signal is too high, change the volt/div. setting or choose auto-setup.
Incorrect frequency readout:
• An incorrect time/div. setting has been chosen. (start at 250ns/div)
Voltage readout does not correspond with the actual value:
• The measuring probe is in the X10 position
• The batteries are discharged
• The zero reference is not set correctly for DC measurements.

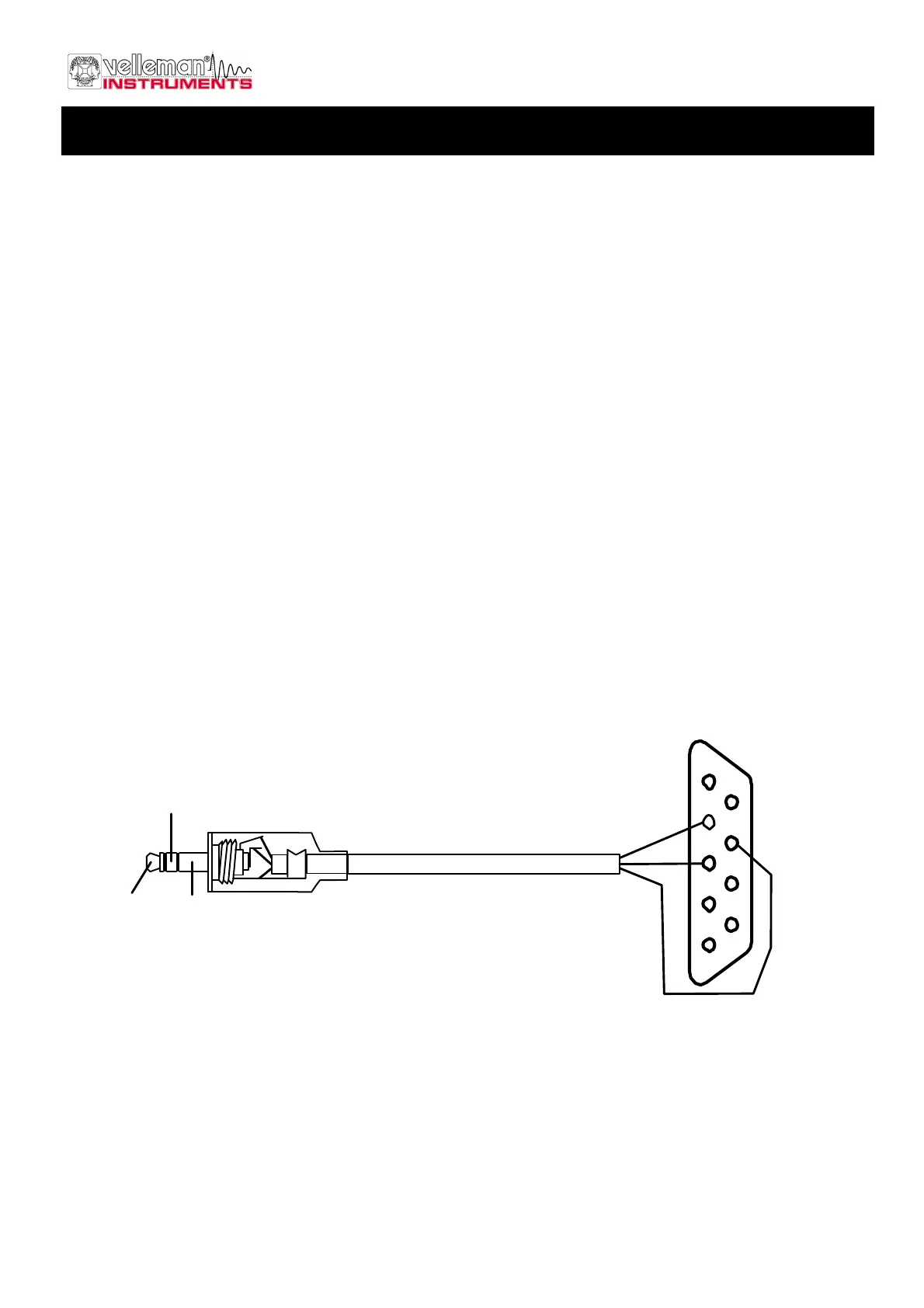

RS232 Cable (Only for HPS40) :
3,5mm STEREO PLUG 9P SUB-D FEMALE
2
2
7
7
3
3
