4. Setting upROBOT HP7C / HP10C / HP15C / HP17C
4-3© VEMAG 2004
4.3 Fitting the double screws
• Position the double screws (1) so that the screw marked left (”links”) is
on the left-hand side and the front faces are flush.
• Bring the slots of coupling claws (2) into the correct position in relation
to the coupling pins in the feed cylinder by turning the double screws in
opposite directions.
• Push double screws (1) into double screw housing (2) up to the stop.
The double screws are properly engaged if the end faces of the double
screws and housing are flush.
1
2
1 Double screws
2 Slots

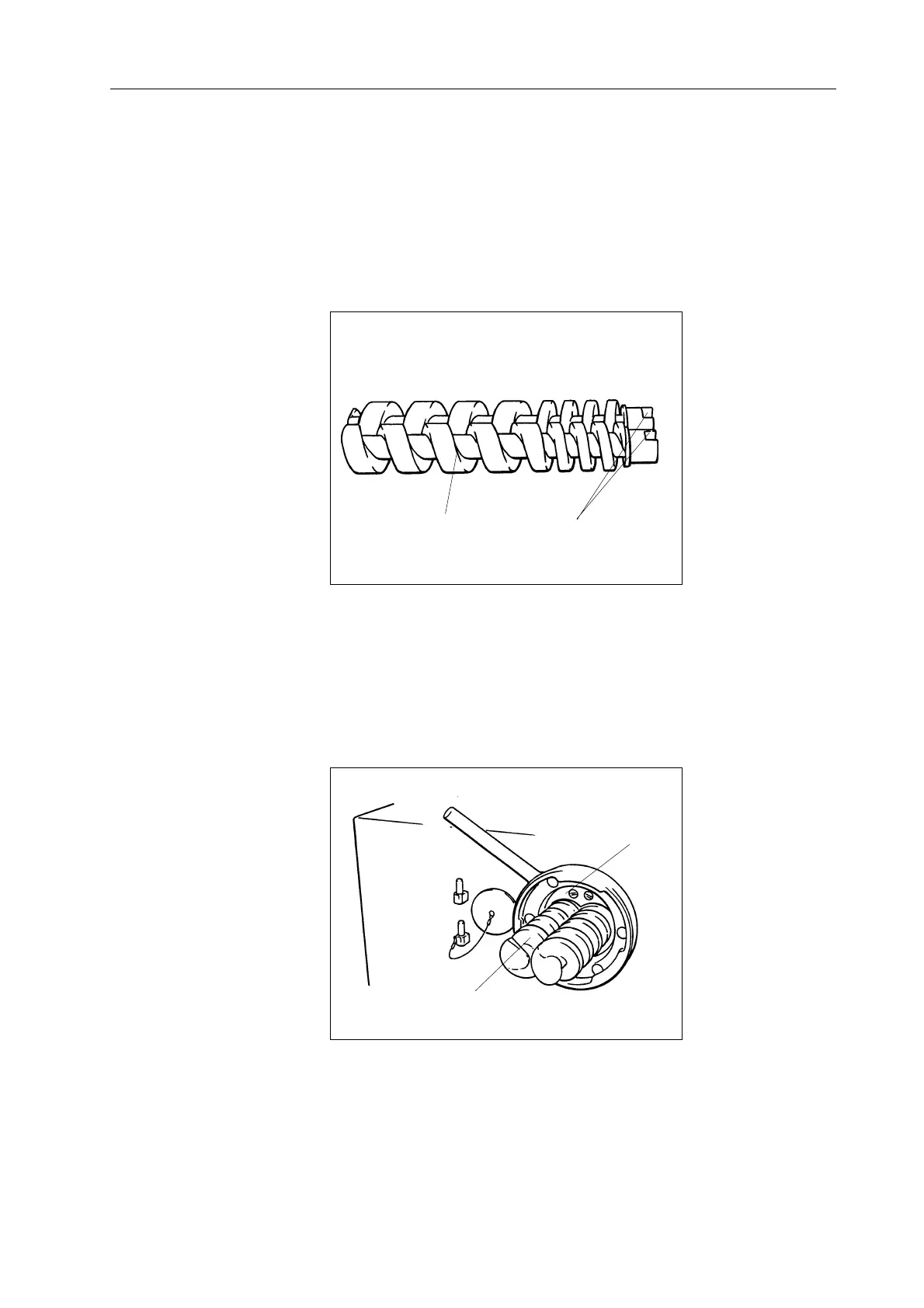

Fig. 4-4
Lining up the double
screws
1
1 Double screws
2 Double screw housing
Fig. 4-5
Installation of double
screws
2
