VEMAG ROBOT HP7C - Fitting the Filling Horn

4. Setting up ROBOT HP7C / HP10C / HP15C / HP17C
4-4 © VEMAG 2004
4.4 Fitting the filling horn
• Adjust locking nut (1) so that the handle is between the 10 and
11 o’clock position and insert filling horn holder (2).
• Turn locknut (1) clockwise to lock the filling horn holder. The handle
should now be approximately vertical.
• Select a filling horn with the largest possible diameter related to the
size of the casing.
• Use the filling horn nut (2) on the filling horn holder (3) to attach the
filling horn (1). Use the appropriate universal spanner (4).
1
2
1 Locking nut
2 Filling horn holder

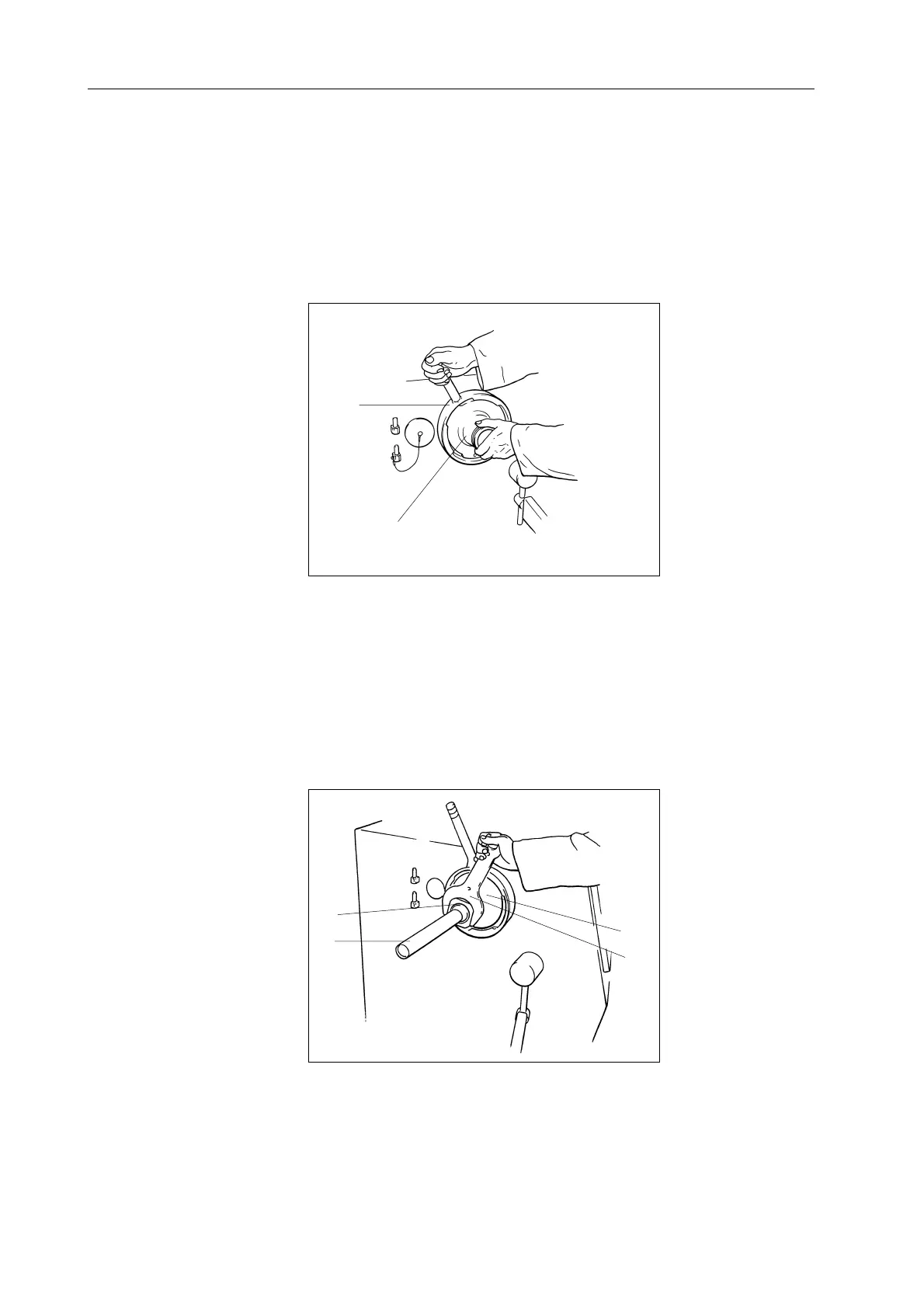

Fig. 4-6
Locking the filling horn
holder
3
1
2
1 Filling horn
2 Filling horn nut
3 Filling horn holder
4 Universal spanner
Fig. 4-7
Fitting the filling horn
4
