4. Setting up ROBOT HP7C / HP10C / HP15C / HP17C
4-6 © VEMAG 2004
4.6 Fitting the linking horn (optional)
• Use a linking horn with the largest possible diameter and shortest
possible length related to the size of the casing.
• Fit lip seal (1) in linking horn (2) so that the lug of the lip seal is pointing
forwards.
• Grease the seal of the linking horn before fitting it to prevent friction
problems.
1 Lip seal
2 Linking horn

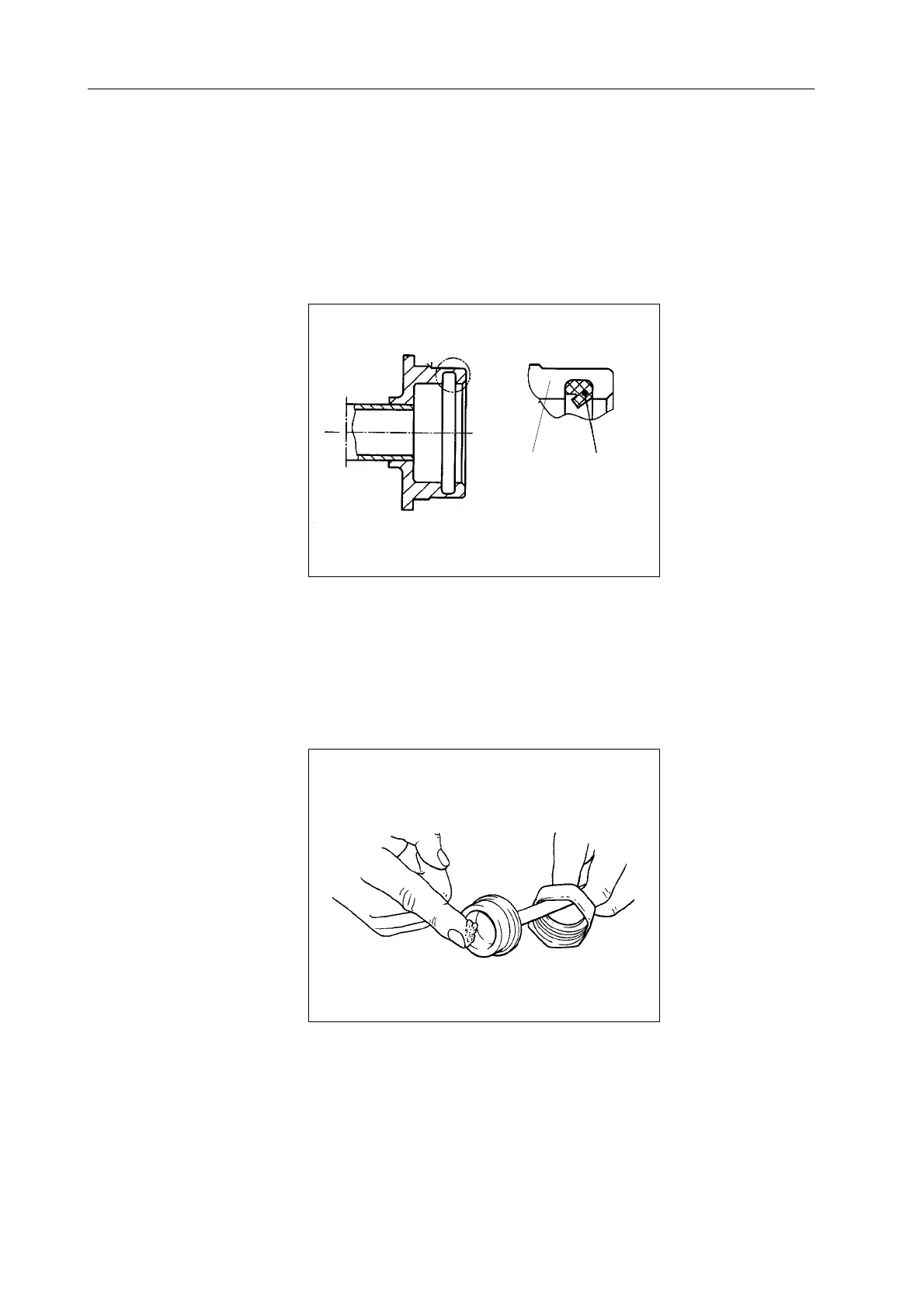

Fig. 4-10
Fitting the lip seal
12
Fig. 4-11
Greasing the linking horn
