4. Setting upROBOT HP7C / HP10C / HP15C / HP17C
4-7© VEMAG 2004
1 Linking horn
2 Linking head
3 Linking nut
4 Universal spanner

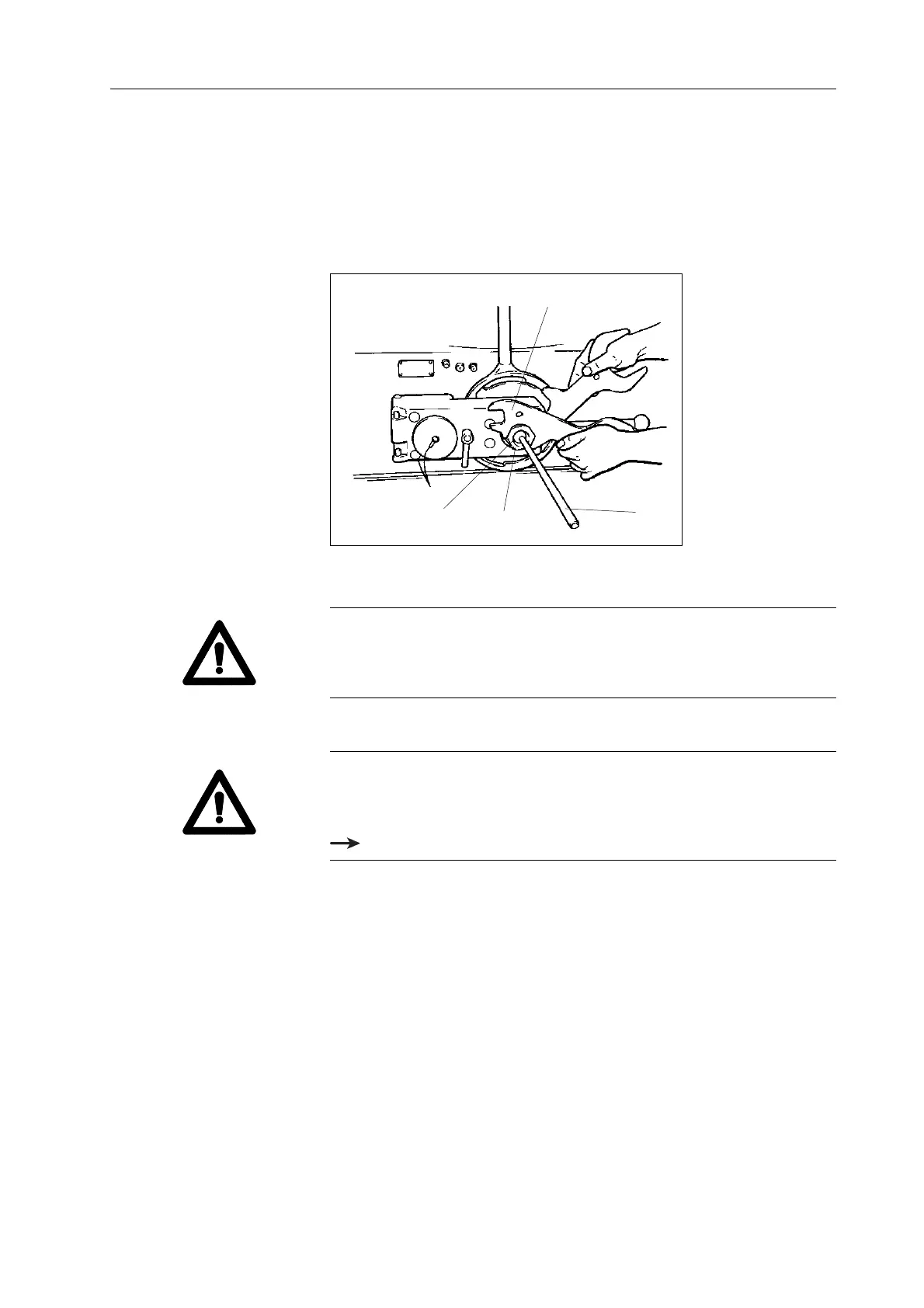

Fig. 4-12
Fitting the linking horn
3
2
1
4
• Insert linking horn (1) into linking head (2) and tighten linking nut (3)
using universal spanner (4). Hold the linking head steady with the
second universal spanner as you do so.
Warning!
The linking head has a left-hand thread.
• To tighten: turn anti-clockwise
• To loosen: turn clockwise
Warning!
When processing very fine product (e.g. cooked sausage meat) a filler
cone can be inserted in the linking gear to optimise the particle definition
of the end-product.
Linking gear spare parts catalogue
