VEMAG ROBOT HP7C - Adjusting the Knee Lever

4. Setting up ROBOT HP7C / HP10C / HP15C / HP17C
4-10 © VEMAG 2004
4.9 Adjusting the knee lever
The knee lever can be adjusted in terms of height (H), angle (W) and
projection (A) to suit the height and location of the operator.
• Undo the hexagonal nut (1) using the universal spanner (2).
• Adjust the knee lever to the desired height (H) and angle (W).
• Tighten up the hexagonal nut again.
• Move the knee lever plate (3) along the lever shaft until the desired
projection (A) is reached. The plate can be taken off the lever shaft
altogether if required.
H
1
1 Hexagonal nut
2 Universal spanner
3 Knee lever plate

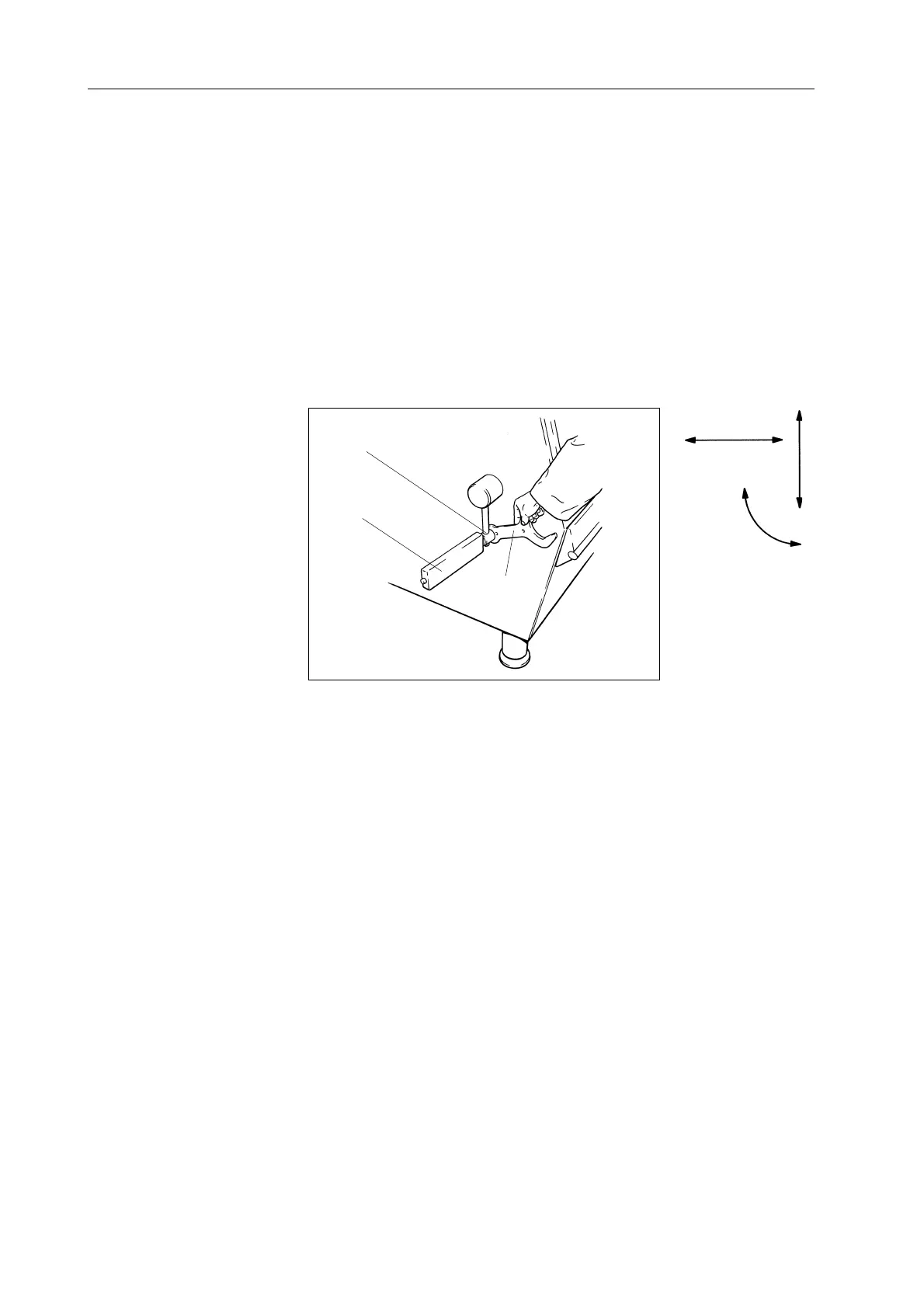

Fig. 4-15
Adjusting the knee lever
W
A
3
2
