6. Cleaning ROBOT HP7C / HP10C / HP15C / HP17C
6-4 © VEMAG 2004
• Twist the spindle in far enough for the extraction device to catch and
pull the double screw housing a little way out of the feed cylinder.
• Push down the catch in the inlet bore (1) and pull the extraction device
(2) out of the double screw housing (3).
Warning!
Proceed carefully when removing the extraction device and be sure to
hold the double screw housing/relevant part of the housing steady with the
other hand to avoid dropping it.

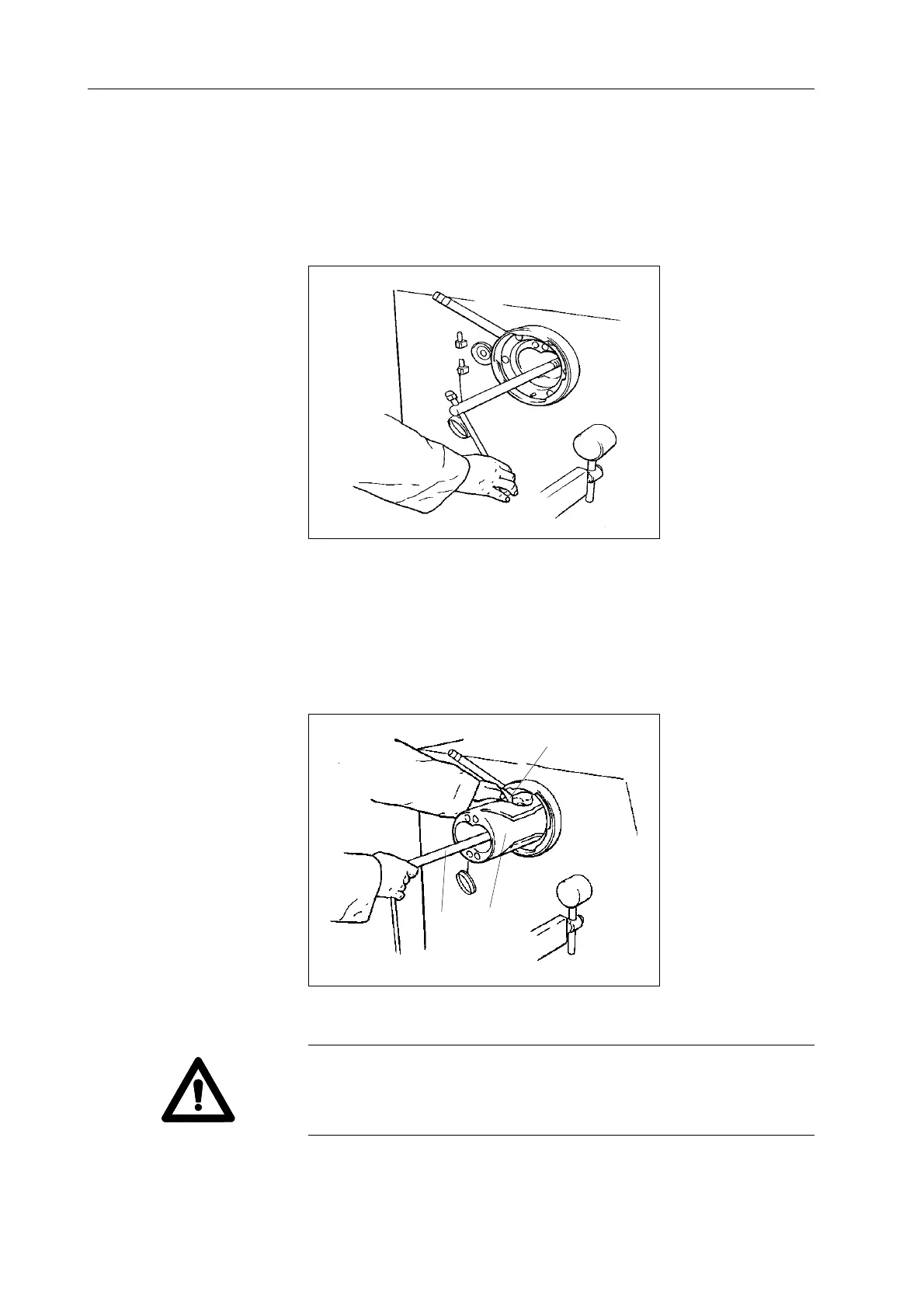

Fig. 6-6
Extraction device
catching
1 Catch
2 Extraction device
3 Double screw housing
Fig. 6-7
Removing the extraction
device
1
3
2
