6.2.6 Hopper
Danger!
There is a risk of crushing when fitting/removing the feed screw. To
prevent injury, proceed extremely carefully when fitting and dismantling
the part.
• Unlock the two locking levers (1) on the hopper housing and carefully
tip the hopper backwards. Hold the hopper firmly by flange (2) as you
do so.
• Remove the scraper in the hopper (if present).
• Push back the three sliding sleeves (3) in the hopper flange, holding
the feed screw (4) steady with the other hand. Carefully twist the feed
screw out of the hopper flange.
• Remove the sealing ring (1) from the hopper flange (2). Use the
appropriate tool at the cleaning plug (3) to do this.
1 Locking levers
2 Flange
3 Sliding sleeves
4 Feed screw

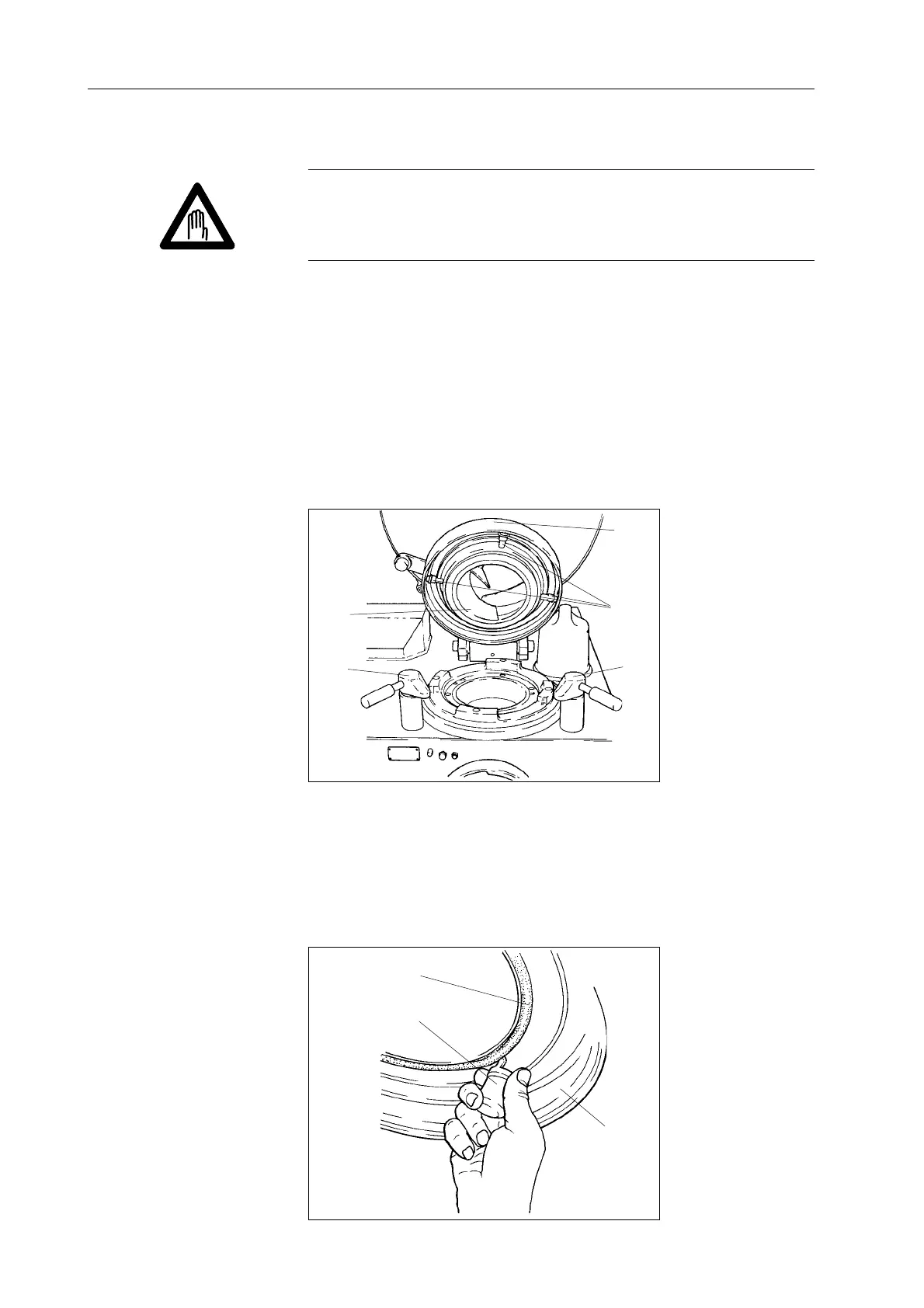

Fig. 6-9
Hopper
2
3
1
1
4
1 Sealing ring
2 Hopper flange
3 Cleaning plug
Fig. 6-10
Feed unit seal
2
3
1
