VEMAG ROBOT HP7C - Page 90

9. Appendix
9-8
ROBOT HP7C / HP10C / HP15C / HP17C
© VEMAG 2004

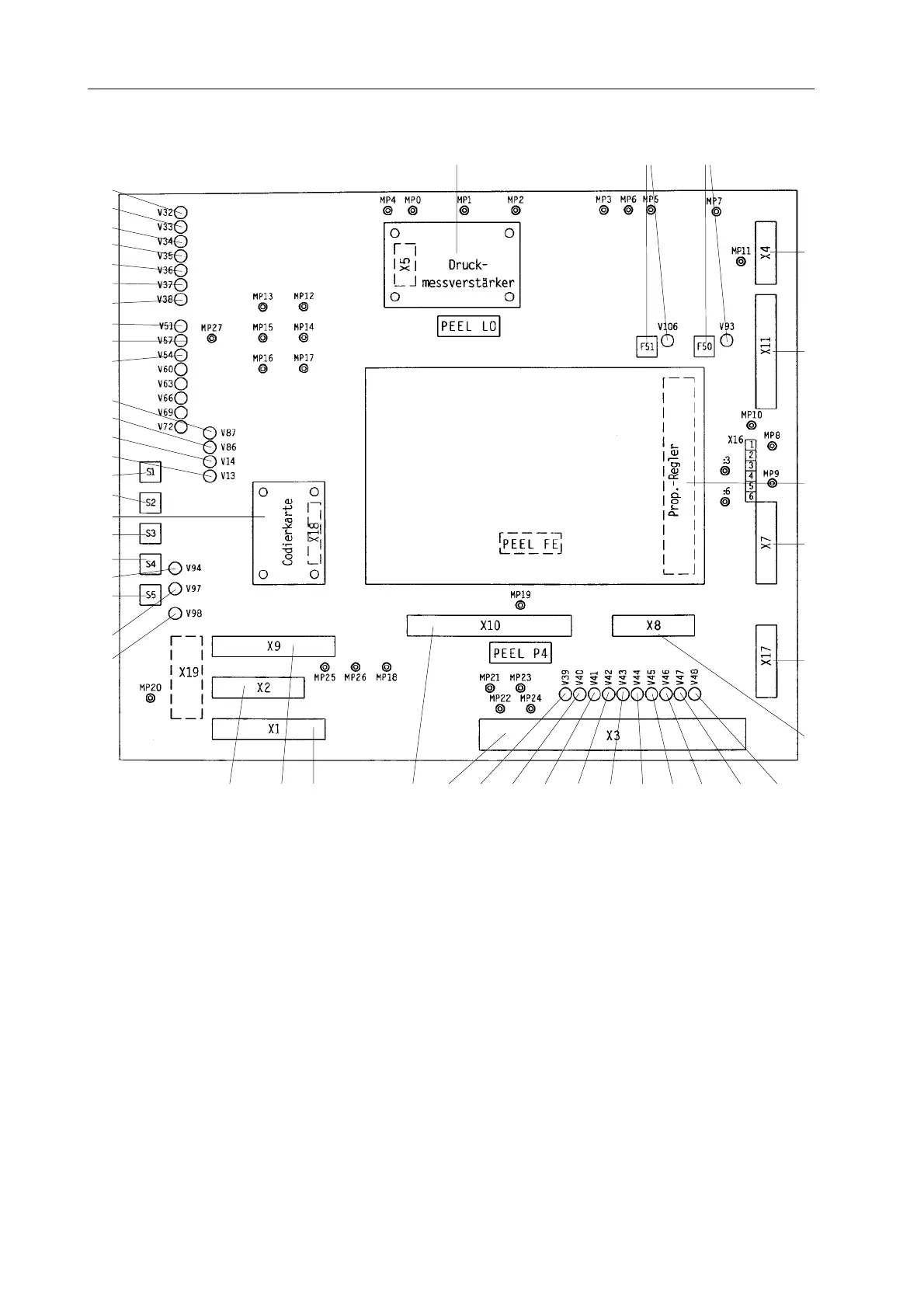

9.7 Power electronics
1 Pressure measuring amplifier
2 Plug for pressure sensor
3 Plug for valves
4 Relief valve control
5 Plug for rotary transducer
6 Plug for displacement transducer
7 Plug strip terminal X8
8 LED: oil temperature monitor
9 LED: main drive motor thermistor fuse
10 LED: vacuum motor thermistor fuse
11 LED: main contactor K1 (safety chain)
12 LED: supply voltage V +24V
13 LED: supply voltage LE -15V
14 LED: supply voltage LE +15V
15 LED: supply voltage PC -15V
16 LED: supply voltage PC +15V
17 LED: supply voltage F +24V
18 Plug for voltage supply
19 Plug for PC inputs
20 Plug for remote control inputs
21 Plug for PC outputs
22 Plug for remote control outputs
23 LED: feed unit OFF
24 LED: feed unit 80
25 Test key: feed unit 80
26 LED: feed unit 125
27 Test key: feed unit 125
28 Test key: linking
29 Coding card
30 Test key: back-suction
31 Test key: fill
32 LED: A-C remote control contact
33 LED: filling horn holder
34 LED: rotary transducer for filling direction
35 LED: rotary transducer for pulses
36 LED: delayed portioning signal (coex) to remote control socket
37 LED: linking or portioning signal to remote control socket
38 LED: portioning or clipping signal to remote control socket
39 LED: back-suction
40 LED: PC enabled
41 LED: clip
42 LED: remote control
43 LED: knee lever
44 LED: link
45 LED: portion
46 Fuse for linking valve
47 Fuse for portioning valve
1 47
2
3
4
5
6
7
891011121415 1316171819202122
24
25
26
27
45
44
43
41
42
40
39
38
37
36
35
34
33
31
30
29
28
32
23
46
