Vendo V-MAX Series User Manual

3/2002
G-9
GATE LINK: P/N 1120140
The rotation of the vend bucket moves the gate link. This opens the gate, allowing
one layer of product to drop into the bucket.
GAGE BAR: P/N 1111651
The gage bar holds the product(s) inside the bucket. It also regulates which product
is vended first when double, triple or quadruple depth settings are used. (See page
G-10 for motor cam settings.)
GAGE BAR CLIPS: P/N 1066104(white), 1066112(black), 1066112-1(gray),
1121704(gray), 1122103(black)
Gage bar clips are attached to the gage bar to create multiple steps when vending
product double, triple, or quadruple depths. (See product set-up label on inner door
for details.)

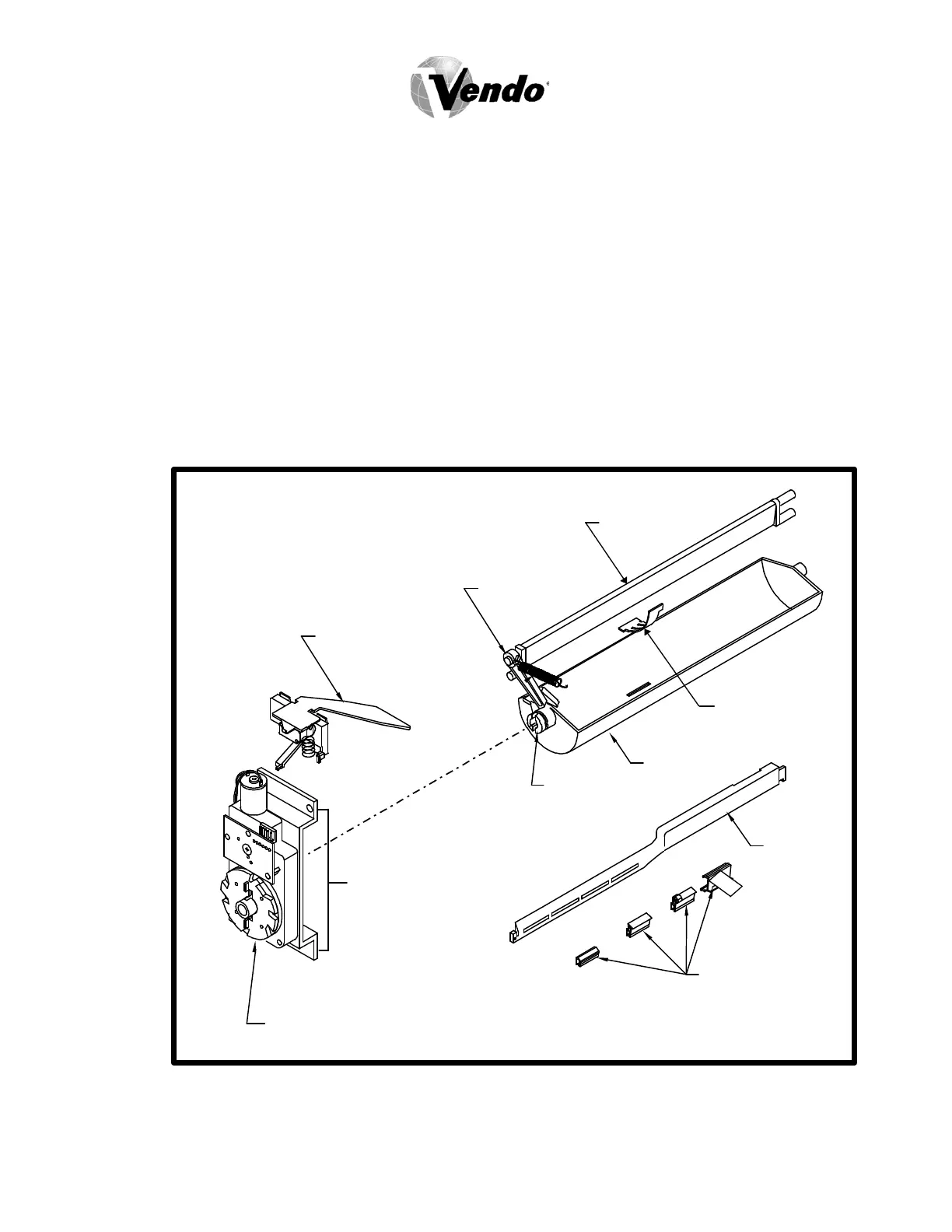

FIGURE 10
BUCKET
GAGE BAR
LINK
GATE
ANTI-TILT CLIP
SOLD-OUT LEVER
GATE
MOTOR CAM & RETAINER
GAGE BAR CLIPS
COUPLER
VEND MOTOR
ASSEMBLY
