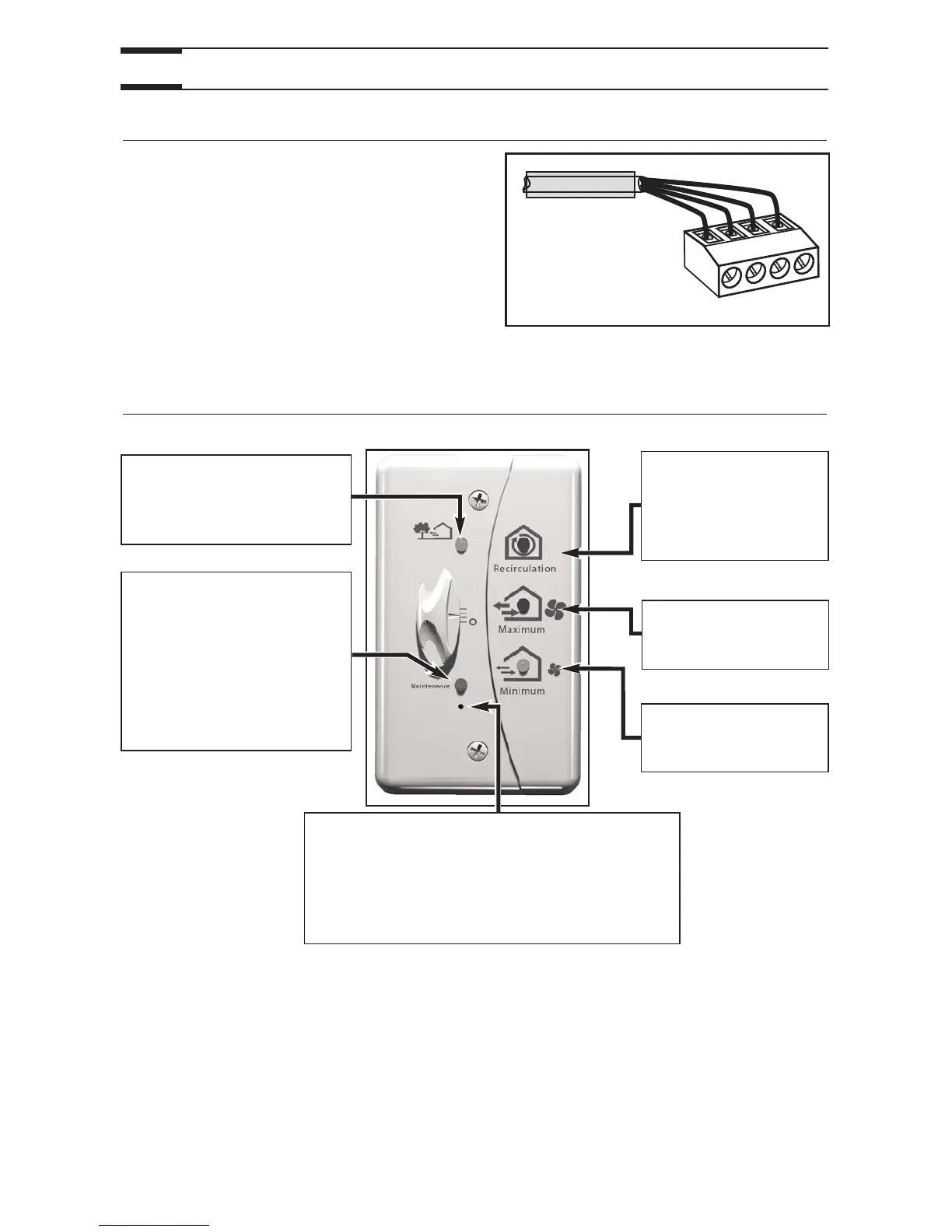

9. Splice back the end of the cable to access
the 4 wires. Remove the insulated sleeve of
each wire ends. Connect each wires in their
corresponding terminal (YELLOW in “Y”,
RED in “R”, GREEN in “G” and BLACK in “B”).
10.Reinstall the electric box cover and plug the
unit.
4. CONTROL
4.1 INSTALLATION OF THE CONTROL (CONT’D)
4.2 OPERATING THE CONTROL
20
MAINTENANCE INDICATOR:
FLASHES EVERY SECOND TO
INDICATE IT IS TIME TO
PERFORM
BIANNUAL
MAINTENANCE. SEE SECTION 5.
LIGHTS UP WHEN ITS TIME TO
PERFORM ANNUAL
MAINTENANCE
. SEE SECTION 5.
RESET HOLE:
ONCE THE FILTER MAINTENANCE IS DONE, RESET
THE MAINTENANCE INDICATOR BY CAREFULLY
INSERTING A SMALL ROD
(E.G.: PAPER CLIP) IN THE
RESET HOLE, FOR 1 SECOND. THE FILTER MAINTENANCE
INDICATOR WILL TURN OFF.
MINIMUM INDICATOR:
U
NITISOPERATINGON
NORMAL SPEED.
VC0114
FRESH AIR INDICATOR:
LIGHTS UP WHEN SLIDE
SWITCH IS ON
MINIMUM OR
MAXIMUM POSITION.
RECIRCULATION INDICATOR:
UNITISOPERATINGON
NORMAL SPEED WITHOUT
EXCHANGING AIR WITH
THE OUTSIDE
.
MAXIMUM INDICATOR:
U
NITISOPERATINGON
HIGH SPEED.
