SuMoTuWeThFrSa
Mode Indicators - Page 6

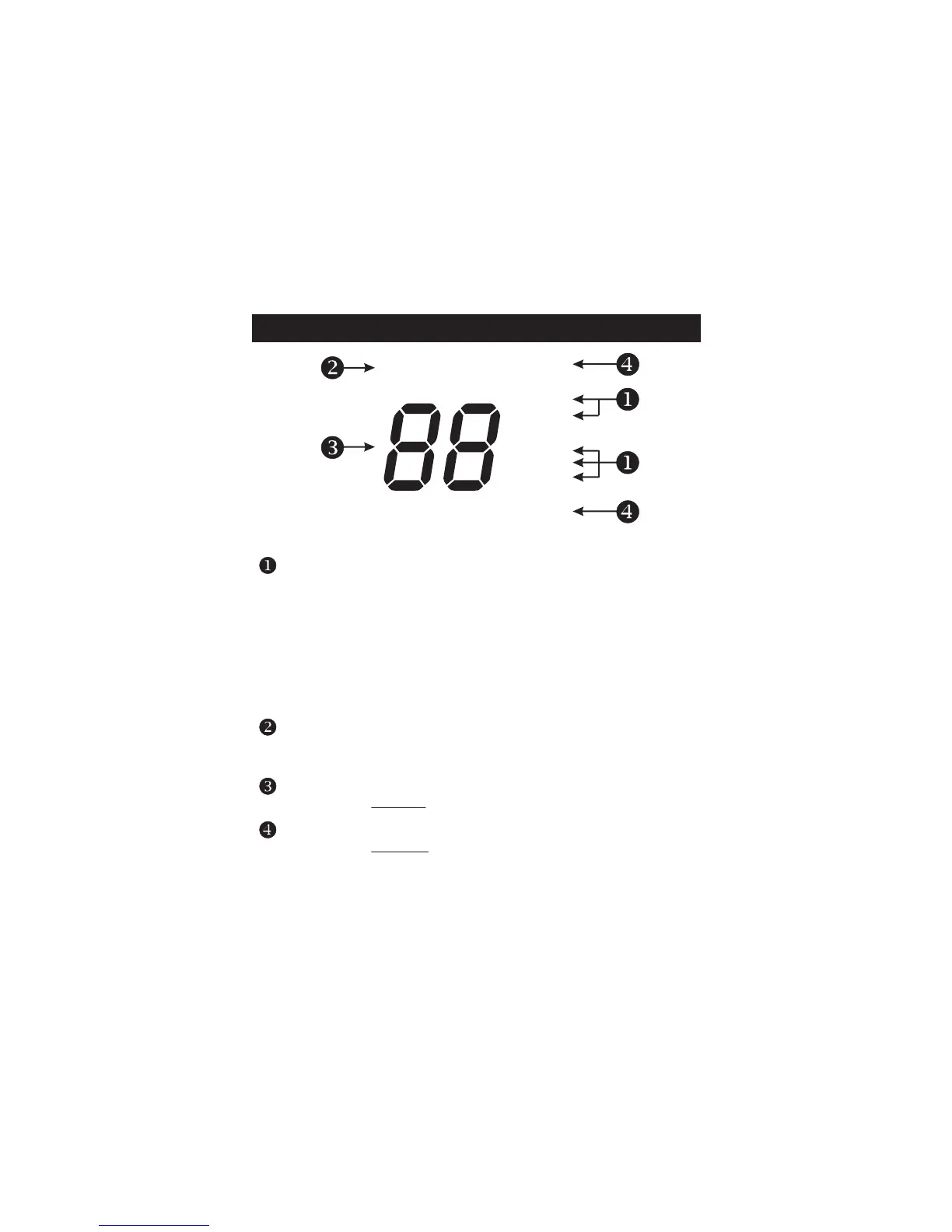

Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
PROGRAM ON - Indicates the time period
program is enabled to run.
OFF - Indicates heating and cooling are turned off.
Clock with Day of the Week - Page 5
Indicates the current time and day. This clock is
also used to program the time period schedules.
Room Temperature Display
Indicates current room temperature.
Desired Set Temperature - Page 7
Indicates desired room temperature(s).
Display
88
88
HEAT
COOL
ONOFF
AUTO
Fan On
Program
Locked
Setup
On
o
Am
Pm
I8:88
Day
Night
Evening
Morning
