Installation and Operation Manual - HE275CF
ENGLISH
Installation
It is strongly recommended to wear gloves to complete the installation.

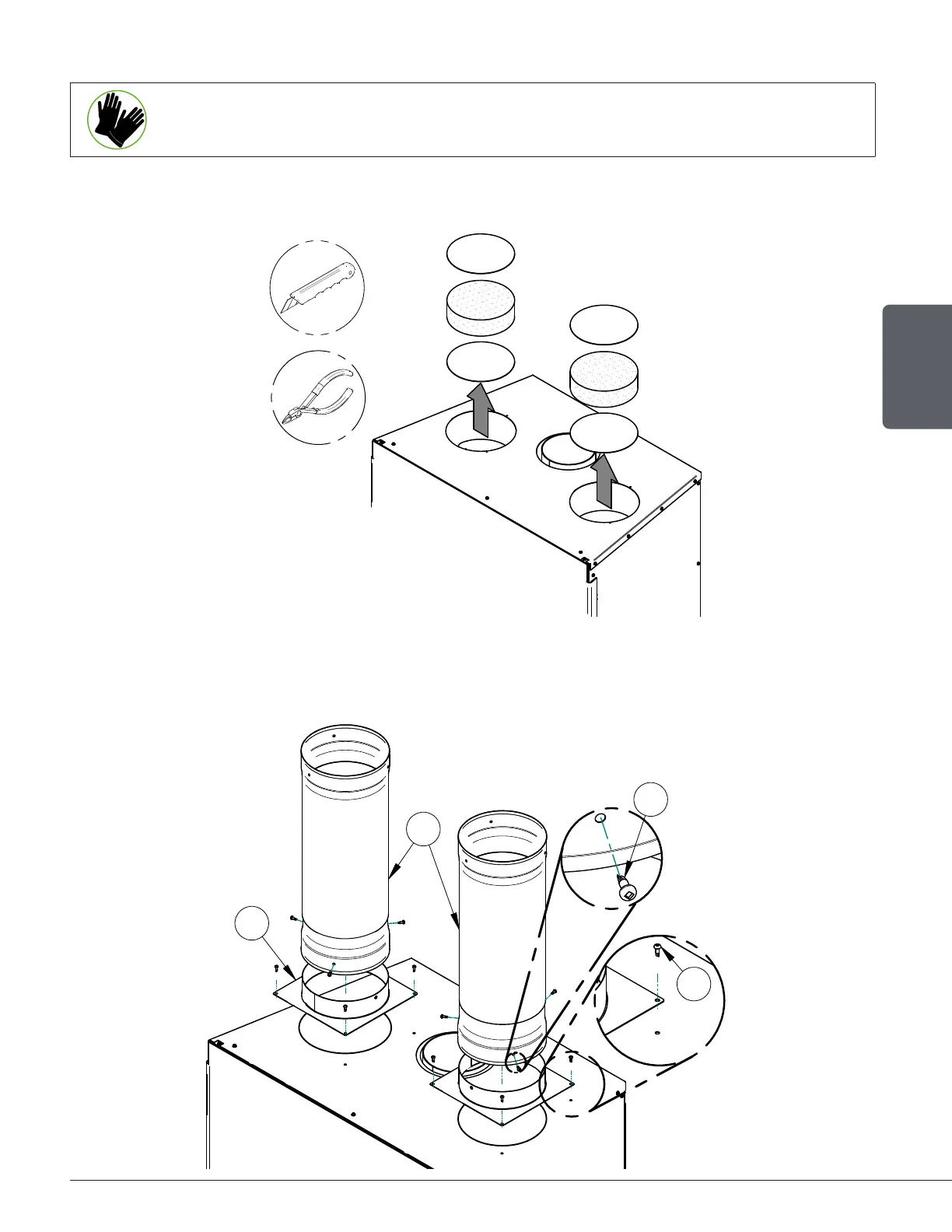

A) Remove the knockouts that close the 8" (20 cm) diameter holes on top of the fireplace. Then cut
and remove the insulation and the other set of knockouts inside the fireplace.
B) Secure the 2 anchor plates (E) with 8 screws provided (F) on top of the fireplace (4 for each
anchor plate). Insert the telescoping section (D) into each anchor plate and secure it with 6 other
self-tapping screws provided (G).
1
2
F
D
8X
1
G
6X
2
E
