MX800 SERIES INSTALLATION GUIDE 19
Power Up with
the Multiport
Cable
This section describes how to connect the MX800 Series terminal to a power
source using the multiport cable.
1 Make all other connections before connecting the power pack.
2 Insert the multiport cable connector into the port on the back of the terminal
(see Figure 15).
3 Route the cable through the slots to the desired exit side.
4 Insert the plug from the power pack into the +12V receptacle on the multiport
cable.
5 Plug the power pack into an indoor electrical power outlet (Figure 15).

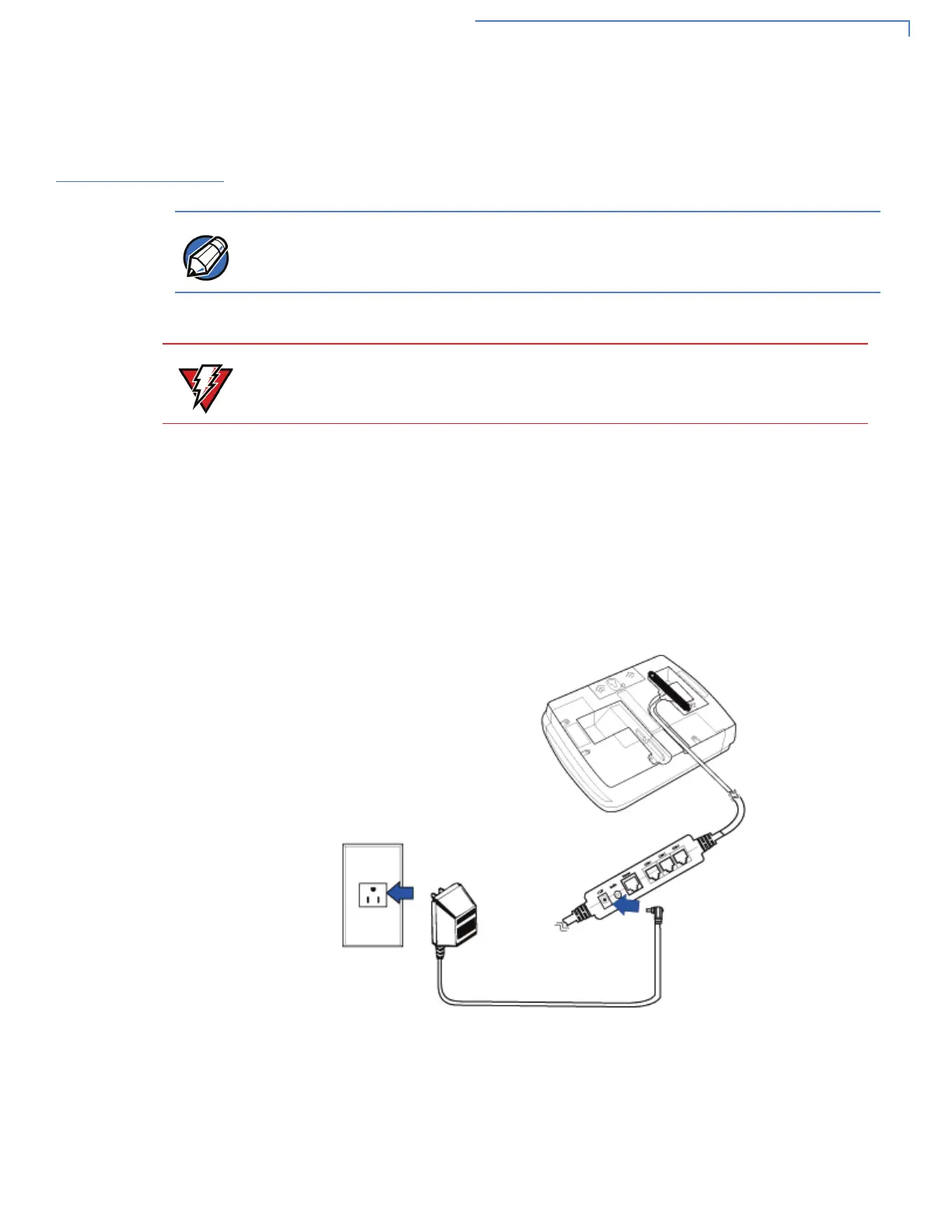

Figure 15 Power Pack Connection
If connected to an ECR, the MX800 Series terminal can receive power from the
ECR.
Do not plug the power pack into an outdoor outlet or operate the terminal
outdoors.
