VeriFone UX401 User Manual

SETUP
Unpacking the Shipping Carton
10 UX401 INSTALLATION GUIDE
Unpacking the
Shipping Carton
Open the shipping carton and carefully inspect its contents for possible tampering
or shipping damage.
To unpack the
shipping carton
1 Remove the items from the shipping carton. The standard package contains:
• The UX401 contactless reader
• One SMA (RF) coaxial cable
• One RJ45 communication cable for connecting with the UX301 card
reader.
Refer to Accessories and Documentation for more information about related
accessories.
2 Remove any protective wrap before mounting the unit.
3 Save the shipping carton and packing material for future repacking or moving
of the device.
Examining the
CTLS Reader
Features
Before you continue the installation process, notice the features of the reader (see
Figure 1 and Figure 2).

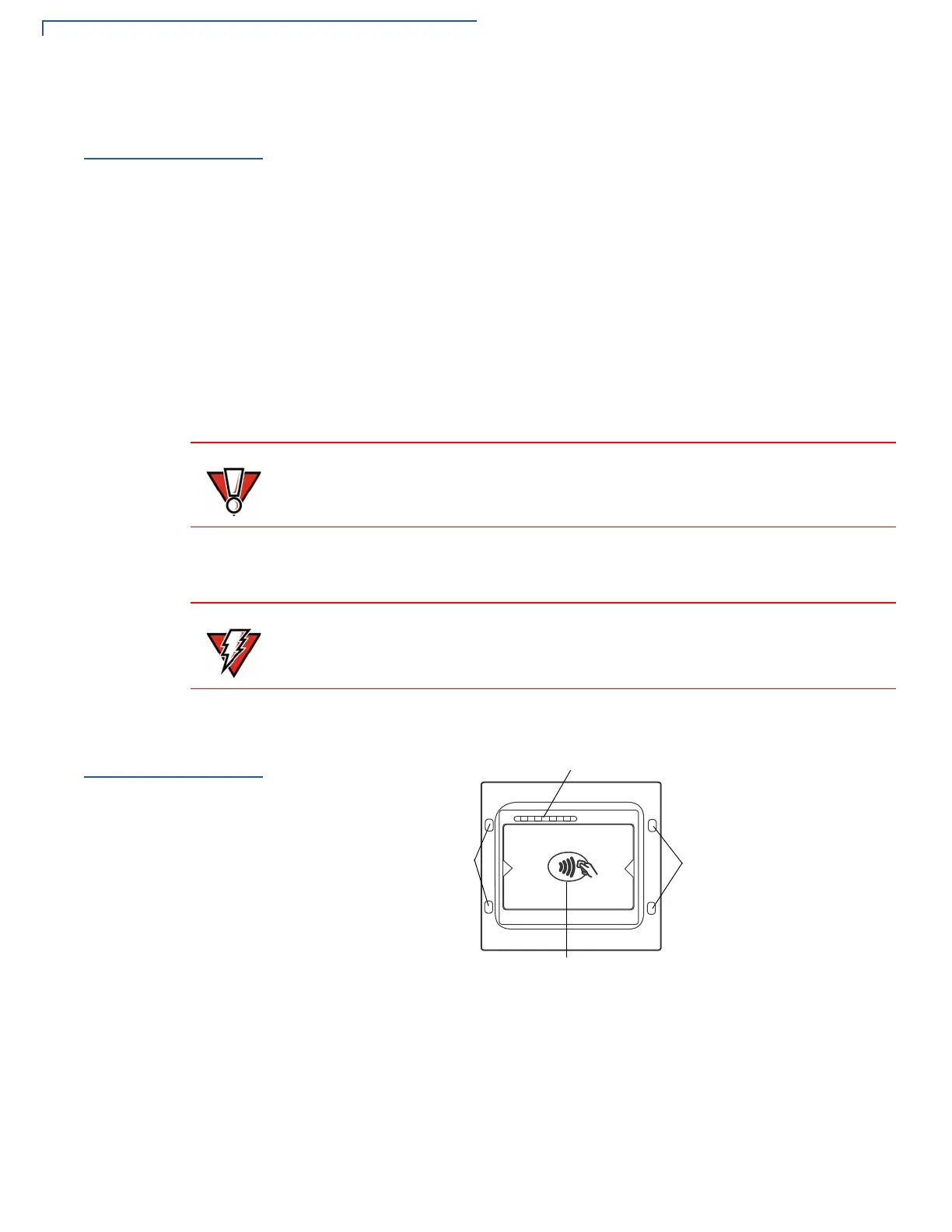

Figure 1 UX401 Front View
Front Functions
The front of the contactless device shows the following:
• Customer-view indicator LEDs
• The CTLS logo
CAUTION
Remove any protective plastic over the front display before use, or the unit may
not work properly.
WARNING
Do not use a unit that has been damaged.
If a label or component appears damaged, please notify the shipping company
and your Verifone service provider immediately.
LEDS
CTLS LOGO
MOUNTING
STUD HOLES
MOUNTING
STUD HOLES

VeriFone UX401 Specifications

General

Brand	VeriFone
Model	UX401
Category	Payment Terminal
Language	English
