Connect a SAS-3 cable to port B of the bottom I/O module in the second shelf.
Connect the other end of the cable to port A on the bottom I/O module in the
first shelf.
The blue tab on the SAS-3 cable should be on the same side of the cable as
the SAS-3 label when the cable is connected.
Next, connect network and power cables. Turn on the storage shelves and the
appliance per the required sequence. Verify that all units function correctly.

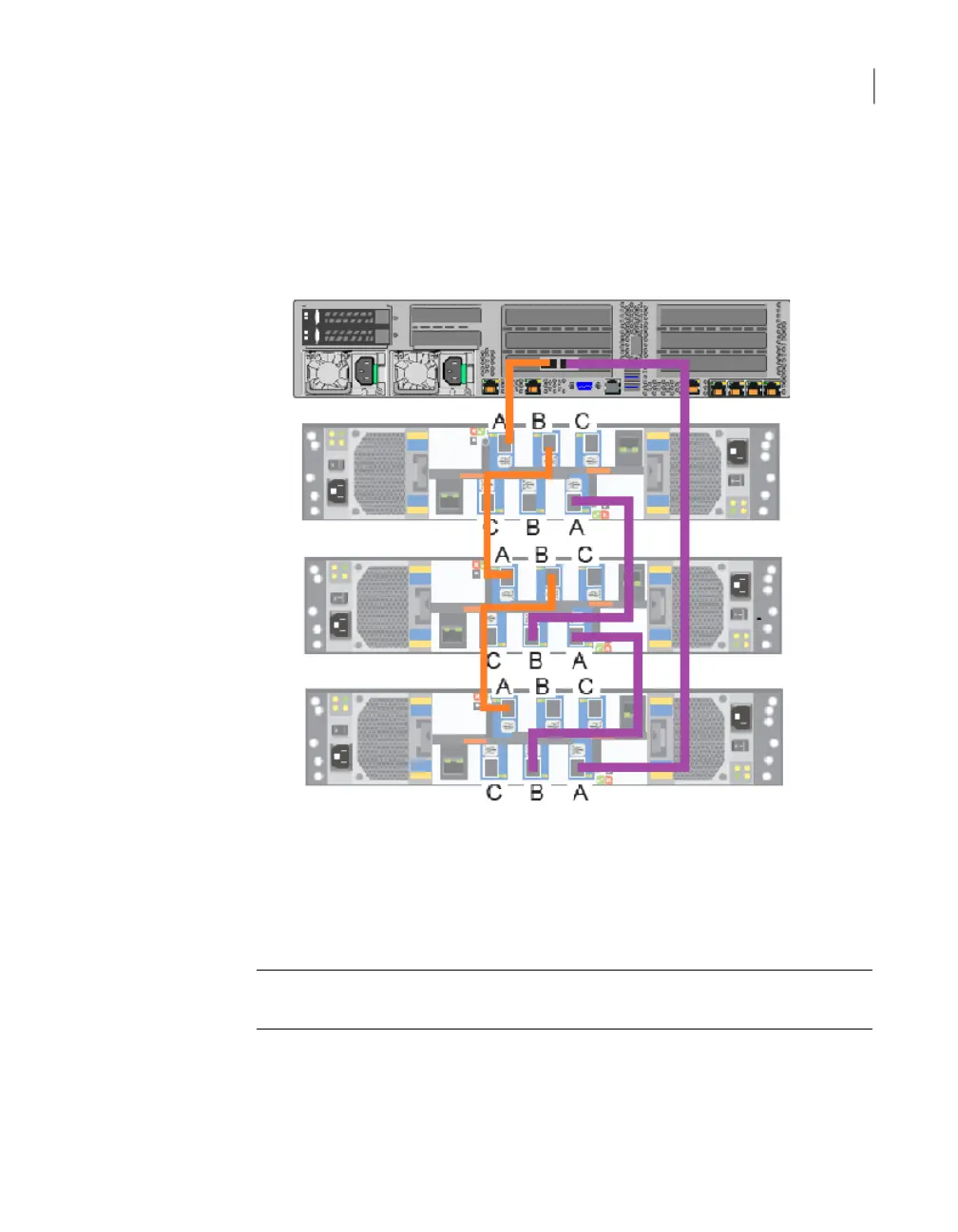

Connecting four S Series storage shelves to an appliance
Note: The cables in the following diagrams are shown in different colors for
demonstration purposes only. The actual cables are black.
