5
UVS27 Vent-Free Gas Heater
20007068


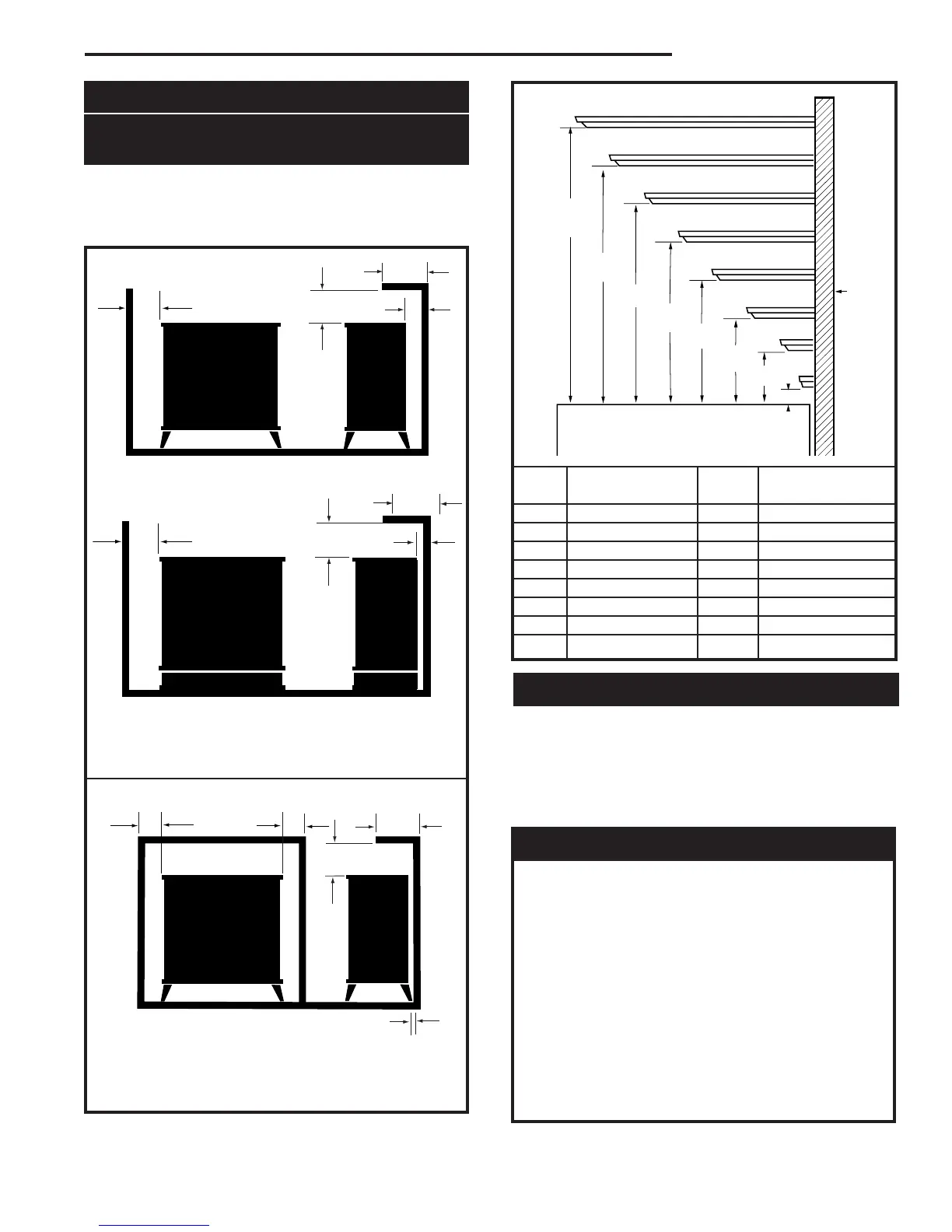

The Freestanding Stove and Hearthmount Shell must
be installed on rigid flooring. If the appliance is installed
on any combustible surface other than wood flooring,
such as carpet or tile, a metal or wood panel must be
installed to extend the full length and width of the unit.





       
  




        
       




Maintain clearance, (empty space), between combus-
tible materials and the heater as specified below for the
appropriate firebox shell being installed.

B
A
C
D
ST101
Min. Clrnc
4/15/99 djt
B
A
C
D
ST102
Min. Clrnc
4/15/99 djt


ST101
ST102
A: Mantel/Trim* .........................35” (889 mm) / 2” (51 mm)
B: Side Wall/Trim* ..............................................2” (51 mm)
C: Rear Wall ........................................................0” (0 mm)
D: Max. Mantel Width ....................................13” (330 mm)
B
A
C
D
ST103
Min. Clrnc
4/15/99 djt
B

A: Ceiling .......................................................35” (889 mm)
B: Side Wall .......................................................2” (51 mm)
C: Rear Wall ........................................................0” (0 mm)
D: Max. Alcove Depth ....................................13” (330 mm)
ST103
FP599a
stove mantel heights
9/27/99 djt
S
T
U
V
W
X
Y
Z
A
B
C
D
E
F
G
H
ST599a
 
   
A 13” (330mm) S 35” (889 mm)
B 11¹⁄₄ (286 mm) T 30” (762 mm)
C 9³⁄₈ (241 mm) U 25” (635 mm)
D 7¹⁄₂ (191 mm) V 20” (508 mm)
E 5³⁄₄ (146 mm) W 15” (381 mm)
F 4” (102 mm) X 10” (254 mm)
G 2¹⁄₄ (57 mm) Y 5” (127 mm)
H 1” (25 mm) Z 2” (51 mm)
