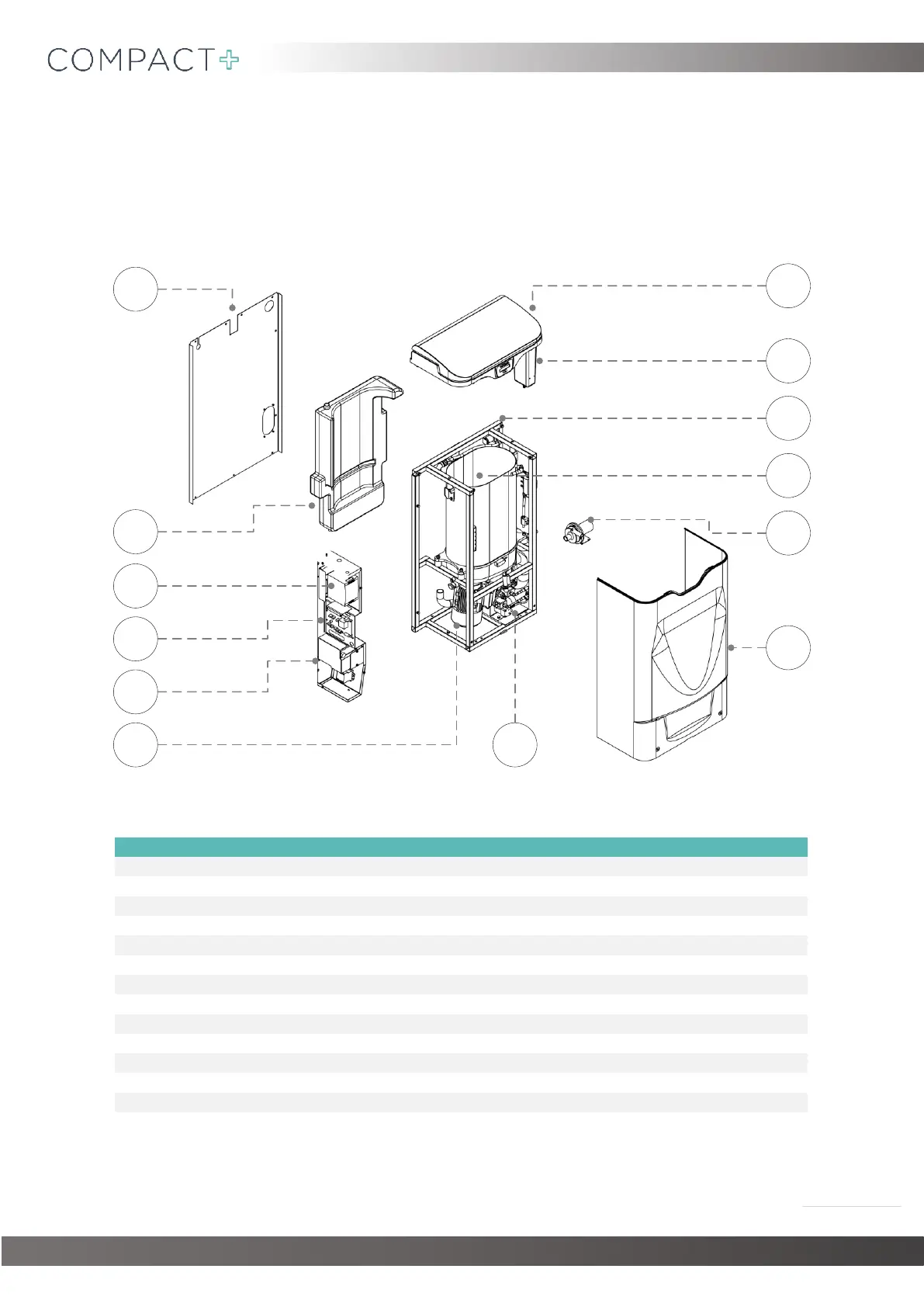

3.4. General Assembly
This image is for machine familiarisation only, to see full detail on subassemblies and part
numbers please view the ‘Subassemblies and Spares’ section (5).
1
2
3
4
5
6
7
8
9
10
11
12
13
REF
DESCRIPTION
1
Back Panel
2
Water Tank
3
Power Supply
4
Printed Circuit Board
5
Mitsubishi Inverter
6
AC Motor
7
Lid
8
Deodoriser Tank
9
Frame
10
Hopper Chamber
11
Water Pump
12
Front Cover Panel
13
Pneumatic Assembly
