Vernacare COMPACT+ - Lid Assembly

Vernacare Compact Plus Technical Manual-Revision 2-Issued by N.Shields 14.2.2020
Page | 22

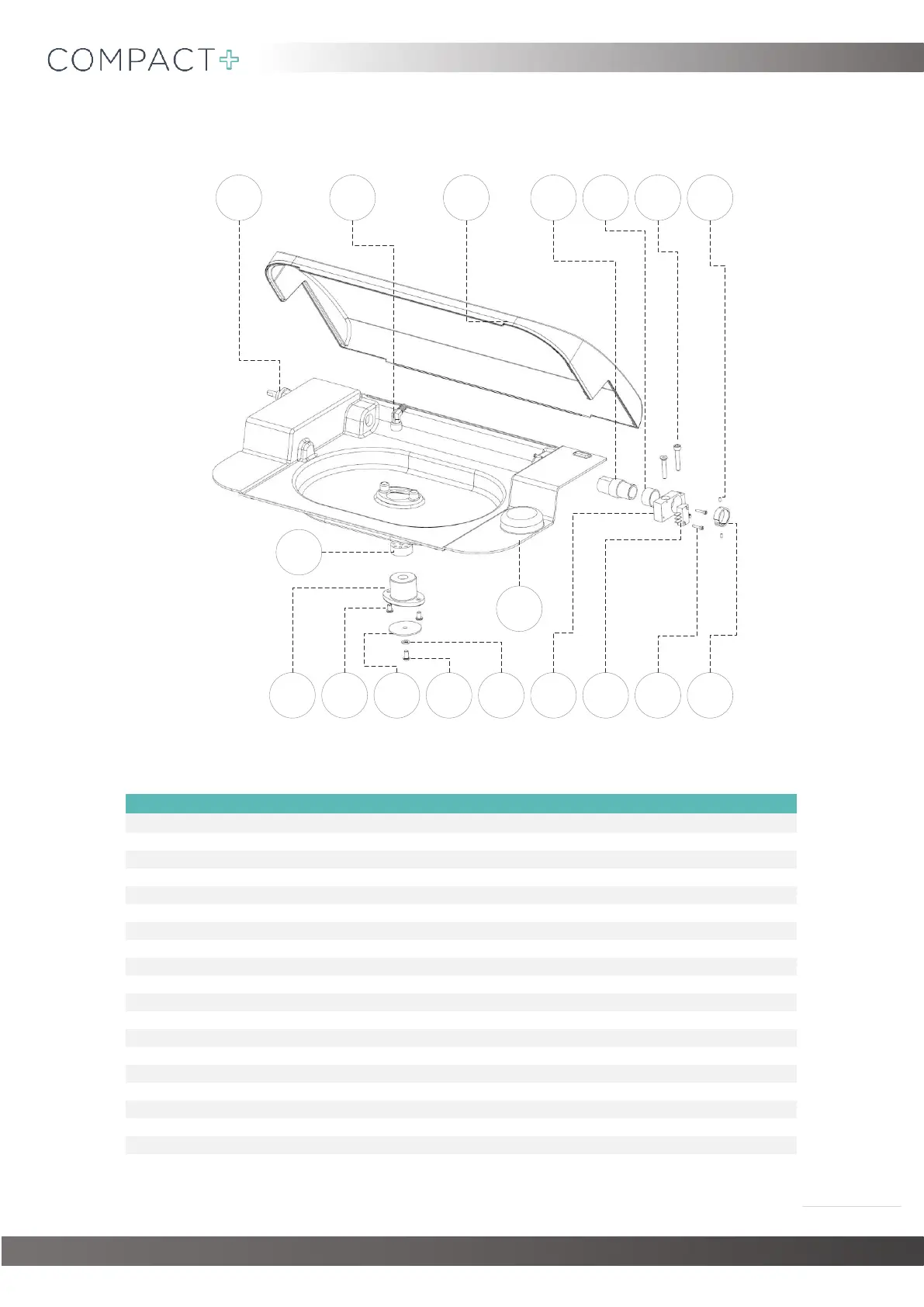

5.3. Lid Assembly
32 76541
8
109 11 12 13 14 15 16 17
18
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
9210303
1
Drive Motor Shaft
9210018
2
Hose Tail Elbow
9210163
3
Lid Top Moulding
9210003
4
Idel Shaft
9210053
5
Idle Shaft Bearing
9210054
6
M6 x 35 Hex Hd Screw (x2)
9210079
7
M3 x 6 Grub Screw (x2)
9210108
8
Spray Nozzle
9210017
9
Spray Washer Housing
9210016
10
M6 x 20 Cap Hd Screws (x2)
9210076
11
Spray Washer
9210028
12
M8 x 12 Button Hd Screw
9210080
13
M8 Spring Washer
9750033
14
Idle Shaft Hinge Block
9210023
15
Limit Switch
9210175
16
M3 x 25 Cap Head Screw (x2)
9210101
17
Micro Switch Cam Ring
9210009
18
Lid Bottom Moulding
9210002
