Vernacare COMPACT+ - AC Motor Information; Motor Electrical Box Plug & Socket Connections; Motor Terminal Wiring Diagram

Vernacare Compact Plus Technical Manual-Revision 2-Issued by N.Shields 14.2.2020
Page | 36
10. AC Motor Information

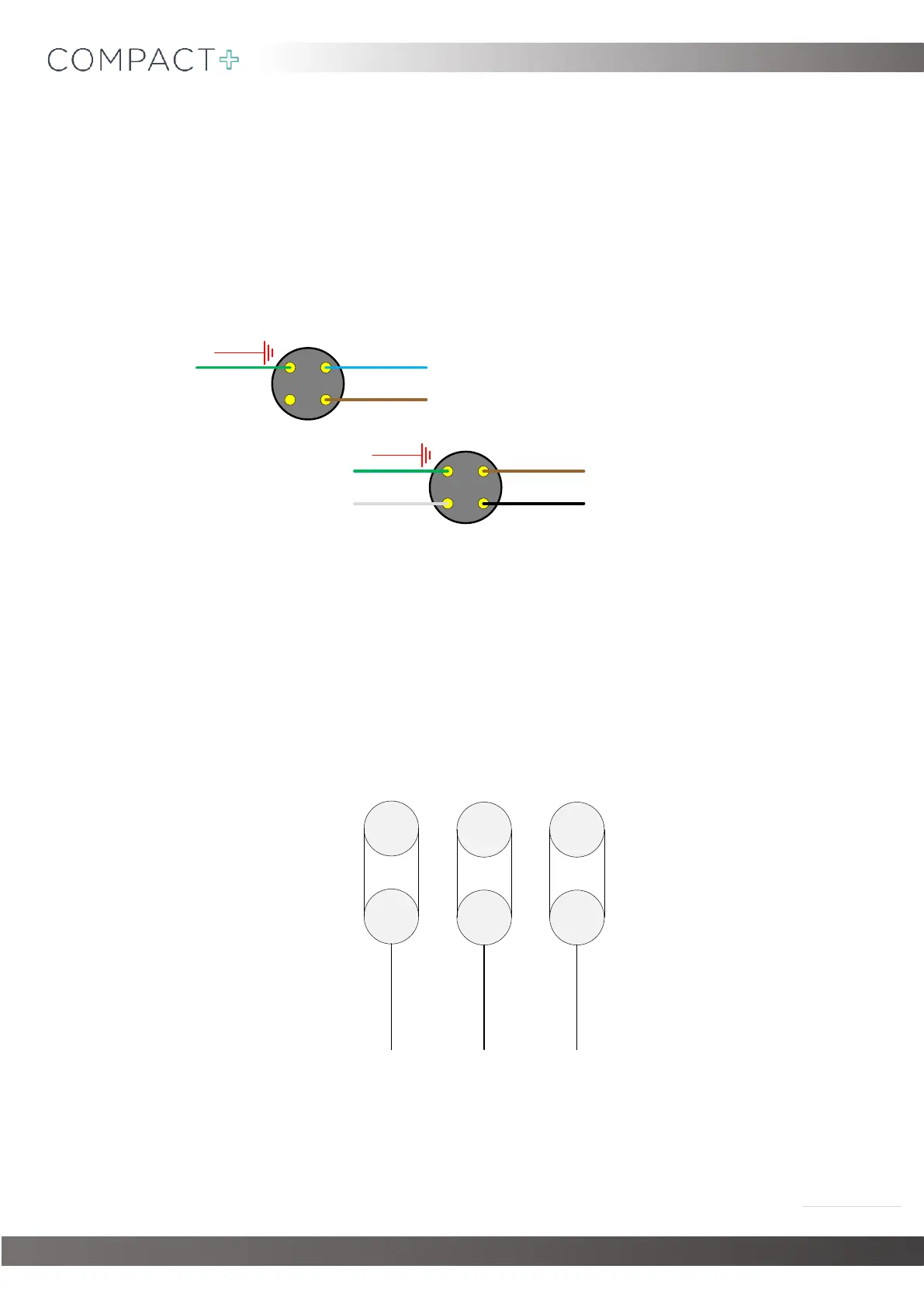

10.1. Motor Electrical Box Plug & Socket Connections
Power Supply 110/230V
AC socket/plug
Motor socket/plug
1
23
1
23
10.2. Motor terminal Wiring Diagram
Motor wired in Delta for 220 volt input from the invertor unit.
Ø Ø Ø
W2 U2
V2
U1 V1
W1
1 2 3
