5. Subassemblies & Spares

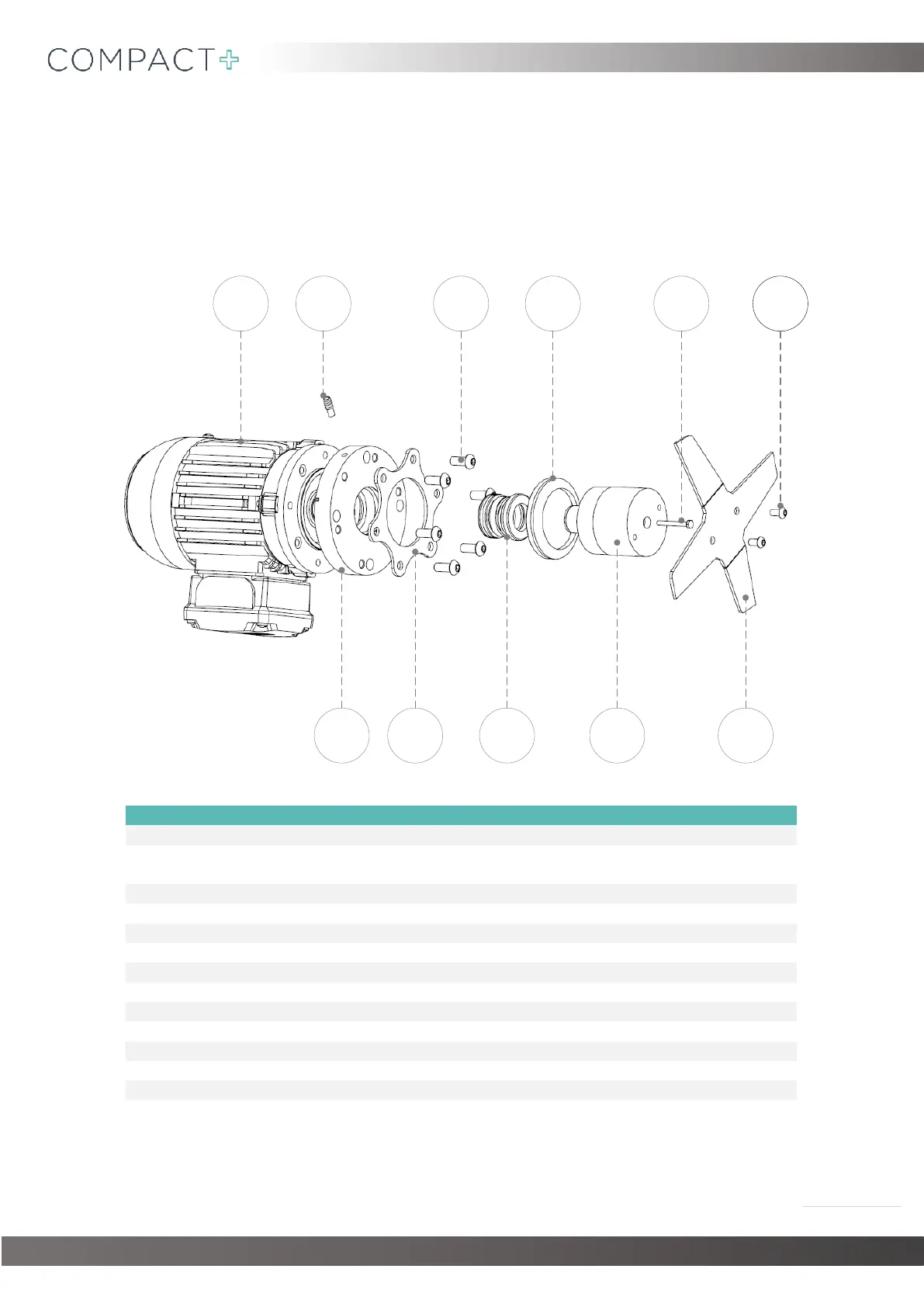

5.1. Motor Assembly
1
2
3 4 5 67
8 9 10 11
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
9210301
1
Compact Plus Motor AM63 0.25KW
B14
9210121
2
Motor Mounting Flange
9210024
3
M8 x 35 Button Hd Screw (x6)
9210077
4
‘V’ Seal
9753000
5
M4 x 45 Hex Hd Screw (x1)
9210094
M4 Nordlock Washer (x1)
9210060
6
M6 x 12 Button Hd Screw (x2)
9210073
M6 Nordlock Washer (x2)
9210071
7
Barbed Seal Flush Fitting
9750100
8
Motor Star Gasket
9752027
9
Mechanical Seal
9210092
10
Cutter Adapter Coupling
9210026
11
Cutter Blade
9210033
