Vernacare COMPACT+ - Top Cover Assembly

Vernacare Compact Plus Technical Manual-Revision 2-Issued by N.Shields 14.2.2020
Page | 25

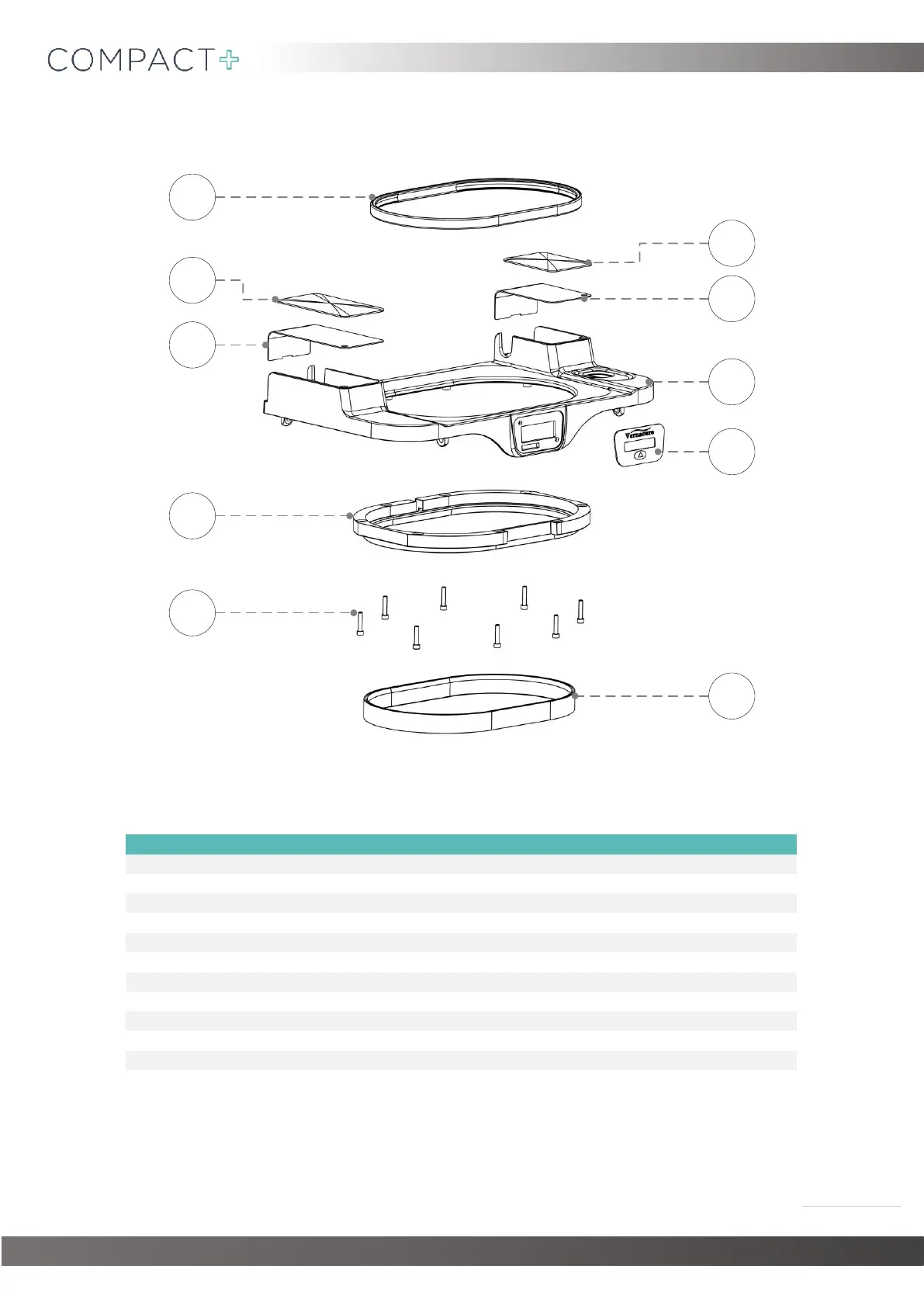

5.6. Top Cover Assembly
1
2
3
4
5
6
7
8
9
10
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
9210302
1
Inflatable Lid Seal
9210099
2
Rubber Motor Panel Cover
???
3
Lid Motor Cover Panel (with captive screw)
9210047
4
Clamp Ring
9210001
5
M4 x 20 Cap Hd Screw (x8)
9210063
6
Hose Cover Panel (with captive screw)
9210046
7
Rubber Hose Panel Cover
???
8
Top Cover
9210000
9
Display Assembly (see 5.7 for full detail)
9210307
10
Seal
9210097
