5 Motor Assembly

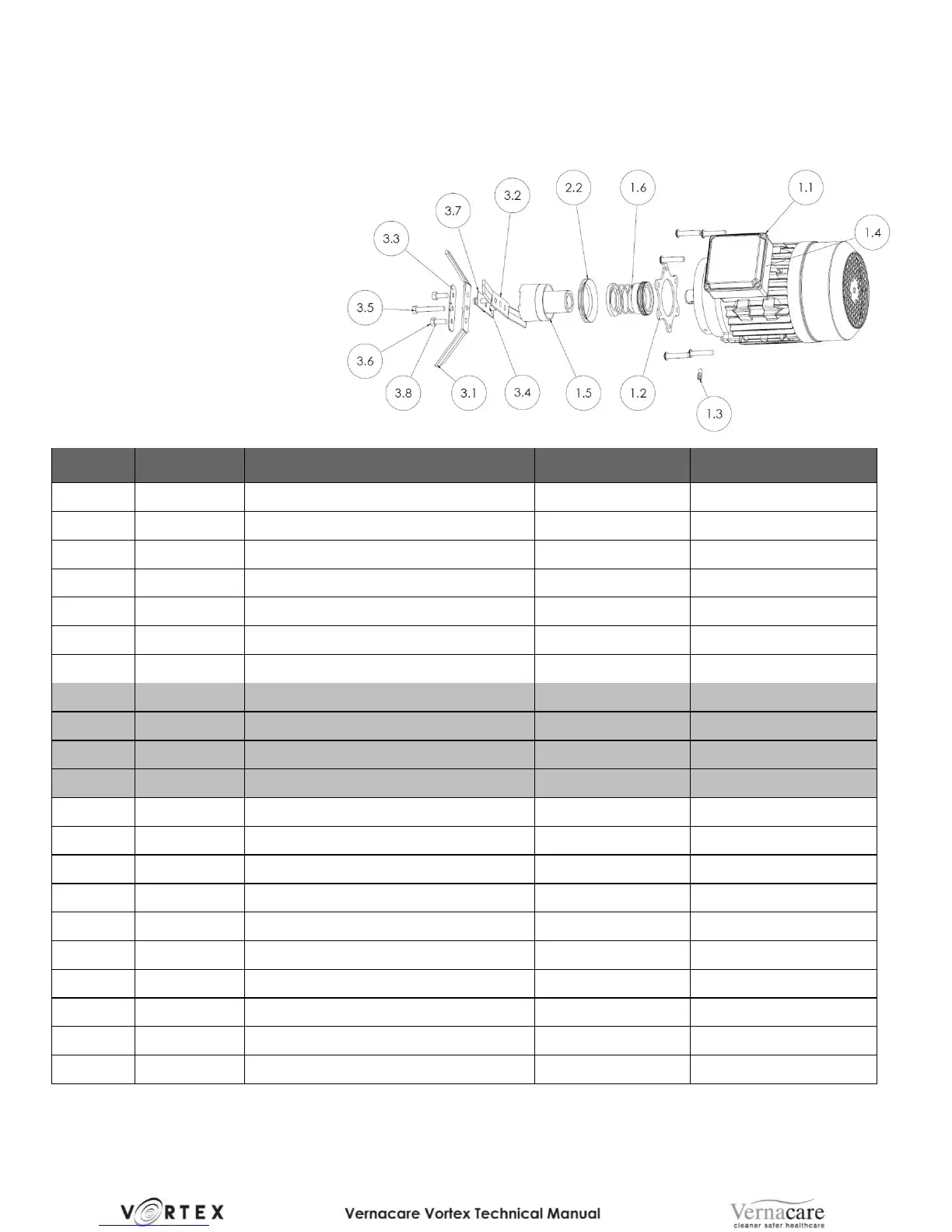

Figure 3 - Cutter Motor Assembly
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER*
1
Vortex Motor Kit
9207004
1.1
Electric Motor 230V/400V 3PH 50Hz
9200424
1.2
Motor Gasket
9752027
1.3
Barbed Fitting
9750100
1.4
Vortex Motor Cable
9200693
1.5
Cutter Motor Adaptor (x1)
9200402
1.6
Mechanical Seal (x1)
9753005
2
Vortex Mechanical Seal Kit
9207006
(1.6)
Mechanical Seal
9753005
2.2
V Seal
9753000
2.3
M8 x 50 H.H.S.S
9750006
3
Vortex Blade Kit
9207015
3.1
Top Cutter Blade
9200418
3.2
Bottom Cutter Blade
9200417
3.3
Cutting Blade Locking Plate (Tab Washer)
9753011
3.4
M8 x 20 Hex HD Screw x2
9750077
3.5
M8 x 50 Hex HD Screw x1
9750006
3.6
M8 x 35 Button HD Screw x2
9750075
3.7
Fibre Gasket
(also in kit 9207004)
9753010
3.8
D8 Spring Washer
9750033
4
4
Cutter Motor Assembly Kit
9207005
