Vernacare Vortex - Lid Interlock Assembly Parts

23
9 Lid Interlock Assembly

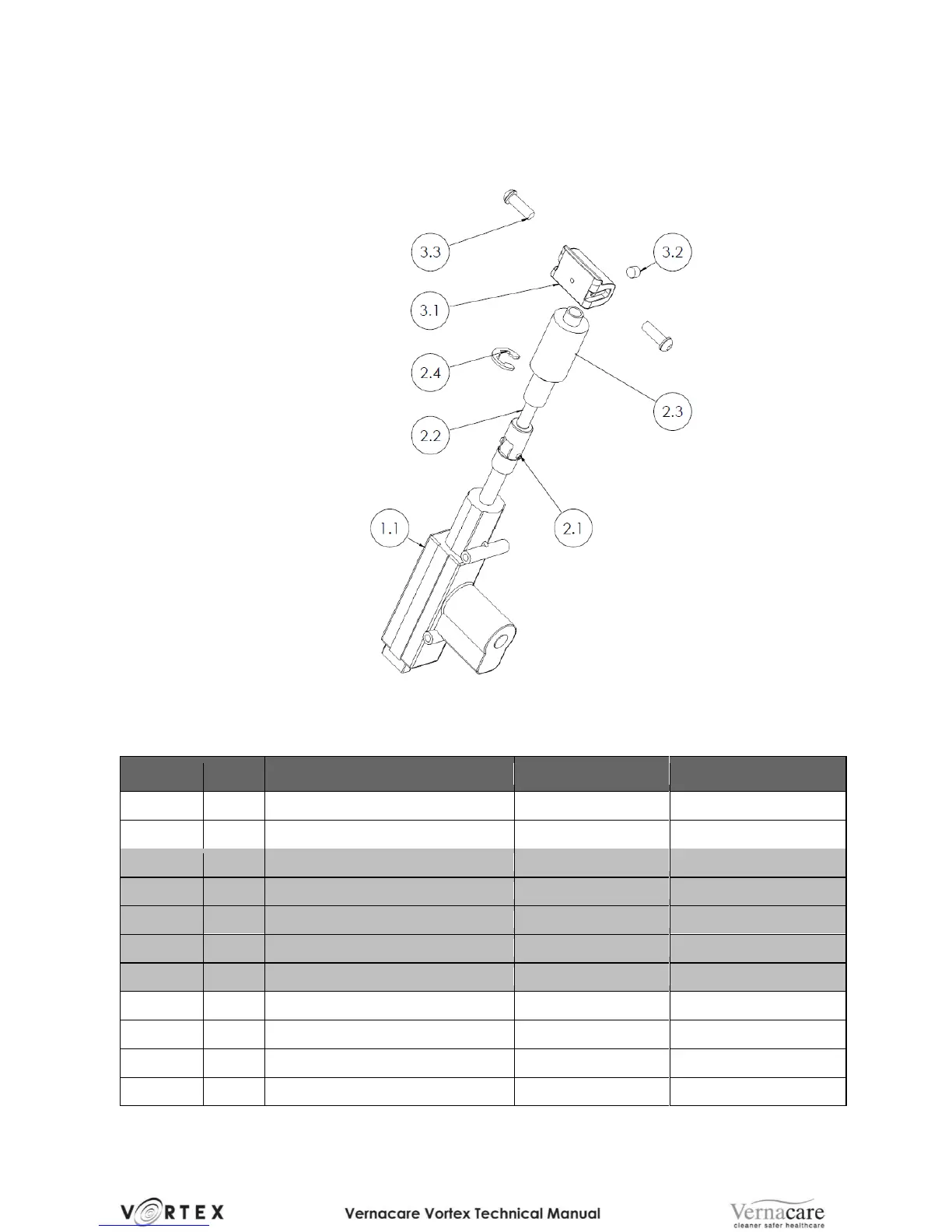

Figure 7 – Lid Interlock Assembly
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER*
1
Interlock Interface Cable Kit
9207018
1.1
Interlock Actuator (with cable)
2
Interlock Assembly Kit
9207017
2.1
Spring Pin
9200689
2.2
Interlock Pin/Pin Shaft
9200687
2.3
Interlock Guide Bush
9200635
2.4
Guide Bush ‘C’ Clip
9200626
3
Vortex Latch Kit
9207011
3.1
Latch
9200157
3.2
Magnet
9200119
3.3
Locking Block Screw x2
9200120
