Vernacare Vortex - Drain Valve Assembly Parts

19
6 Drain Valve Assembly

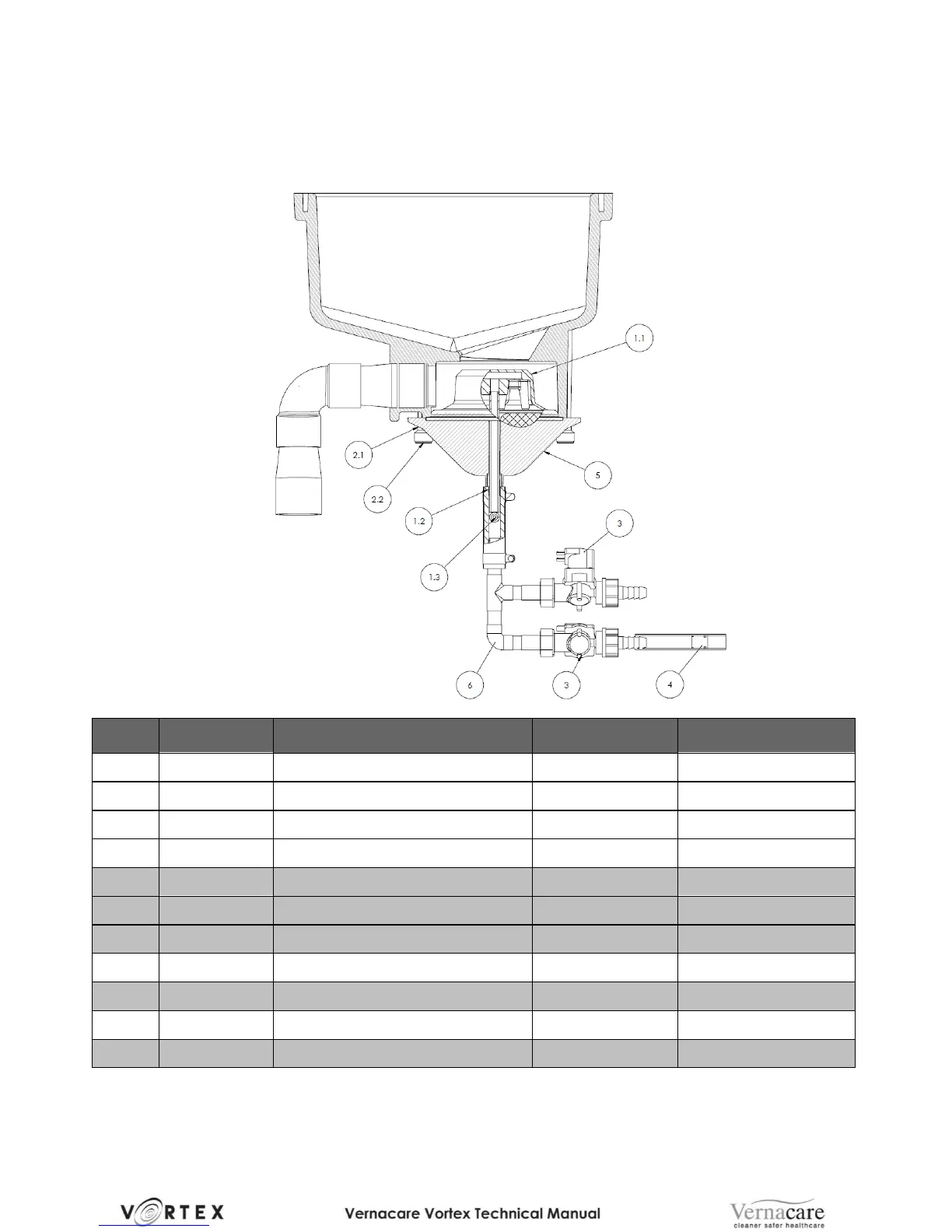

Figure 4 - Diaphragm Valve and Ancillary components
KIT
REF
PART DESCRIPTION
KIT NUMBER
ITEM NUMBER
1
Diaphragm and Spring Kit
9207012
1.1
Diaphragm
9200304
1.2
Diaphragm Spring
9200333
1.3
Retaining Pin
9750085
2
Diaphragm Fastening Kit
9207016
2.1
Grub Screw x8
9200326
2.2
Three Lobed Nut x 8
9200327
3
3
Water Inlet/Outlet Solenoid Value
9200724
4
4
Non Return Value
9200726
5
5
Diaphragm Chassis
9200328
6
6
Plumbing Elbow
9200729
