Appendix B

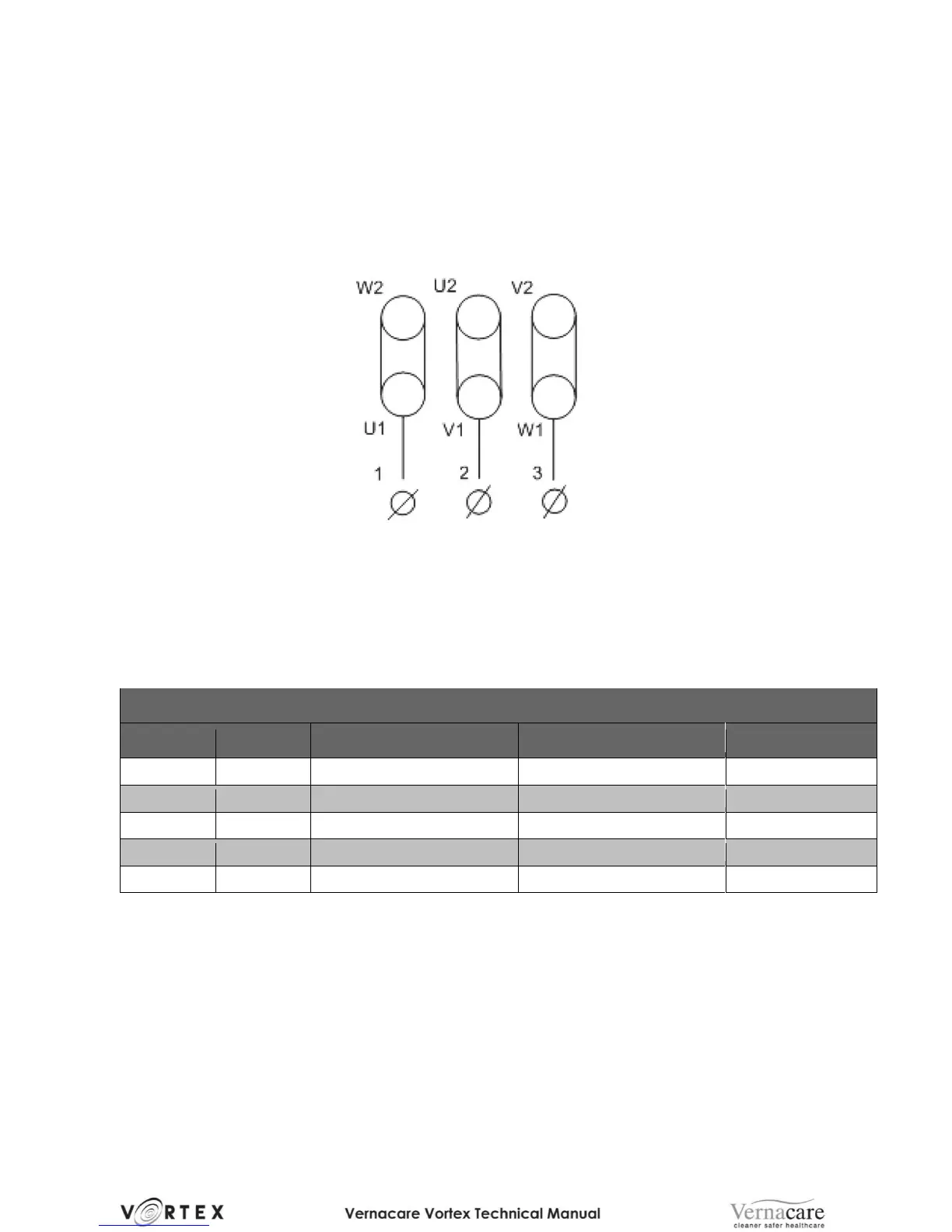

Diagram for Motor Terminal Wiring
Motor wired in Delta for 220 volt input from the invertor unit.
Voltage amps check for Vortex Macerator.
Note: Readings are for a product load of four bottles.
CURRENT RANGE
VOLTAGE
PHASE
NOM RUNNING LOAD
MAX LOAD
MAX PEAK
110
1
2.5 to 4.8 amp
6.1 to 12.7 amp
44 amp
200
1
2.9 to 3.5 amp
6.3 to 8.8 amp
39 amp
220
1
2.8 to 3.2 amp
5.3 to 9.1 amp
41 amp
230
1
2.4 to 3.1 amp
5.2 to 8.1 amp
44 amp
250
1
2.8 to 3.7 amp
5.3 to 7.9 amp
44 amp
