1 — Installation of the VX-MD4024
16 / 44
UMAP2200
HK_IN
HK_COM
3.3 Vdc
Environment
Sensor
UMAP2200
Alarm
Equipment
ALMOUT
ALMCOM

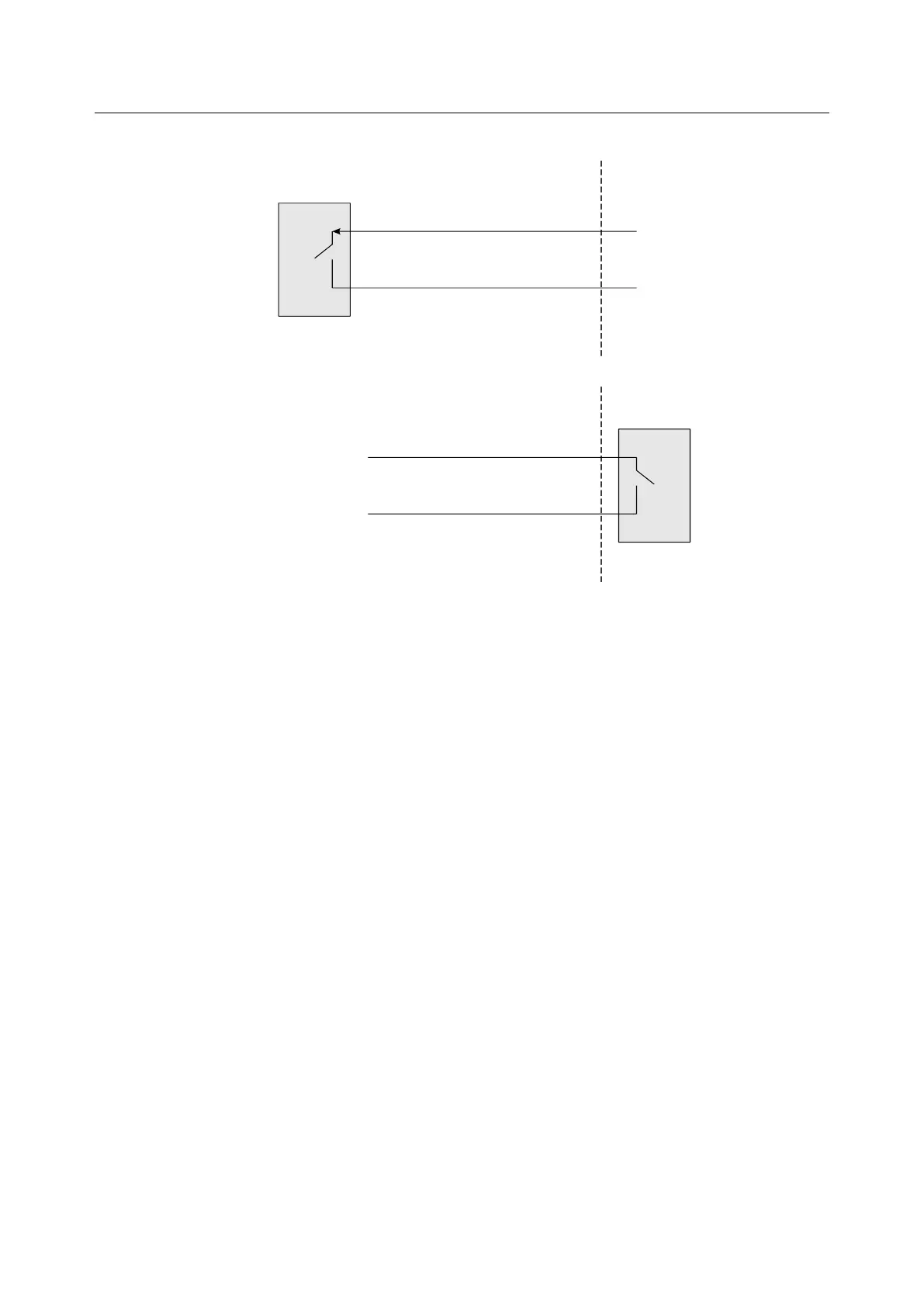

Figure 1-18 Operation diagram of Housekeeping Inputs and Alarm Contact Output
Note —The maximum current and voltage for ALMOUT / ALMCOM is restricted to 0.5 A
30 VDC or 0.15 A 125 VAC (resistive load).
