Insertion of Power Module
Before inserting the power module into the chassis, make sure:
• The module power switch is turned off.
• The power cord is disconnected from the AC power receptacle.
To insert the power module, hold the handle and push it into the chassis until it is seated in the chassis properly.

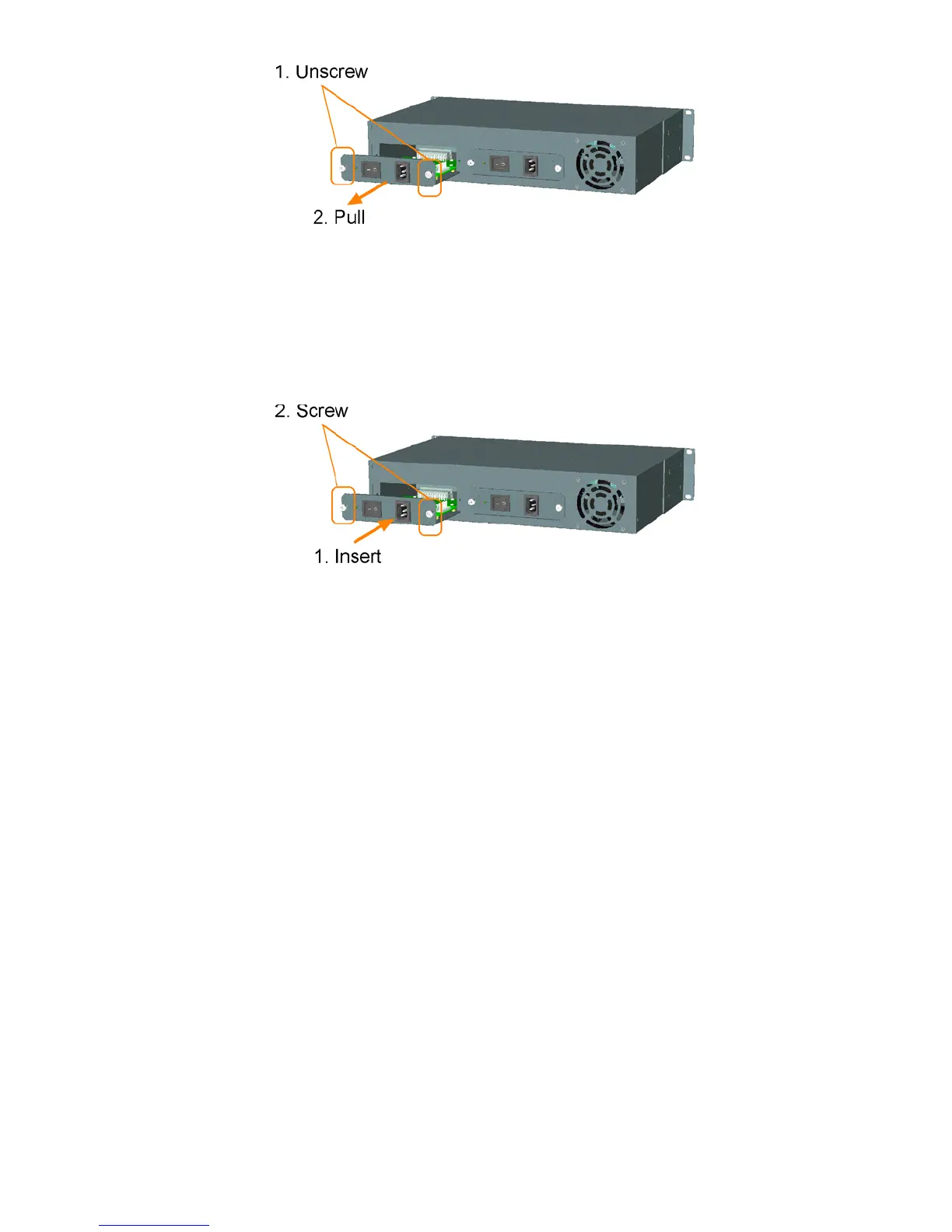

Screw the module securely in the chassis unit. See figure below:
The power module is designed to be hot plugged into or unplugged from the system even when another power
module is installed in another power slot and in operation.
