EVX-539 OpErating Manual4
BEForE You BEgIn
To remove the battery, turn the radio off and re-
move any protective cases. Slide the Battery Pack
Latch on the bottom of the radio toward the front
panel while sliding the battery down about 1/2
inch (1.5 cm). Then lift the battery out from the
radio.
Do not attempt to open any of the re-
chargeable Lithium-Ion packs, as they
could explode if accidentally short-circuited.
Battery Pack Installation and Removal
To install the battery pack, align the battery pack
to the radio with an offset about 1/2 inch (1.5 cm)
from the top edge of battery compartment, then
slide the battery pack upward until it locks in
place with a “Click.”
Battery Charging
Remove the Spacer Plate from the nest of the
optional
CD-58
Desktop Charger, if the Battery
Spacer is installed.
Insert the DC plug from the optional
PA-55
AC
Adapter into the DC jack on the rear panel of the
optional
CD-58
Desktop Charger, and then con-
nect the
PA-55
AC Adapter to the AC line outlet.
Insert the battery pack into the
CD-58
Desktop
Charger while aligning the slots of the battery
pack with the guides in the nest of the
CD-58
;

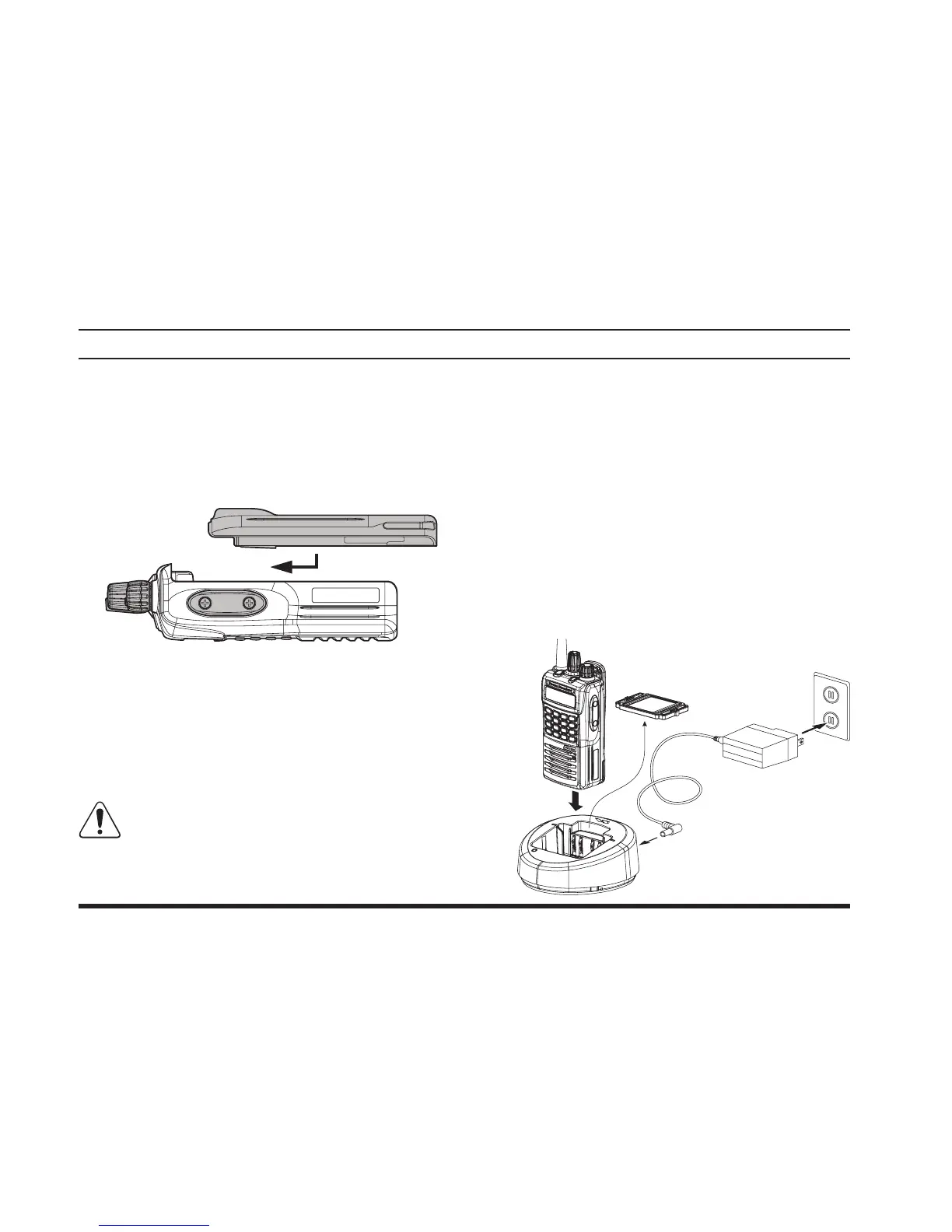

refer to the following illustration for details on
PA-55
CD-58
Spacer Plate
AC Line Outlet
