EVX-S24 UHF Digital/Analog Transceiver Service Manual 15

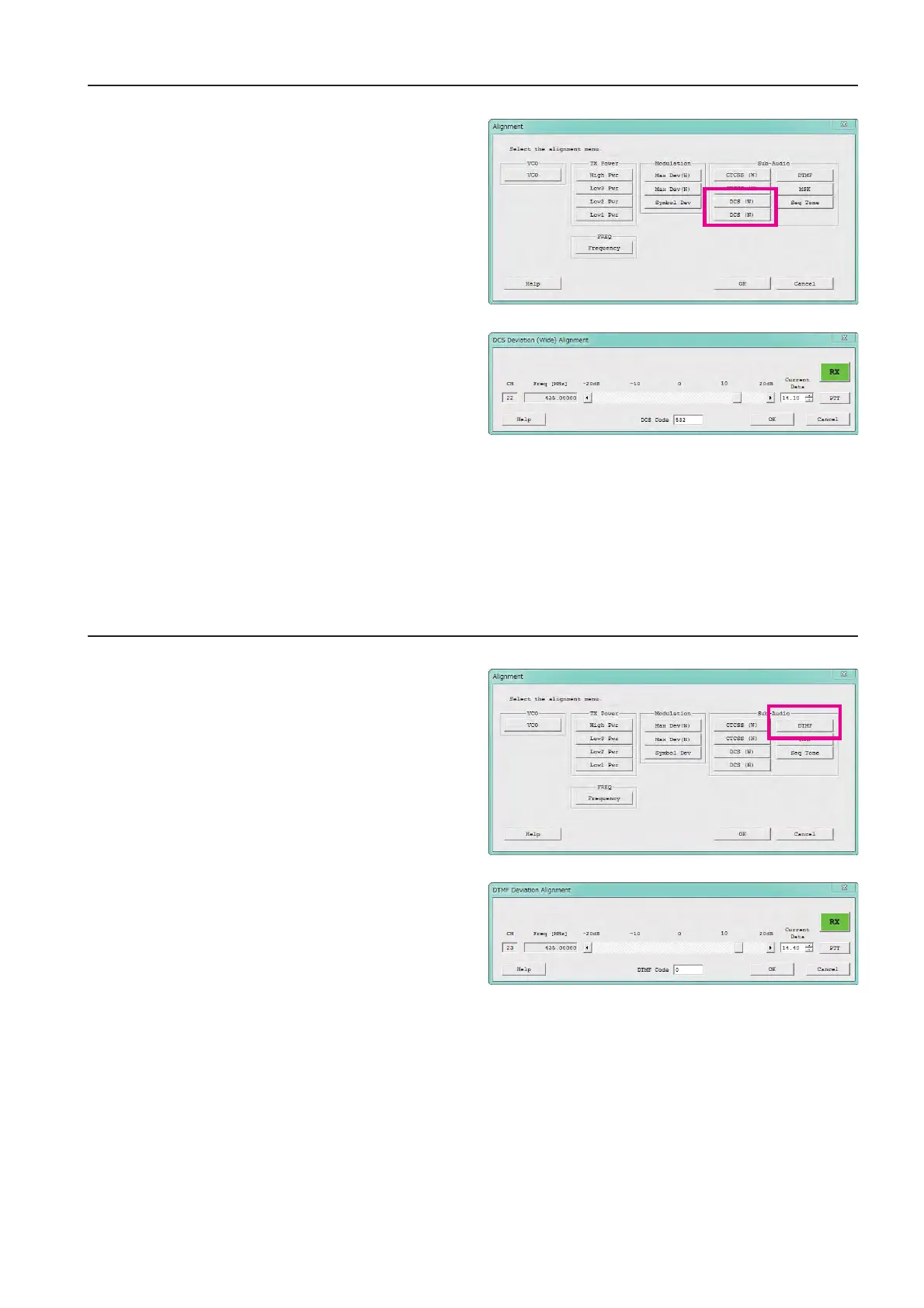

DCS DEVIATION <WIDE> / <NARROW>
This parameter is to align “DCS Deviation” of the selected channel.
1. Press the “DCS (W/N)” button to open the “DCS Devia-
tion Alignment” window.
2. Click the “PTT” button or press the “SPACE” bar of the
computer’s keyboard to transmit the radio.
3. Set the value to get desired deviation (Nominal: Wide: 0.6
kHz, Narrow: 0.4 kHz) on the deviation meter according
to the following ways:

Dragging the slide bar

Clicking the arrow
(

/

)
buttons

Pressing the left/right arrow key of the computer’s
keyboard

Entering the value (“–20.00” - “20.00”) in the “Cur-
rent Data” box from the computer’s keyboard
4. After getting the desired deviation, click the “PTT” but-
ton or press the “SPACE” bar to stop transmitting.
5. Click the “OK” button to finish the DCS Deviation
alignment and save the data.
You may align the deviation level by any DCS code (default:
532) by changing the value of the “DCS Code” box located
at the bottom of the screen, if needed.
Alignment
DTMF DEVIATION
This parameter is to align “DTMF Deviation”.
1. Press the “DTMF” button to open the “DTMF Deviation
Alignment” window.
2. Click the “PTT” button or press the “SPACE” bar of the
computer’s keyboard to transmit the radio.
3. Set the value to get desired deviation (Nominal: 3.0
kHz) on the deviation meter according to the following
ways:

Dragging the slide bar

Clicking the arrow
(

/

)
buttons

Pressing the left/right arrow key of the computer’s
keyboard

Entering the value (“–20.00” - “20.00”) in the “Cur-
rent Data” box from the computer’s keyboard
4. After getting the desired deviation, click the “PTT” but-
ton or press the “SPACE” bar to stop transmitting.
5. Click the “OK” button to finish the DTMF Deviation
alignment and save the data.
You may align the deviation level by any DTMF tone (de-
fault: “0”, available selection: “0” - “9”, “A” - “D”, “E(*)”,
and “F(#)”) by changing the value of the “DTMF Code”
box located at the bottom of the screen, if needed.


