Vertex Standard VX-146 Service Manual

3

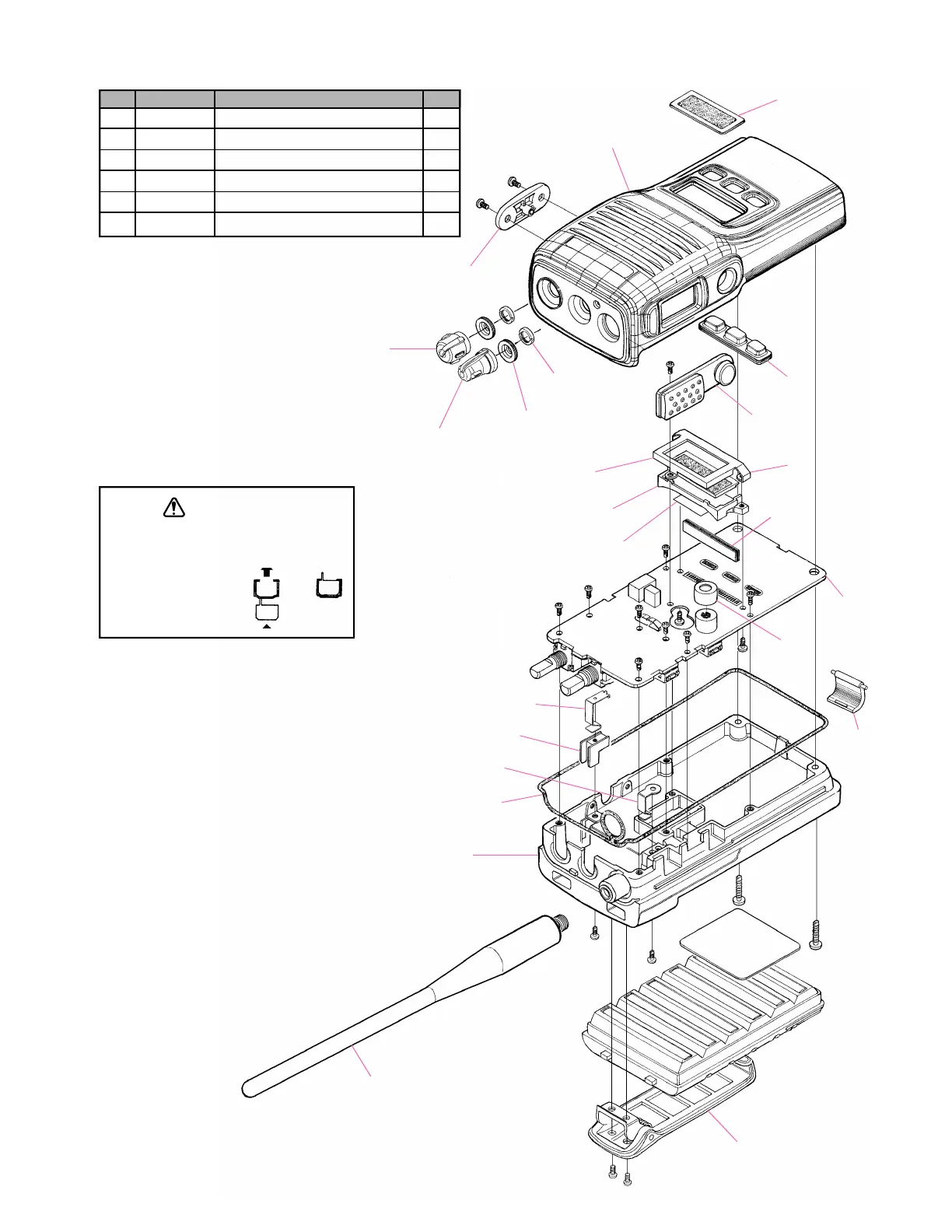

Exploded View & Miscellaneous Parts
RA0413500
FRONT CASE ASSY
(with PTT KNOB and WINDOW)
RA0294800
INTER CONNECTOR
RA0294300
RUBBER PACKING
RA0406500
RUBBER KNOB
RA0123500
LATCH NAIL B
RA0173500
CAP
MAIN Unit
RA0406400
REAR CASE ASSY
(w/TERMINAL PLATE (–),
PAN HEAD SCREW M2X3NI)
TERMINAL PLATE (–)
RA0294500
LIGHT GUIDE
RA0351700
TERMINAL PLATE (+)
RA010340A
TERMINAL HOLDER
Å
Ã
À
À
Á
Â
Â
R6147510
RING NUT (x 2 pcs)
RA0296100
VOLUME KNOB
RA0296200
KNOB (CH)
RA0210900
WINDOW
G6090139
LCD
RA0110200
HOLDER RUBBER
RA0210600
RUBBER PACKING (x 2 pcs)
RA0294200
PTT KNOB
RA0438200
LCD HOLDER
RA033490A
REFLECTOR SHEET
Ä
CP7468001
BELT CLIP ASSY
CAUTION
The mic element must be desoldered and
removed from the PCB on order to rein-
stall its protective rubber cover.
Therefore, be careful
not to remove this
cover unless mic el-
ement replacement
is necessary.
À
Á
À
À
À
À
À
À
À
À
Á
Ã
Ä
RA028910A
ANTENNA
REF. VXSTD P/N Description Qty.
À U44104002 TAPTITE SCREW M2X4NI 10
Á U44104002 TAPTITE SCREW M2X4NI 2
 U20206007 BINDING HEAD SCREW M2.6X6B 2
à U24110002 TAPTITE SCREW M2X10NI 2
Ä U02206007 SEMS SCREW SM2.6X6B 2
Å U00103002 PAN HEAD SCREW M2X3NI 1
