Vertex VX-920 Series - Exploded View & Miscellaneous Parts

3
VX-920/-920E VHF series Service Manual

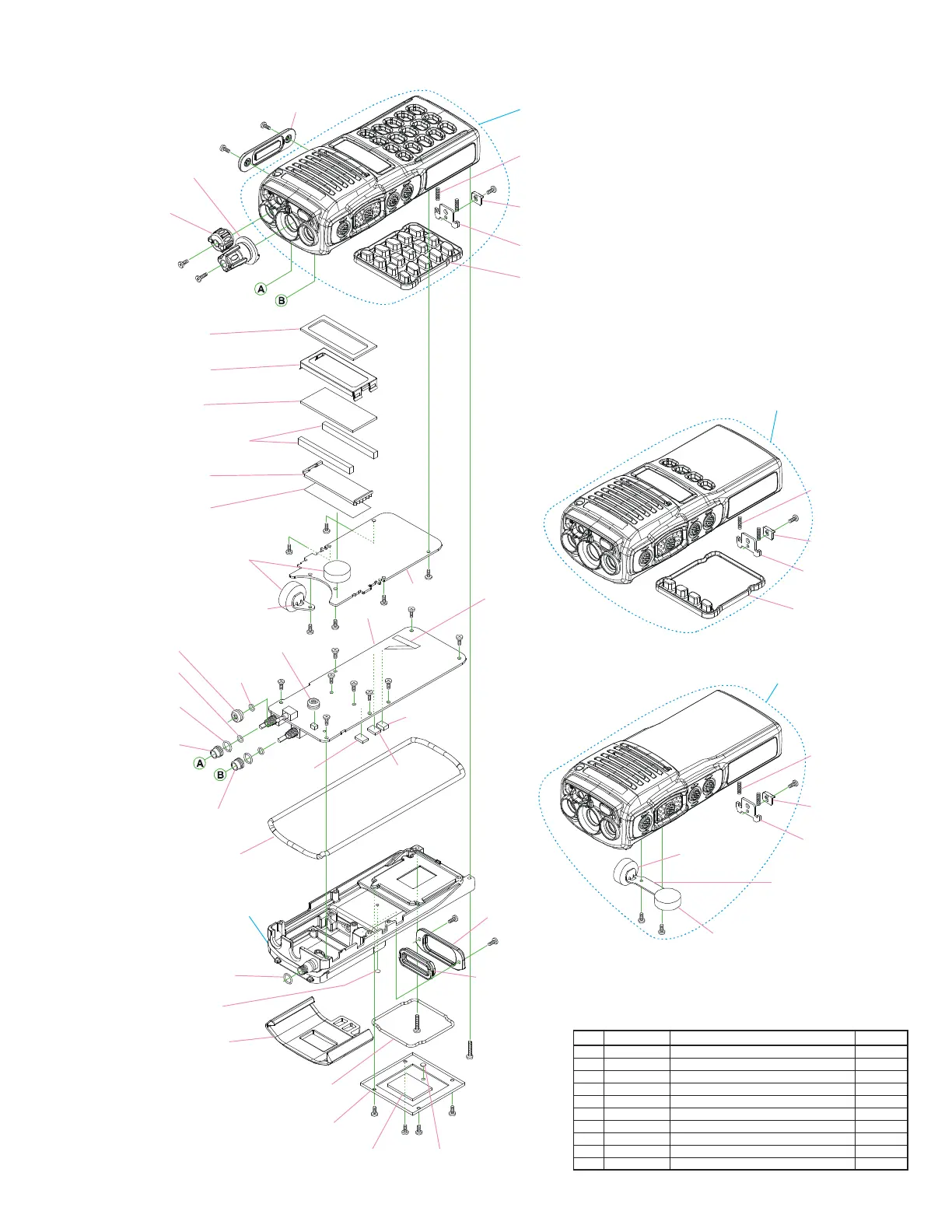

Exploded View & Miscellaneous Parts
Non-designated parts are available only as
part of a designated assembly.
RA0993500
LATCH PLATE
RA0688700
LATCH NAIL
RA0745400 (x2 pcs)
COIL SPRING
RA060170B
ROTARY KNOB
(VOL)
RA068970A
FRAME
RA0689100
LIGHT GUIDE
G6090163
LCD
RA0699300
SPONGE RUBBER (LCD)
MAIN UNIT
RA060450B
SPECIAL NUT (M)
RA060460B
SPECIAL NUT (L)
RA0603600 (x2 pcs)
O RING (1x4.2)
RA0603700 (x2 pcs)
O RING (1.8x7)
RA0607300
O RING (1.8x5.3)
RA0688800
COVER (BACK)
RA068950B
COVER (ACS)
RA0663600
GASKET (CASE)
RA0663500
GASKET (ACS)
RA0727900
HOLDER PLATE (MIC1)
CP8199001(Waterproof:STD)
CP8199002(Waterproof:MIL 6ft/3h)
REAR CASE ASSY
(O RINGx2pcs, SHEET)
RA0689600
WASHER
CP8249003 (Waterproof:STD)
CP8249006 (Waterproof:MIL 6ft/3h)
PANEL ASSY (16 KEY)
RA0698000
REFERECTOR SHEET
RA0697900
SHEET (FET)
RA0738800 (x2 pcs)
PAD (MIC3)
RA0681900
HOLDER PLATE (POW)
T9207204
WIRE ASSY
RA0664000
RUBBER PACKING (POW)
RA0697400
PAD (ACS)
RA0731400
SHEET (9.5X4 M TEX)
DISPLAY UNIT
RA061150B
ROTARY KNOB (CH)


RA060180A
SIDE COVER

























RA0731500
PAD (E1)
CP8249001 (Waterproof:STD)
CP8249004 (Waterproof:MIL 6ft/3h)
PANEL ASSY (NO KEY)
RA0738800
PAD (MIC3)
RA0738800
PAD (MIC3)
RA0993500
LATCH PLATE
RA0688700
LATCH NAIL
RA0745400 (x2 pcs)
COIL SPRING
RA072800A
HOLDER PLATE
(MIC2)



1: w/ LCD, 2: w/o LCD
SPECIAL SCREW
PAN HEAD SCREW
PAN HEAD SCREW
PAN HEAD SCREW
PAN HEAD SCREW
TAPTITE SCREW
TAPTITE SCREW
HEX SOCKET BOLT
TAPTITE SCREW
TAPTITE SCREW
Ref.










(M2.6X5)
M2X3NI
M2X3BSUS #2
M2X3.5 SUS #2
M2X6 SUS #2
M2X4NI
2X10SUS
M2X6BSUS
M2X5NI #2
2X6 SUS #2
Qty.
2
1
1
4
2
8
2
2
5
1
(
2
)
2
1
2
VXSTD P/N
RA0606200
U00103002
U07230227
U07A35220
U07A60220
U44104002
U44110020
U51106027
U9900094
U9900189
Description
RA0663400
RUBBER PACKING (TOG)
RA0712300
HOLDER RUBBER (SW)
RA0731600
PAD (E2)
RA0662800
RUBBER KNOB (16KEY)
RA0663700 (x2 pcs)
INTER CONNECTOR
RA072910A
BLIND SHEET

CP8249002 (Waterproof:STD)
CP8249005 (Waterproof:MIL 6ft/3h)
PANEL ASSY (4 KEY)
RA0993500
LATCH PLATE
RA0688700
LATCH NAIL
RA0745400 (x2 pcs)
COIL SPRING
RA070340A
RUBBER KNOB (4KEY)

