VX-920/-920E VHF series Service Manual

Cable Unit

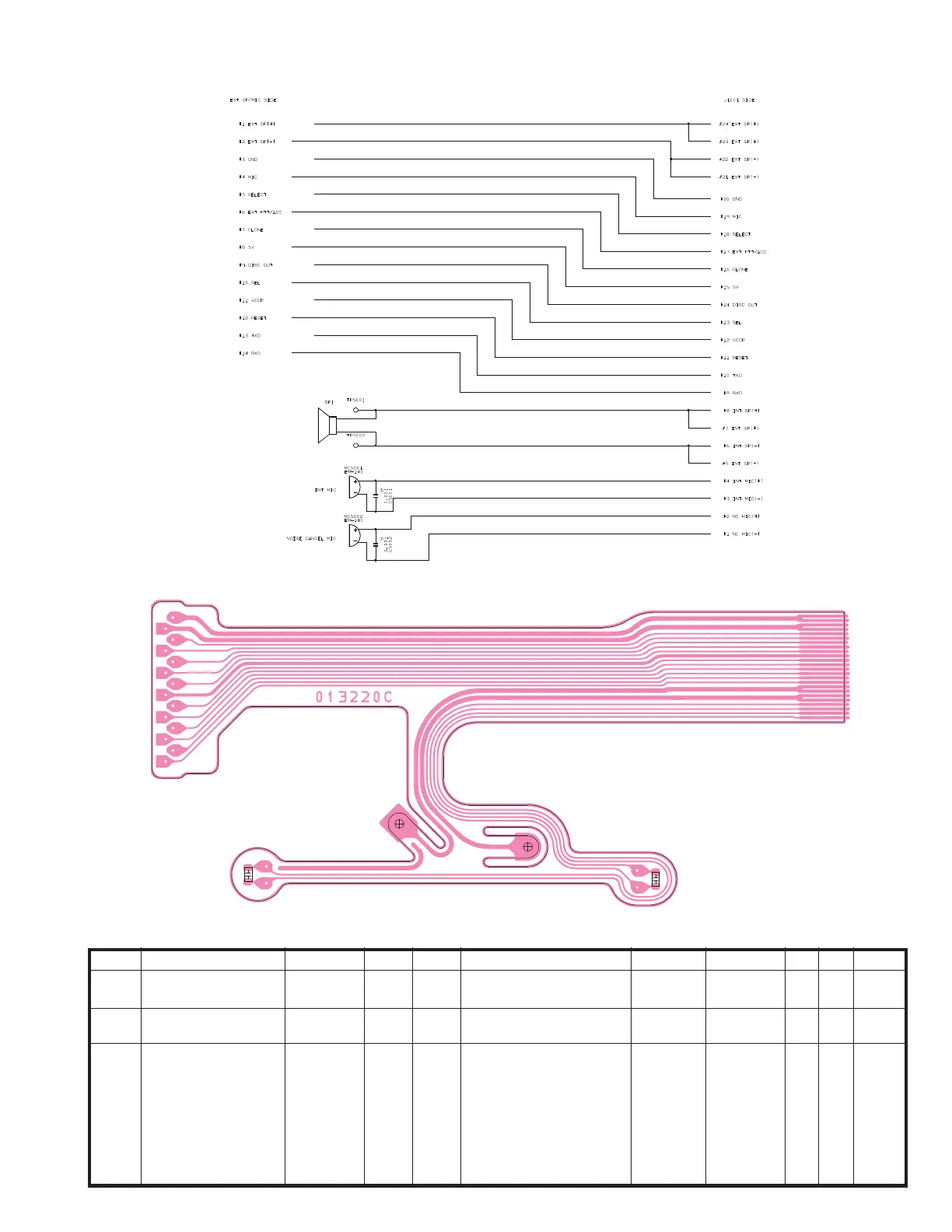

Circuit Diagram

Parts List

Parts Layout

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.REF. LOT. SIDE

LAY ADR

C 5001 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1-

C 5002 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1-

MC5001 MIC. ELEMENT EM-140 M3290032 1-

MC5002 MIC. ELEMENT EM-140 M3290032 1-

MIC HOLDER RUBBER (C) RA0725900 1-19

MIC HOLDER RUBBER (Type3) RA0868600 20-

BLIND SHEET (MIC) RA0849700 20-

SUPPORT (MIC1) RA0880000 20-

SPONGE RUBBER (MIC1) RA0856200 20-

SUPPORT (MIC2) RA0880100 20-

SPONGE RUBBER (MIC2) RA0880700 20-

Vertex VX-920 Series - Cable Unit
