When done, the CRT Interface window displays Data transfer completed.

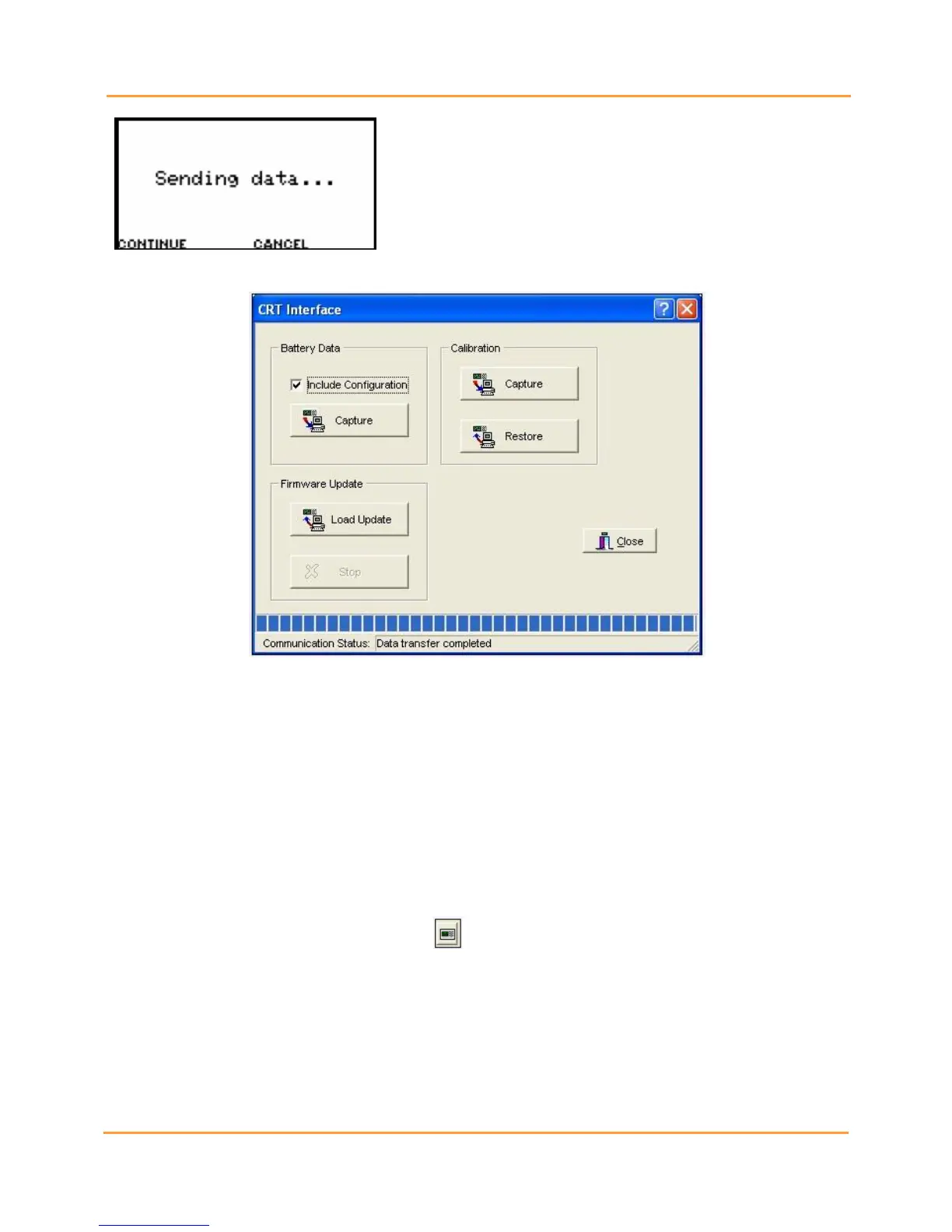

Figure 75 - BAS/CRT Interface Data Transfer Completed
4. Click Close.
Once, finished, select F3/Cancel twice to go back to the main menu on the CRT.
In the BAS software’s main menu, select File then Save, type the file name in the box provided, and click
Save to store the .ADF file under Programs/Alber/Alber Battery Analysis/Cellcorder ADF Files.
15.7. Sending Readings Via Bluetooth Wireless
Note: Discovering, pairing, and setting up the COM Port for Bluetooth devices on the PC and within the
BAS software needs to be done first. If the PC displays the Bluetooth PIN Code Request box, type the
Bluetooth PIN code 0000 and click OK.
1. Start the BAS program, then click the Start the Cellcorder Interface button. The Select
Cellcorder window appears. Select CRT and click OK.
