Appendix: UPS Installation Guide

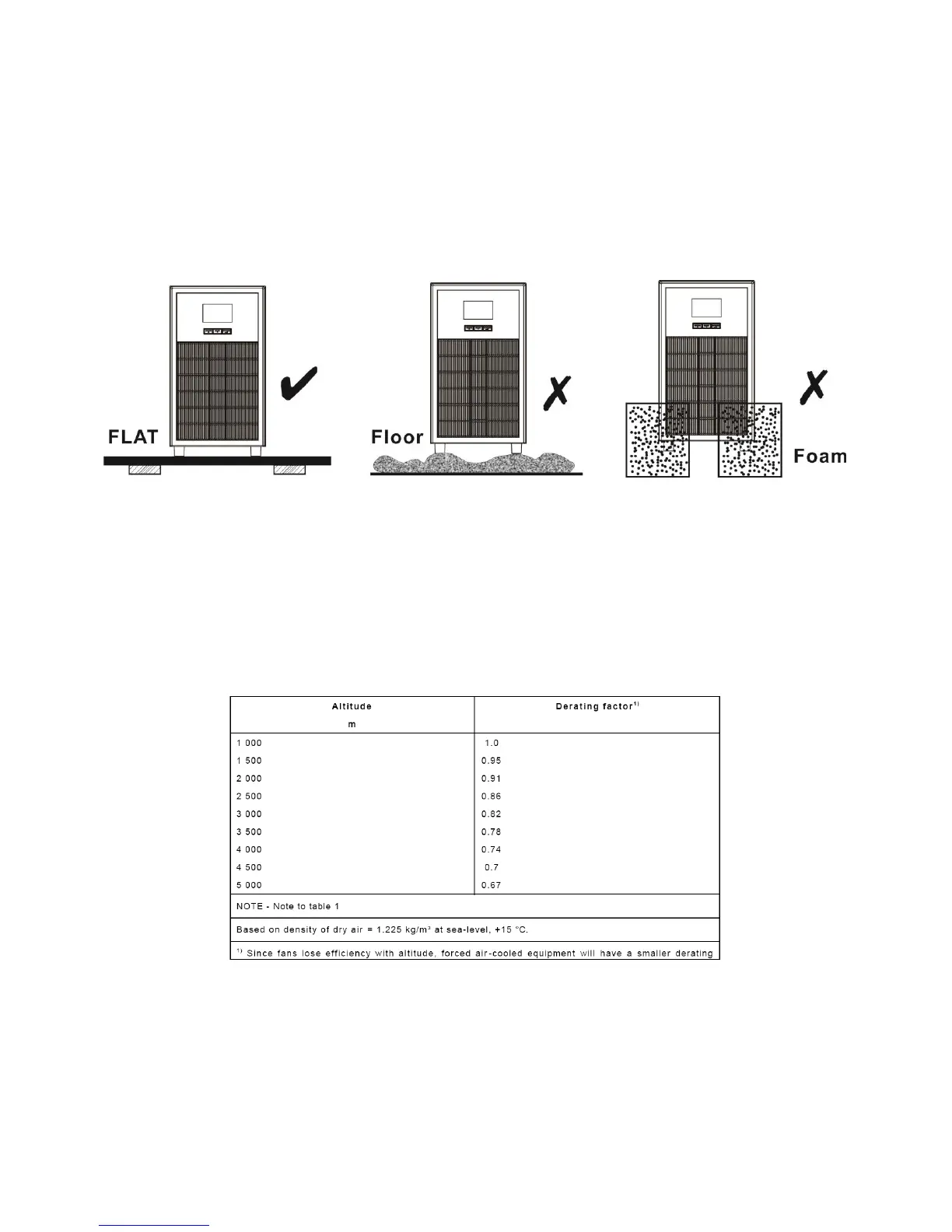

1. UPS should be placed on the flat and clean surface. Place it in an area away from vibration,
dust, humidity, high temperature, flammable liquids, gases, corrosive and conductive
contaminants. Install the UPS indoors in a clean environment, where it is away from window
and door. Maintain minimum clearance of 100mm in the bottom of the UPS to avoid dust and
high temperature.
2. Maintain an ambient temperature range of 0ºC to 45ºC for UPS optimal operation. For every
5ºC above 45ºC, the UPS will derate 12% of nominal capacity at full load. The highest working
temperature requirement for UPS operation is 50ºC.
3. It’s required to maintain maximum altitude of 1000m to keep UPS normal operation at full load
UPS. If it’s used in high altitude area, please reduce connected load. Altitude derating power
with connected loads for UPS normal operation is listed as below:
4. Use supplied RS-232 or USB communication cable to connect RS-232/USB port of UPS and
RS-232/USB port of PC. After installing ViewPower in PC, it can remote monitor UPS.
