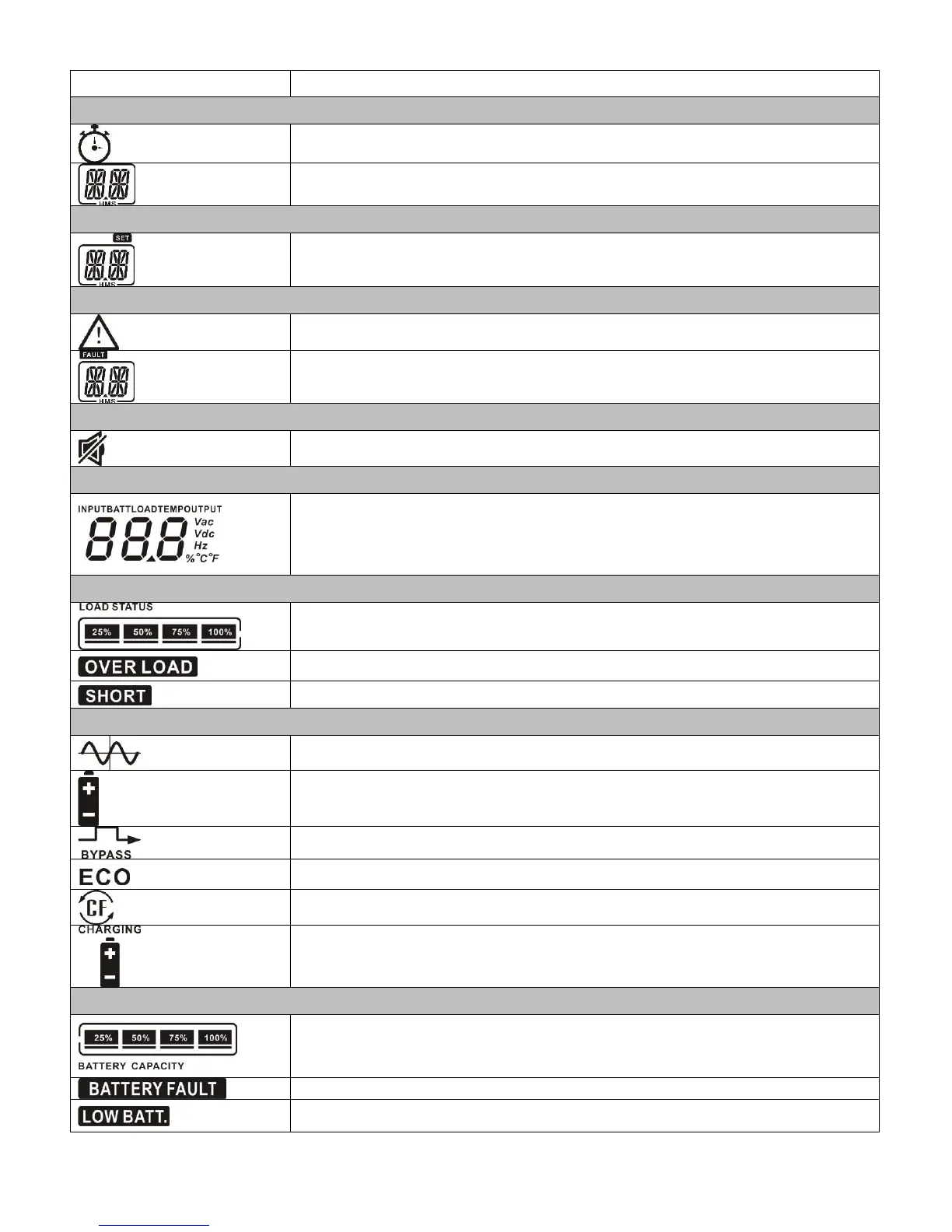

Remaining backup time setting and information
Indicates the remaining backup time in pie chart.
Indicates the remaining backup time in numbers.
H: hours, M: minute, S: second
Indicates the setting operation.
Fault & warning information
Indicates that the warning situation occurs.
Indicates the warning and fault codes, and the codes are listed in
details in 3-5 section.
Indicates that the UPS alarm is disabled.
Indicates the input and output voltage, frequency, battery voltage,
load information, and internal temperature.
Vac: input/output voltage, Vdc: battery voltage, Hz: frequency, %: load level,
°C/°F: temperature,
Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates the load or the UPS output is short circuit.
Mode operation information
Indicates the UPS is in online mode.
Indicates the UPS is in battery mode.
Indicates the UPS is bypass mode.
Indicates the UPS is in ECO mode.
Indicates the UPS is in converter mode.
Indicates the UPS is charging battery.
Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and
76-100%.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
