REV : 2
REV DATE : 06/18
DPN004166
Page :1 /1

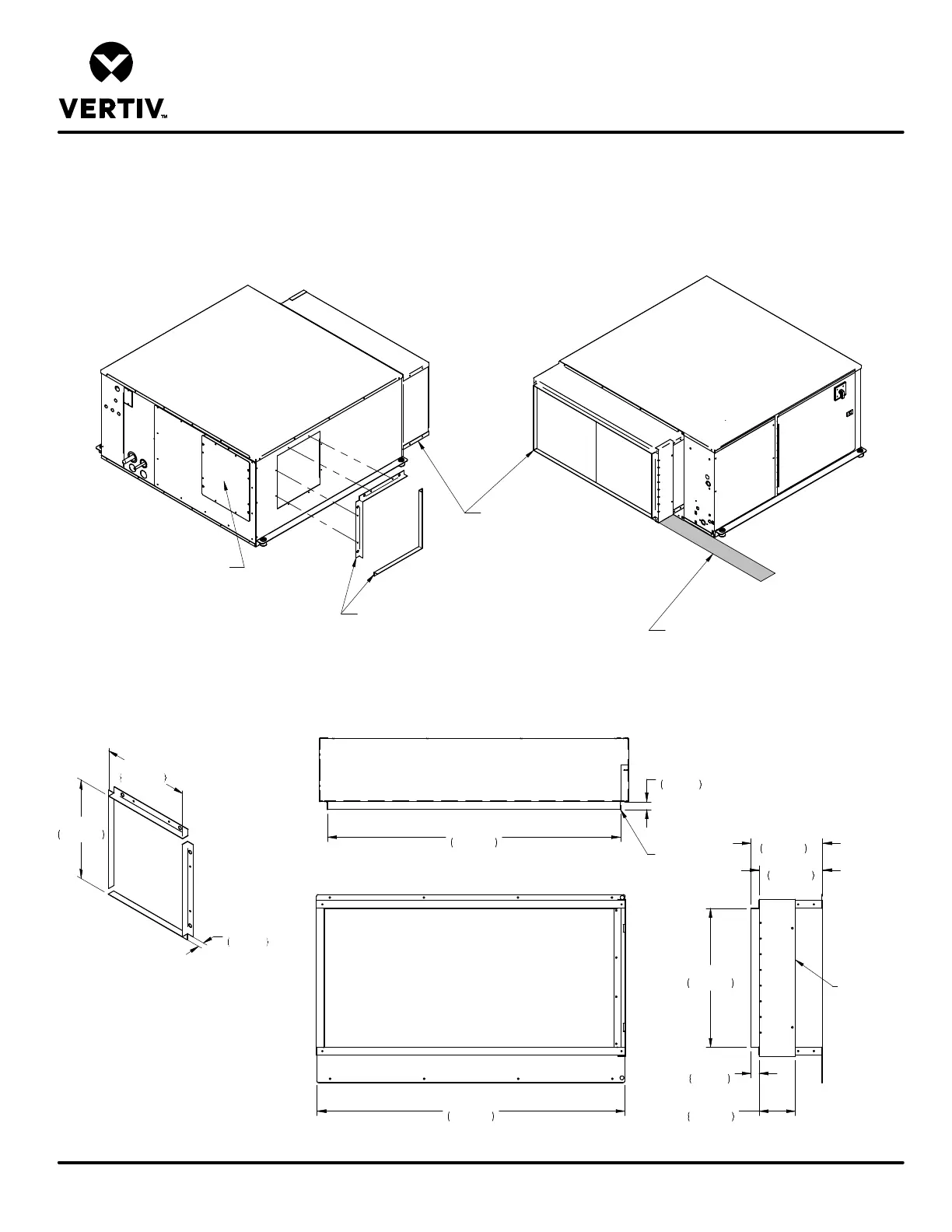

4 & 5 TON DIRECT EXPANSION FAN/COIL MODULE
OPTIONAL FILTER BOX & DISCHARGE DUCT FLANGE
Form No.: DPN001040_REV4
DIMENSIONAL DATA
LIEBERT MINI-MATE
VARIABLE CAPACITY
37 3/8"
949mm
1"
25mm
39 5/16"
998mm
9 1/8"
232mm
8"
205mm
1 1/16"
26mm
4 5/8"
117mm
Removable
Filter Access
Panel
Duct Flange
Front of Filter Box
Optional Filter Box
Discharge Air Duct Flange
Dimensional Details
13 3/8"
340mm
14 1/2"
368mm
1"
25mm
17 3/4"
450mm
Optional Filter Box
Alternate air discharge location
for duct flange. Remove panel
and cover rear discharge opening
before attaching duct flanges.
Discharge Air Duct Flange
Supplied with Filter Box
(shown on rear discharge)
Shaded area indicates a recommended
clearance of 30" (762mm) be provided
for component access and removal.
