REV : 2
REV DATE : 6/18
DPN004238
Page :1 /1

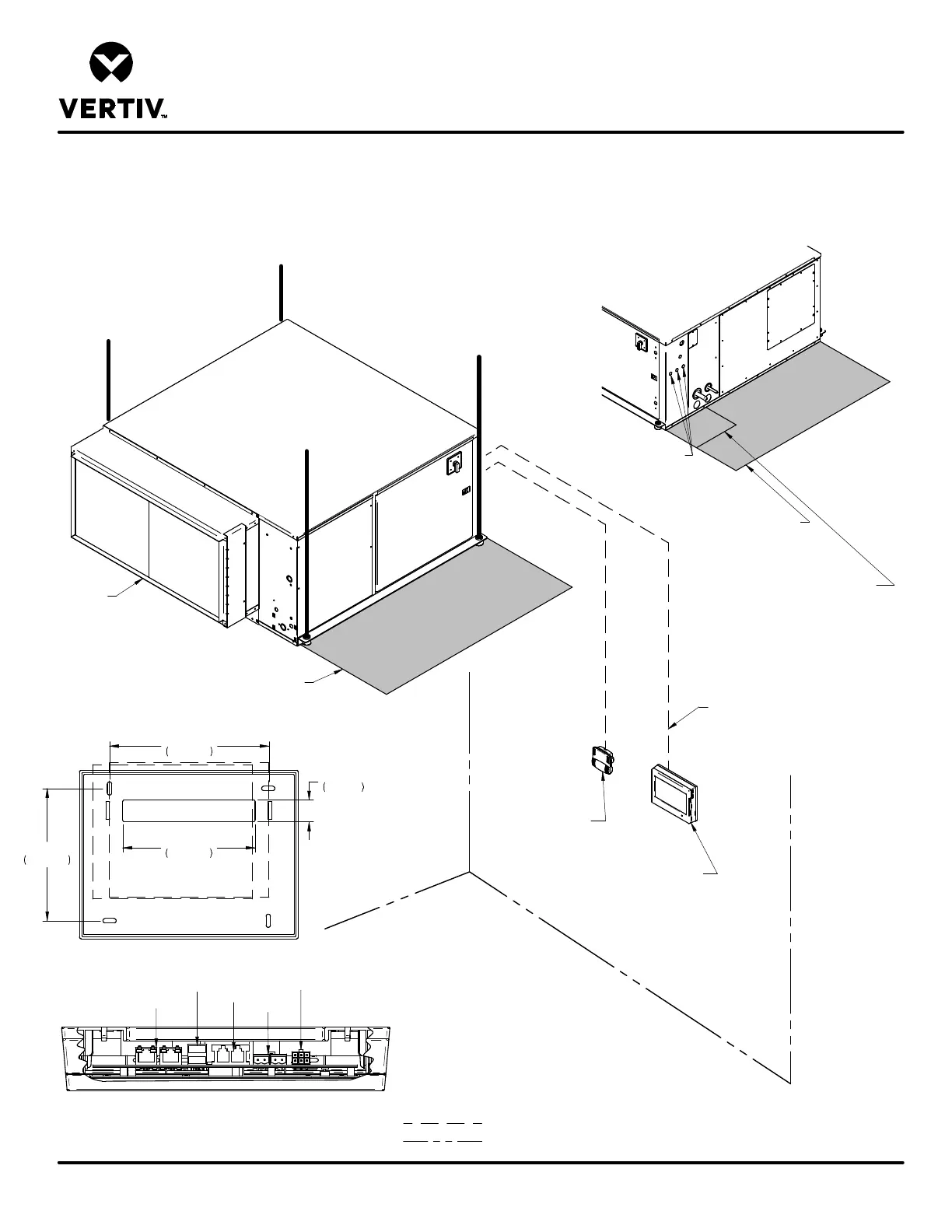

LIEBERT iCOM™ WALLMOUNT DISPLAY
Form No.: DPN001040_REV4
4 & 5 TON GENERAL ARRANGEMENT, DIMENSIONAL DATA
& FIELD CONNECTIONS
LIEBERT MINI-MATE
VARIABLE CAPACITY
Entrance for
Customer Low
Volt Connections.
Right Side
of Unit
Front
of Unit
Front
of Unit
Field Provided Wiring
Wall
Notes:
1. Refer to DPN004057 for connection points on Liebert Mini-Mate unit.
iCOM
Wall Display
POWER
485
CAN
USB
ETHERNET
WALL DISPLAY - DUST COVERS AND HARNESS NOT PICTURED FOR CLARITY
Rear view of iCOM Wall Display Case
7 1/8"
181mm
5 7/8"
150mm
5 7/8"
150mm
1"
25mm
Inlet and Outlet Opening for Power
& Commnunication Wires
Ethernet
Comms
and
Power Feed
Shaded area indicates a recommended clearance
of 30" (762 mm) for component access and removal.
Remote
Temperature
and Humidity
Sensor
Typical Installation
Optional Filter
Box Shown
Shaded area indicates
a recommended clearance
of 30" (762 mm) for fan
access and removal.
12" (305 mm) x 12" (305 mm)
recommended clearance for
unity card access and removal.
