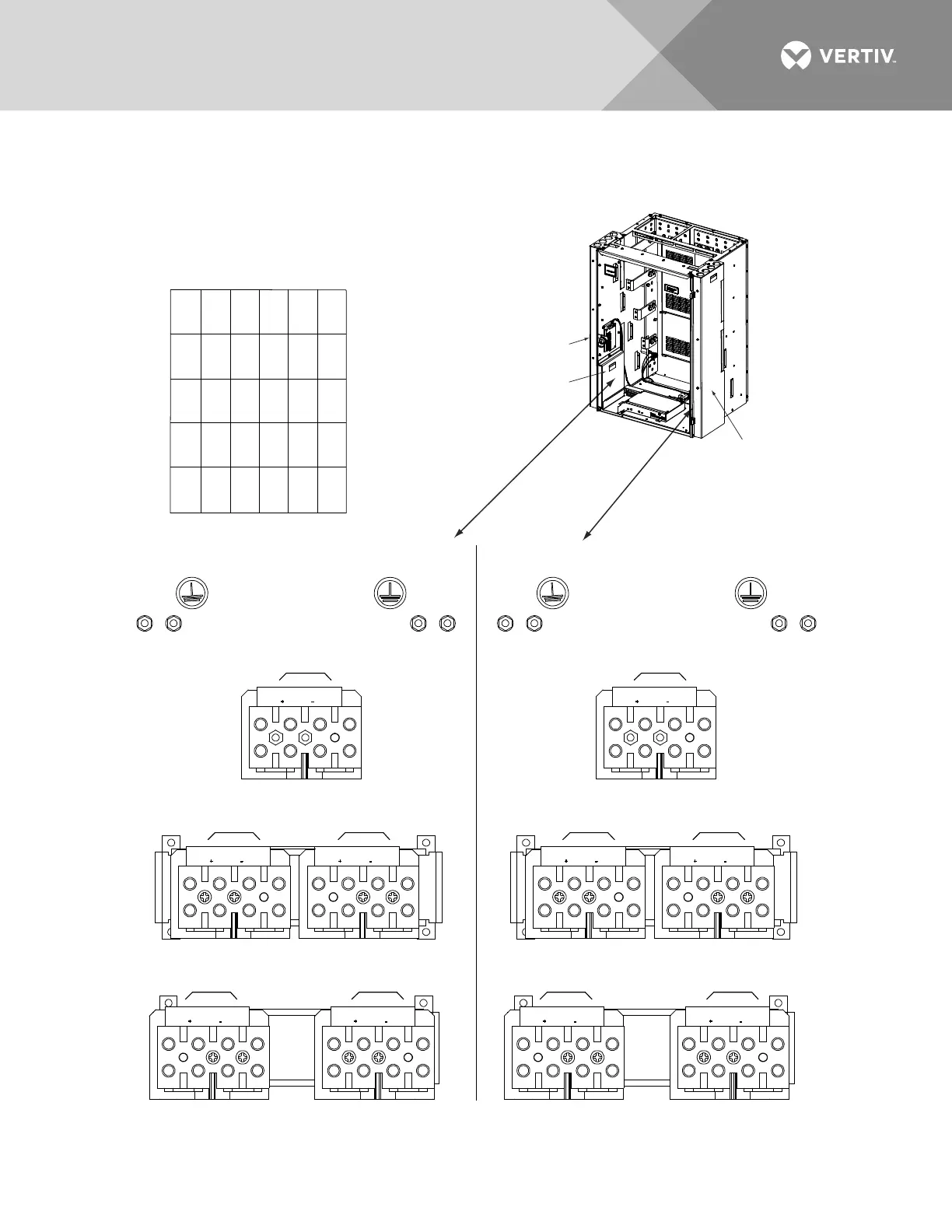

Figure 27: 400 Volts DC Input and Equipment Grounding Connections to DC Input Termination Assembly
582127000 List 47 (1 Feed per 3 Converters)
(4-Row Cabinet Shown,
Others Similar)
Front Door Removed in
Illustration for Clarity
DC INPUT CONNECTIONS,
1 FEED PER 3 CONVERTERS
(582127000 LIST 47)
Inside View
Left Side
Inside View
Right Side
NOTE:
WIRING TO A FIELD INSTALLED
SHELF IS DONE AT THE REAR
OF THE SHELF.
GND GND GND GND
DC Wireway
Cover
DC Wireway
Cover
DC Input
Connector Cover
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 1: Conv. #1 - #3
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 3: Conv. #1 - #3 SHELF 2: Conv. #1 - #3
Converter Module Mounting Slots
Shelf #1
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Shelf #2
Shelf #3
Shelf #4
Shelf #5
+ -
+ - + -
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 5: Conv. #1 - #3 SHELF 4: Conv. #1 - #3
+ -
+ -
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 1: Conv. #4 - #6
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 2: Conv. #4 - #6 SHELF 3: Conv. #4 - #6
+ -
+ - + -
400 VDC CONVERTER DC INPUT FEEDS
1 FEED PER 3 CONVERTERS
SHELF 4: Conv. #4 - #6 SHELF 5: Conv. #4 - #6
+ - + -
SHELF 1 CONV4-6
SHELF 2 CONV4-6 SHELF 3 CONV4-6
SHELF 4 CONV4-6 SHELF 5 CONV4-6
SHELF 1 CONV1-3
SHELF 3 CONV1-3 SHELF 2 CONV1-3
SHELF 5 CONV1-3 SHELF 4 CONV1-3
Note: For fewer power shelves than shown, only the connections for the installed shelves are present.
