Vertiv NetSure 7100 Series User Manual

Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T
54
Direct DC Input Connections to 588705000 List 41 Module Mounting Assemblies
Refer to Figure 28.

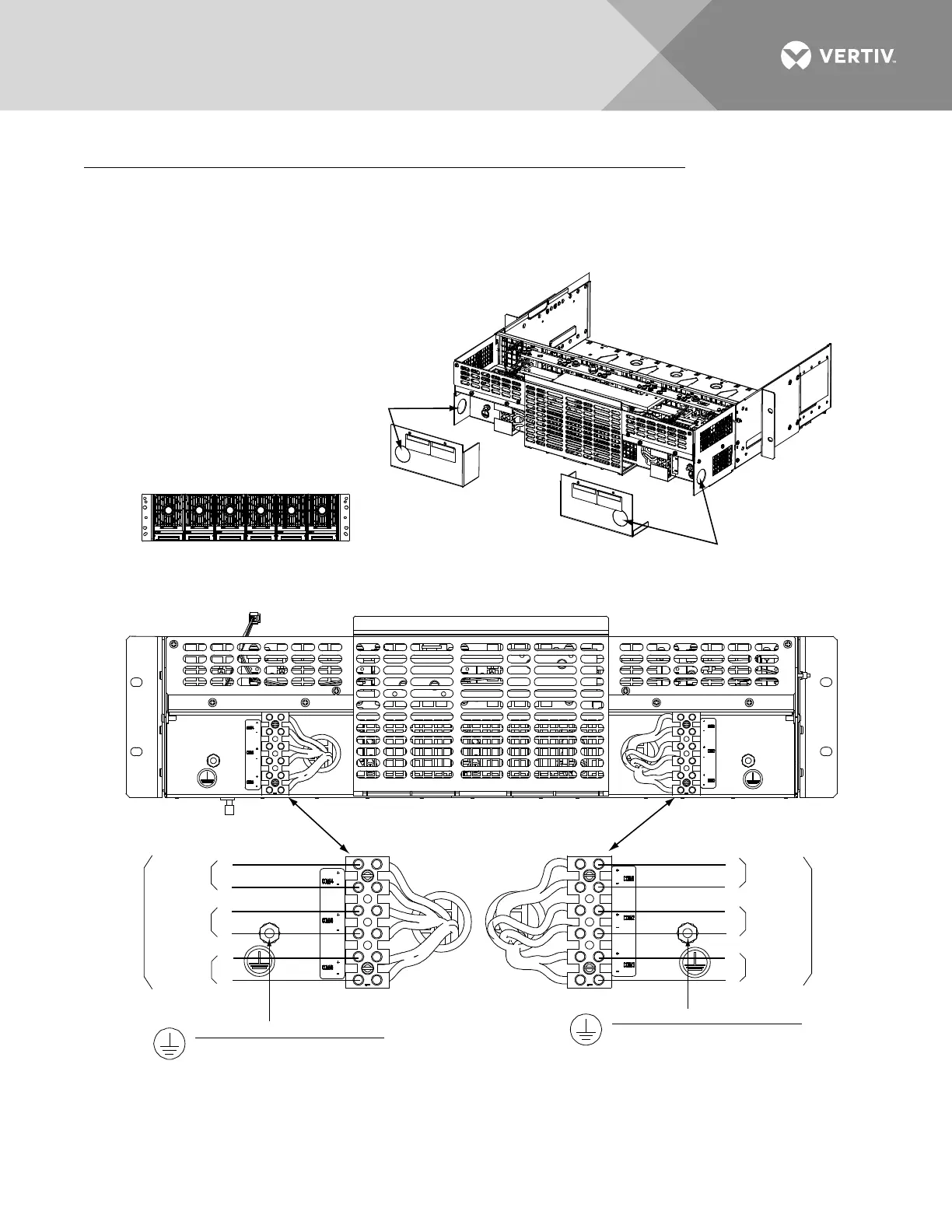

Figure 28: 400 Volts DC Input and Equipment Grounding Connections to Module Mounting Assembly
588705000 List 41 (1 Feed per 1 Converter)
Holes for 3/4"
Conduit Fitting
(Input)
Holes for 3/4"
Conduit Fitting
(Input)
Rear View
Rear View
Converter Module Mounting Slots
(front view)
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Wire Size Capacity: 10-20 AWG.
Recommended Torque: 10 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
+
-
+
-
400 VDC
IN
Converter
Module 4
Converter
Module 5
Converter
Module 6
Converter
Module 1
Converter
Module 2
Converter
Module 3
+
-
400 VDC
IN
+
-
+
-
+
-
INDIVIDUAL 400 VDC CONVERTER FEEDS
1 FEED PER CONVERTER
