* The relay assigned to “Critical Summary” alarm (Relay 1 on first IB2 by default)
will operate in the “Fail Safe Mode”. “Fail Safe Mode” means Relay 1 is de-energized
during an alarm condition, opening the contacts between the
C and NO terminals, and closing the contacts between the C and NC terminals.
The remaining seven (7) relays energize during an alarm condition, closing
the contacts between the C and NO terminals, and opening the contacts between
the C and NC terminals.
Refer to the configuration drawing (C-drawing) supplied with your system for your
system’s specific relay labeling.
Not all I/O points are available for customer connection (some are used for factory
system connections).
J3-J9:
Wire Size Capacity: 16-26 AWG.
Recommended Torque: 2.2 in-lbs.
MA4C5U31
IB2
DI1-
DI1+
DI2-
DI2+
DI3-
DI3+
J3
J4
J5
J6
J7
J8
J9
DI4-
DI4+
DI5-
DI5+
DI6-
DI6+
DI7-
DI7+
DI8-
DI8+
DO1_NC
DO2_NC
DO1_COM
DO2_COM
DO1_NO
DO2_NO
DO3_NC
DO4_NC
DO3_COM
DO4_COM
DO3_NO
DO4_NO
DO5_NC
DO6_NC
DO5_COM
DO6_COM
DO5_NO
DO6_NO
DO7_NC
DO8_NC
DO7_COM
DO8_COM
DO7_NO
DO8_NO
J11 1
J11 2
J11 3
J12 1
J12 2
J12 3
2
4
3
1
J2
6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1 6 5 4 3 2 1
STUPTUOYALER
STUPNILATIGID

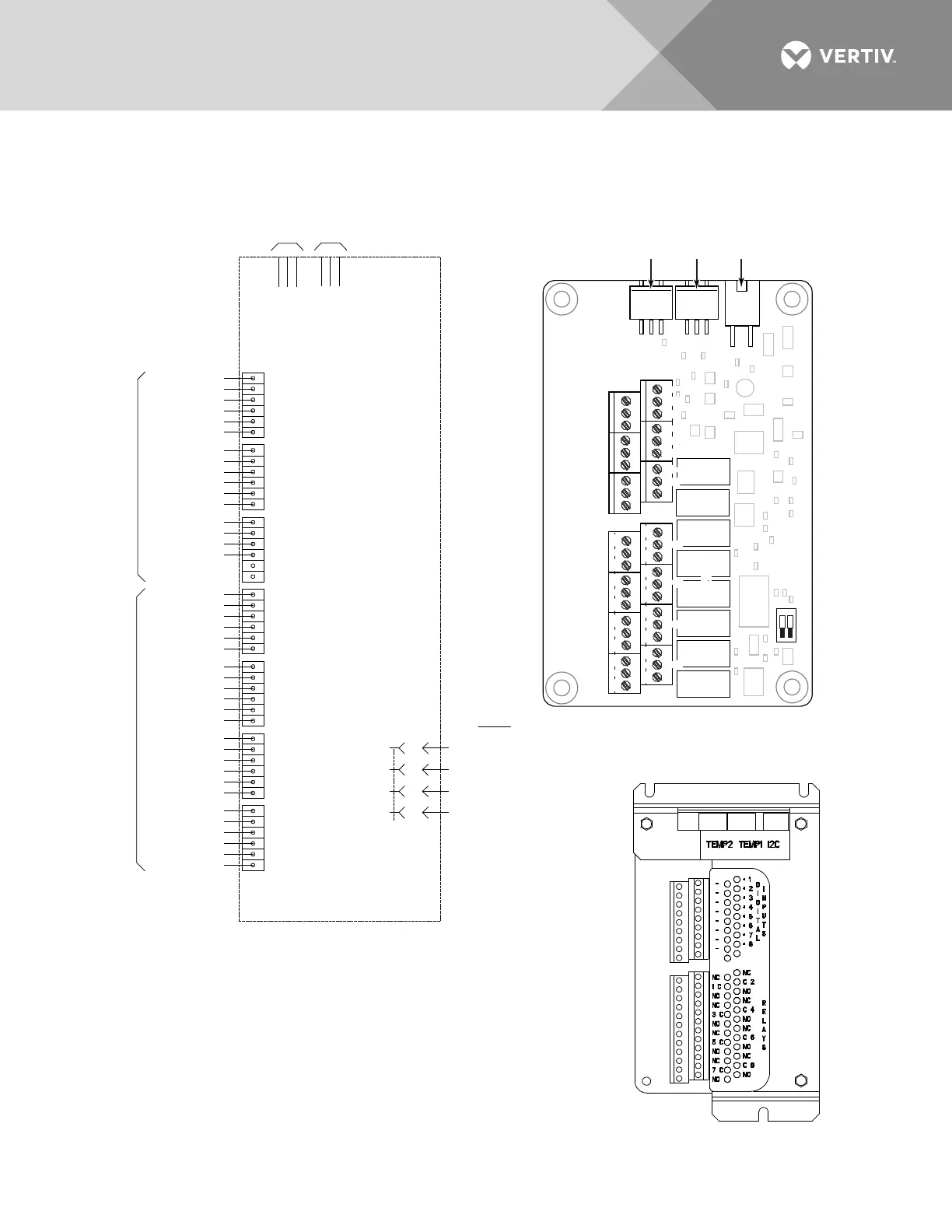

Schematic Diagram of IB2 Board
IB2 TEMP
PROBE 1
IB2 TEMP
PROBE 2
-
J12
*
8
7
6 5
4
3
2 1
RELAY
RELAY
7
J2
J11
5 3 1
Relay Output Terminal Blocks
Digital Input Terminal Blocks
J9 J8 J7
J6
J5 J4
8 6 4 2
J3
8 6 4
2
8 7 6 5 4 3
2 1
+
IB2 Board (Top View)
NO C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
NO
C NCNO C NC
5 3 1
46 2
5
3
1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
Connector
to Controller
IB2 TEMP
PROBRE 1
IB2 TEMP
PROBE 2
IB2 Board Assembly
SW1
OFF
ON
1
2
To Next Page
