Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T
90

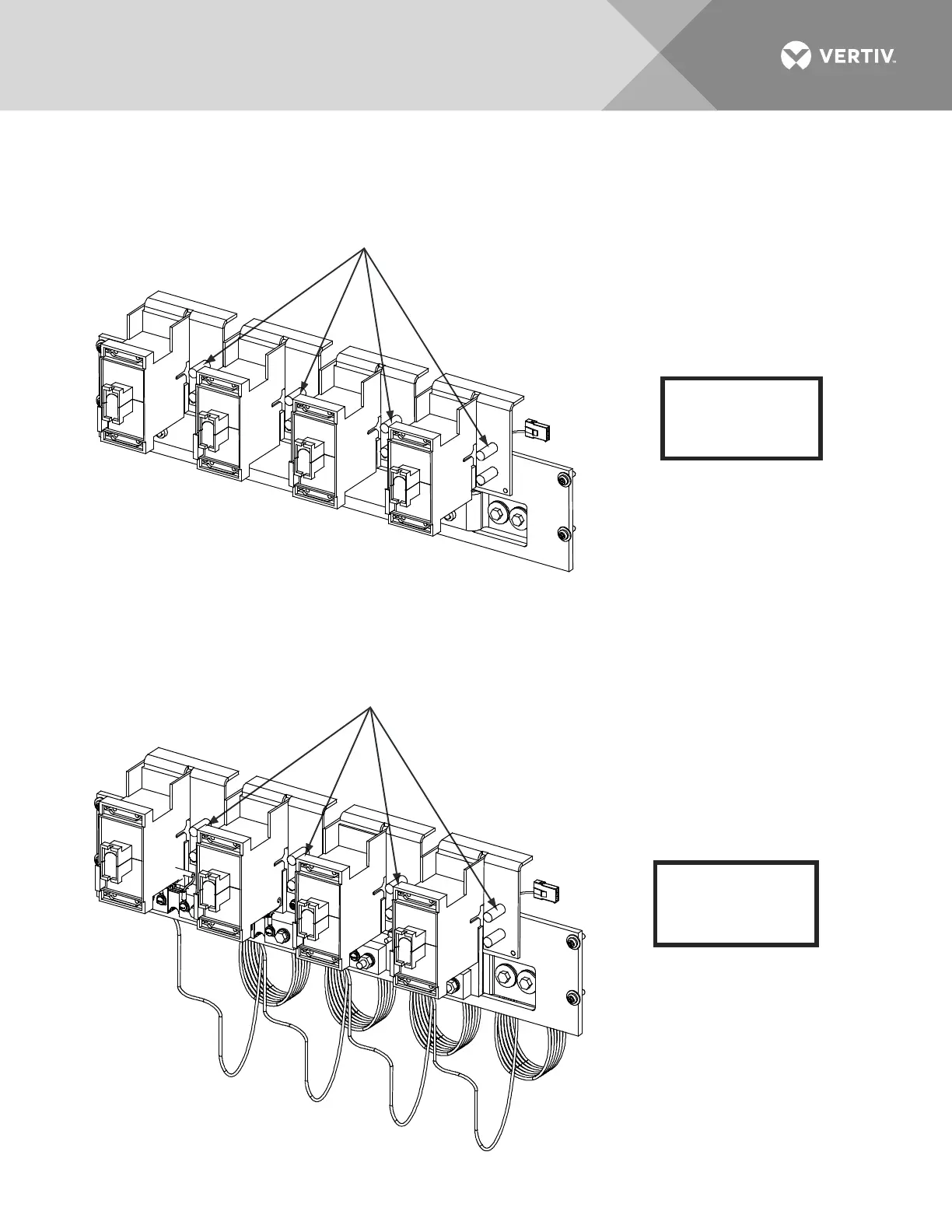

Figure 49:
List AJ: -48V Distribution Panel, (4) TPL-B Fuse Positions (without Shunts) (without Return
Busbar)
Figure 50:
List AK: -48V Distribution Panel, (4) TPL-B Fuse Positions (with Shunts) (without Return Busbar)
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Studs on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.5 inches.
Observe proper
polarity when making
load connections.
W
ARNING!
-48VDC Load
Connections
LOAD CONNECTIONS
3/8-16 Studs on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.5 inches.
Observe proper
polarity when making
load connections.
WARNING!
