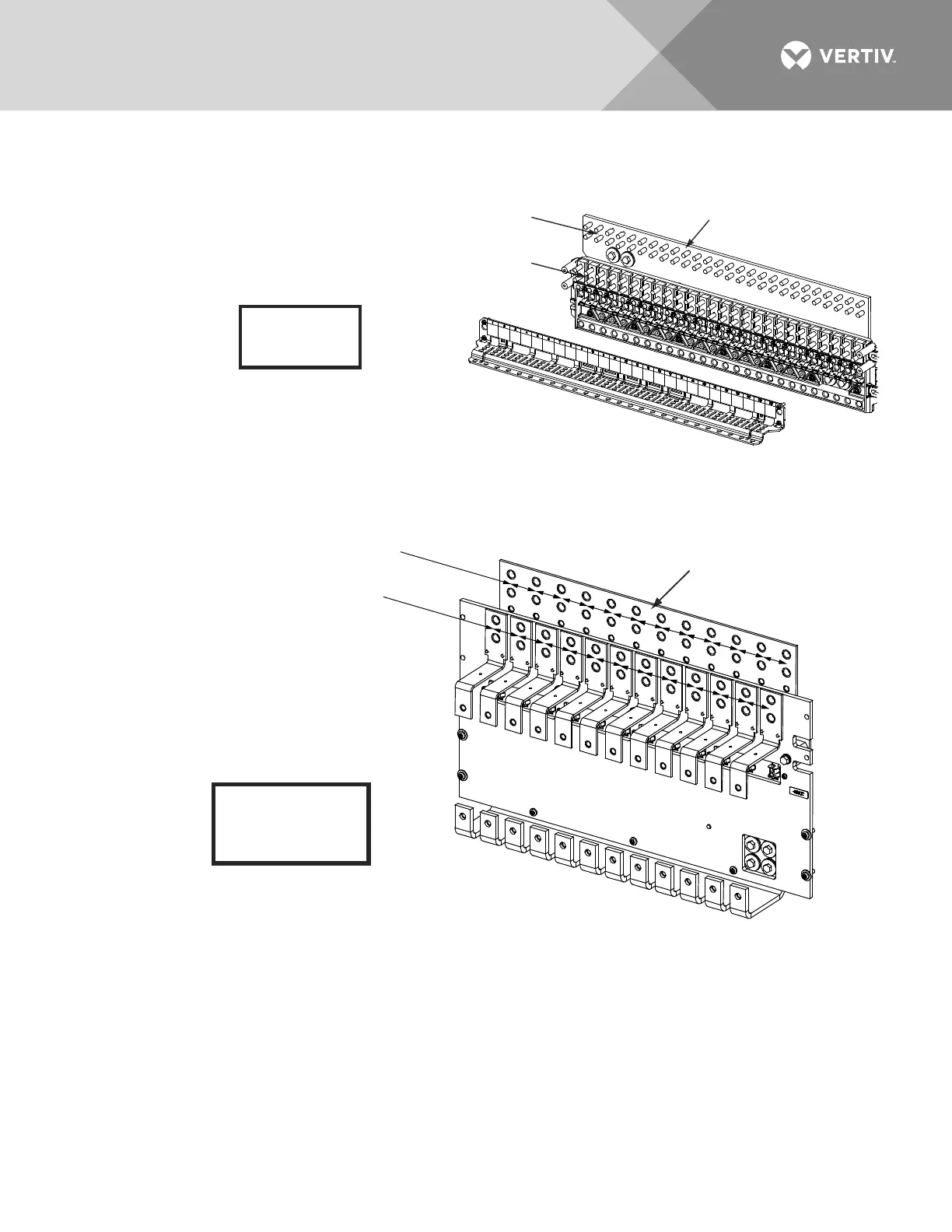

Figure 51: List AL and List AN: -48 VDC Distribution Panel, (26) Bullet/TPS/TLS Circuit Breaker/Fuse
Positions
Figure 52: List AM and List AP: -48 VDC Distribution Panel, (12) GJ/218 Circuit Breaker Positions
O
bserve proper
polarity when making
load connections.
WARNING!
-48 VDC Load
Connections
Load Return
Connections
LOAD AND LOAD RETURN CONNECTIONS
1/4-20 Studs on 5/8” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 0.625 inches.
Return Busbar
(not included with List AN)
Caution: A 100 A circuit breakers and fuses can be used without a space
provided the continuous operating current in each 100 A device does not
exceed 64 A. A 175 A or greater circuit breaker shall have an empty mounting position
between it and any other overcurrent protective device.
Observe proper
polarity when making
load connections.
W
ARNING!
Load Return
Connections
LOAD AND LOAD RETURN CONNECTIONS
3/8-16 Captive Nuts on 1” Centers
(Customer must supply or order additional hardware)
Maximum Lug Width: 1.375 inches.
Return Busbar
(not included with List AP)
-48 VDC Load
Connections
