Vertiv™ NetSure™ Control Unit (NCU) Controller 2nd Ethernet Port Add-On Kit Installation Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
1
1 Vertiv™ NetSure™ Control Unit (NCU) Controller 2nd
Ethernet Port Retrofit Kit
1.1 Kit Description
These instructions provide a step-by-step procedure to field install this kit into Power System Spec. No. 582127000 and 581127000.
Installation of this kit in other equipment should not be attempted.
This kit provides the IB4 board with a second Ethernet port. The Ethernet port located on the NCU Controller’s front panel can be
used to connect a computer directly to the NCU. The Ethernet port located on the IB4 board can be used to connect the NCU
Controller to your Local Area Network (LAN).
There are two kits available. One to add the IB4 board to a newer style main bay that provides an NCU Controller motherboard
connector for an IB4 board cable and the other for an older style main bay that does not have this NCU Controller motherboard
connector. THIS KIT IS FOR A MAIN BAY THAT HAS AN IB4 BOARD CONNECTOR LOCATED ON THE NCU MOTHERBOARD. See
Figure 1.1 for identification.

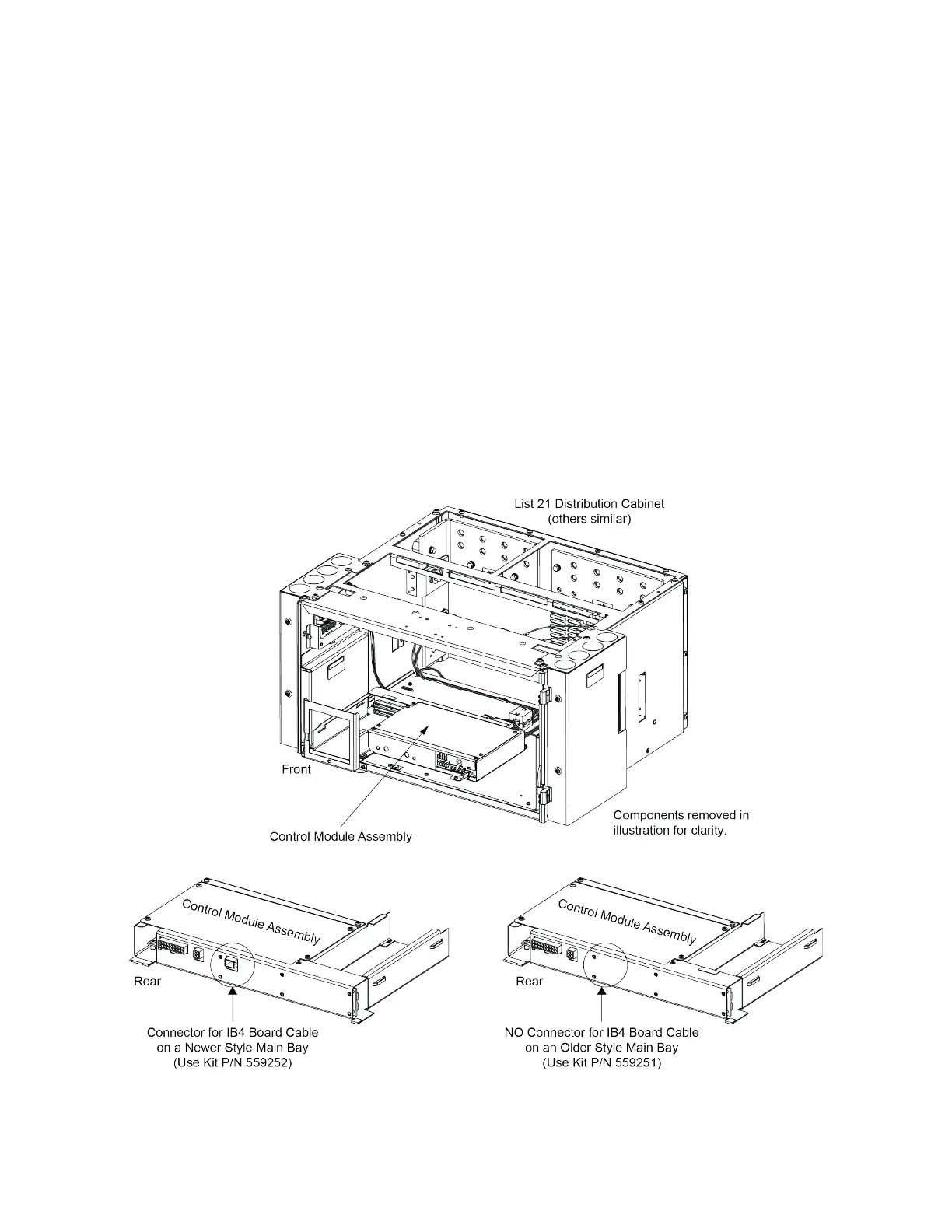

Figure 1.1 Identifying Control Module Assembly IB4 Board Connector
