46
Vertiv I VRC Self-Contained System I User Manual

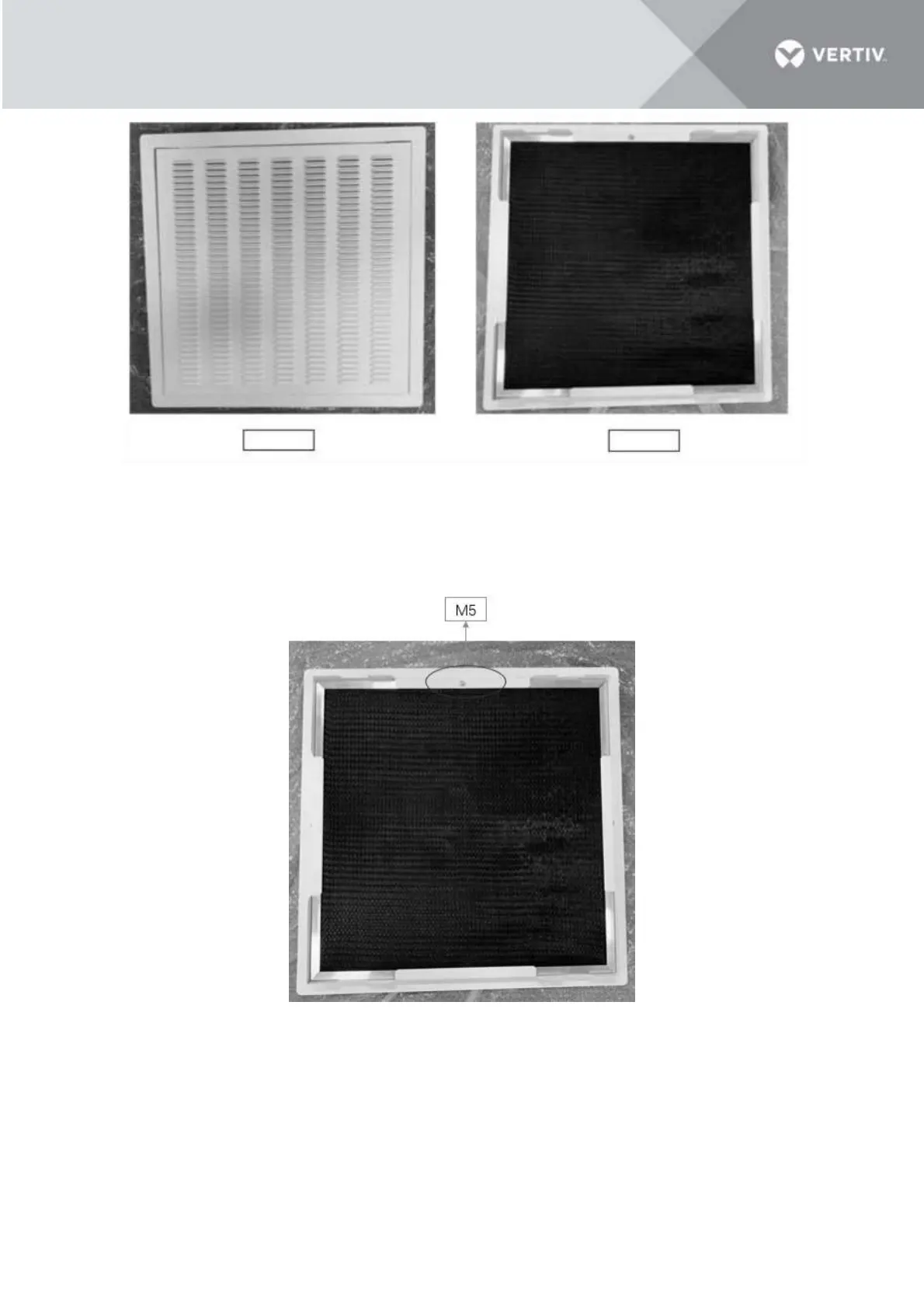

Figure 7-5 Ceiling tile for filter pad
Uninstalling the ceiling tile filter.
The ceiling tile filter pad consists of 3 parts, 2 sheet metals and 1 ceiling tile filter. The ceiling tile filter is
fixed by 2 sheet metals. Loose the M5 screw, the filter can be uninstalled.
Figure 7-6 Loose the M5 screw
Front
Rear
